Star 37998870 Receipt Printer

Part Number: 37998870
Model: TSP1000
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Receipt Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
7.09 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Direct thermal, 80mm, 203 dpi, Ethernet Interface. Color: Putty. Order interface cable and power supply (Part# 30781753) separately. See accessories. Also known as TSP1043L-24.
Explore all Star TSP1000 Receipt Printers
Add to Quote
Star 37998870 Receipt Printer
Star 37998870 Receipt Printer
Star 37998870 Receipt Printer Star 37998870 Receipt Printer
Full specifications (PDF)

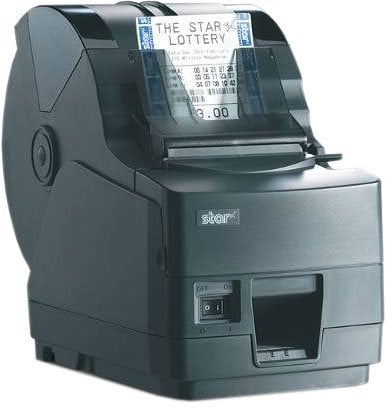

Star TSP1000 Receipt Printer Model Overview

The TSP1000 High Capacity Direct Thermal Printer from Star Micronics is designed to meet the demands of high-volume printing environments. Featuring the ability to accommodate a 7” diameter paper roll, this printer ensures efficient batch printing with its integrated ticket/document stacker, capable of holding up to 30 tickets at once. With a blazing print speed of 180 mm per second and a crisp 203 dpi resolution, it produces high-quality prints with 2D barcode support, making it ideal for various applications. Maximize productivity and minimize clutter with the TSP1000, your reliable printing solution.
Key features:
  • High capacity for 7" paper rolls
  • Fast print speed of 180 mm/s
  • 203 dpi print resolution
  • Automatic ticket/document stacker
  • Supports multiple barcode formats
  • Designed for easy drop-in paper loading

Specifications:
  • Resolution: 203 dpi (8 dots/mm)
  • Print Speed: 180 mm/s
  • Printable Area: 80 mm (max)
  • Printable Width: 0 mm (left or right)
  • Paper Specifications:
    • Paper Width: 45-82.5 mm (variable)
    • Paper Thickness: 65-150 μm
    • Outer Diameter: 180 mm (max)
    • Paper Loading: Drop-in & Print
  • Sensors: Paper Out, Paper Low, Black Mark, Cover Open
  • Cutter Type: Guillotine
  • Cutter Life: 1 Million Cuts
  • Stacker Capacity: 30 Sheets
  • Power Requirement: 24V DC (Option PS60L-24 A Power Supply)
  • Interface (Cartridge Type): Serial (RS232C), Parallel (IEEE1284), USB2.0 (Full Speed), Ethernet 10Base-T
  • Supported Barcodes: Code39, Code93, Code 128, JAN/EAN8, JAN/EAN13, ITF, NW7, PDF417
  • Drivers: Windows, OPOS, JavaPOS, Linux, Mac OS X
Star 37998870 Receipt Printer Overview

With a large paper roll capacity, high-speed printing, and ticket stacker, the TSP1000 high-volume event printer is perfect for lottery ticket printing, airline ticketing, event ticket printing, industrial kitchens, bars, libraries, and more.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.09 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
3.15"
Application/Usage:
  • Desktop
  • Industrial
Memory
Standard Memory:
2 MB
Memory Technology:
SRAM
Flash Memory:
16 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
Thermal Paper
Media Sensor:
  • Out Of Paper Sensor
  • Reflective Media Sensor
Media Thickness:
5.91 mil
Maximum Roll Diameter:
7"
Maximum Label Width:
3.15"
Fonts & Emulation
Language Emulation:
  • Star Page Mode
  • ESC/POS
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Product Color:
Putty
Height:
9.8"
Width:
6.3"
Depth:
12.1"
Miscellaneous
Additional Information:
  • Ticket Stacker: 30 Receipts or Tickets Maximum with Ticket Sensor
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0088047294378
UPC: 088047294378
EAN: 0088047294378
UNSPSC: 45101512
