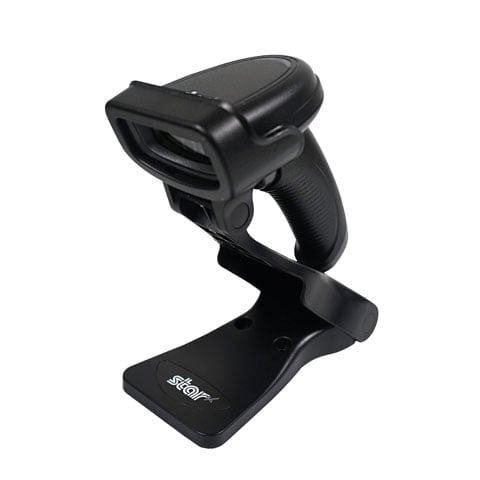

Star BSH-20B – Barcode Scanner

Part Number: 37950950

Model: BSH-20B

$222.93

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Connectivity Technology

Cable/Wireless

Scanning Capability

1D2D

Barcode Symbology Supported

2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.

Image Sensor Type

ImagerCMOS

Product Description:

Barcode Scanner, Star BSH-20B, Scanner, Handheld, 1D/2D Imager, Battery Powered, Bluetooth 5.0, White, Includes Stand and USB Charging Cable

Explore all Star BSH-20B Barcode Scanners

Add to Quote

Overview

Full specifications (PDF)

Star BSH-20B Barcode Scanner Model Overview

The BSH-20B Wireless Handheld Barcode Scanner by Star Micronics seamlessly integrates style and performance, delivering superior barcode scanning capabilities. Designed for various applications, including inventory management and office automation, this scanner utilizes advanced Bluetooth 5.0 technology for a reliable wireless connection and features a robust battery life of up to 12 hours, ensuring uninterrupted productivity. Its durable construction and IP42 rating guarantee resilience against daily wear and tear, making it a reliable companion for any business setting.

Key Features:

High-Performance: Captures high-density, high-volume, and distorted barcodes effortlessly.
Long Battery Life: Up to 12 hours of continuous operation with one scan every six seconds.
Two Forms of Communication: Bluetooth low energy (BLE) or USB dongle connectivity.
Durable Construction: IP42-rated and drop-resistant up to 1.2m.
Healthcare Ready: Washable with common disinfectants, suitable for healthcare environments.

Specifications:

Type: Wireless Barcode Scanner
Sealing: IP42
Image Sensor: 640 x 480 CMOS
Color: Black or White
Resolution: ≥3mil
Symbologies - 2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc.
Symbologies - 1D: EAN-13, UPC, Code 128, etc.
Connectivity/Interface: RS-232, USB
Dimensions: 83(W)x80(D)x148(H)mm
Weight: 297g
Drop Resistance: 1.2m drops to concrete
Warranty: 1 Year

Star 37950950 Barcode Scanner Overview

A global provider of complete POS hardware solutions, Star Micronics is proud to offer the BSH-20B wireless 2D handheld barcode scanner with a stylish design, long battery life, and reliable wireless transmission.

Equipped with a high-powered CPU, this wireless scanner effortlessly captures high-density, high-volume, and distorted barcodes printed on paper, uneven media, or displayed onscreen.

Made to last, it features a 2200mAh battery, allowing up to 12 hours of continuous use. The included USB cable allows for convenient charging, as well.

With the latest Bluetooth 5.0 technology, the BSH-20B scanner effortlessly maintains a reliable wireless connection to transmit data, with communication distances up to 50m. It can also connect to the host device via a USB dongle.

Durable inside and out, the scanner features an IP42- rated design and a drop-resistant (1.2m) housing with no moving parts.

The BSH-20B wireless scanner is ideal for purchase/sales/ inventory management, ticket/voucher management, and office automation.

It's available in shiny black or crisp white and is Starbranded with the superior quality expected from a POS industry leader

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable/Wireless

Scanning Capability:

Barcode Symbology Supported:

2D:

PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec

1D:

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.

Image Sensor Type:

Imager
CMOS

Scan Mode:

Trigger

Scanning Distance:

8.27"

Features:

Ergonomic Design
Data Parser
Notification LED

Cable Type Included:

USB

Stand Included:

Yes

Field of View (Horizontal):

51°

Field of View (Vertical):

32°

Reading Angle (Skew):

45°

Reading Angle (Pitch):

50°

Reading Angle (Roll):

360°

Motion Tolerance:

98.43 in/s

Drop Specification:

1.2m drops to concrete (for six sides, one drop per side)

Minimum Print Contrast:

25%

Image Sensor Resolution:

640 x 480

Illumination Type:

LED

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

USB
Serial

Battery Information

Battery Capacity:

2200 mAh

Maximum Battery Run Time:

12 Hour

Physical Characteristics

Form Factor:

Handheld

Color Family:

White

Product Color:

White

Durability:

Drop Resistant

Height:

5.8"

Width:

3.3"

Depth:

3.1"

Weight (Approximate):

10.48 oz

Miscellaneous

Package Contents:

BSH-20B WHT Barcode Scanner
Stand
USB Charging Cable

Compatibility:

Star Micronics:

mC-Print
mPOP

Ingress Protection (IP) Rating:

IP42

Application/Usage:

Field Sales/Service
Industrial
Ticketing

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0088047275131

UPC: 088047275131

EAN: 0088047275131

UNSPSC: 43211701

Reviews

Service Contracts

FAQs

Frequently Asked Questions

What barcode types does the Star BSH-20B scanner support?

The BSH-20B supports a wide range of symbologies including 1D barcodes (UPC, EAN, Code 128) and 2D barcodes (QR Codes, Data Matrix, Aztec). This versatility makes it suitable for diverse applications across retail, healthcare, event management, and office automation. We offer this scanner to handle both high-density and distorted barcodes on various surfaces, including paper, uneven media, and digital displays.

How long does the battery last on the Star BSH-20B?

The BSH-20B includes a 2200mAh battery that provides up to 12 hours of continuous operation when scanning one barcode every six seconds. The battery is rechargeable via the included USB cable, ensuring minimal downtime in your warehouse or retail environment. Contact us today to discuss battery management solutions for your scanning operations.

What is the wireless range of the BSH-20B barcode scanner?

The BSH-20B features Bluetooth 5.0 technology that provides reliable wireless connections up to 50 meters, allowing flexibility in your scanning workflow. It also comes with a USB dongle for plug-and-play compatibility with host devices. Visit barcodesinc.com to explore connectivity options that best fit your facility layout.

Is the Star BSH-20B suitable for healthcare environments?

Yes, the white variant of the BSH-20B features a washable antimicrobial housing, making it ideal for maintaining hygiene protocols in healthcare and other clean environments. The scanner's durable design with no moving parts ensures long-term reliability even with frequent sanitization. We offer this model specifically for healthcare facilities and other settings where infection control is critical.

How durable is the Star BSH-20B in harsh warehouse conditions?

The BSH-20B is built to withstand tough environments with an IP42 rating and resistance to 1.2-meter drops to concrete on all six sides. Its rugged construction with no moving parts ensures long-term reliability in demanding warehouse and logistics settings. Available from us with a scanner stand included for convenient stationary use.

What are the scanning depth specifications for the Star BSH-20B?

The BSH-20B offers exceptional depth of field capabilities with an EAN-13 scanning range of 10–210 mm and QR Code scanning range of 10–180 mm. It features a motion tolerance of 2.5 m/s for quick and efficient scanning across various distances. Contact us today to ensure this scanner meets your specific scanning distance requirements.

The Star 37950950 Barcode Scanner is also known as STA-37950950 or 37950950.
