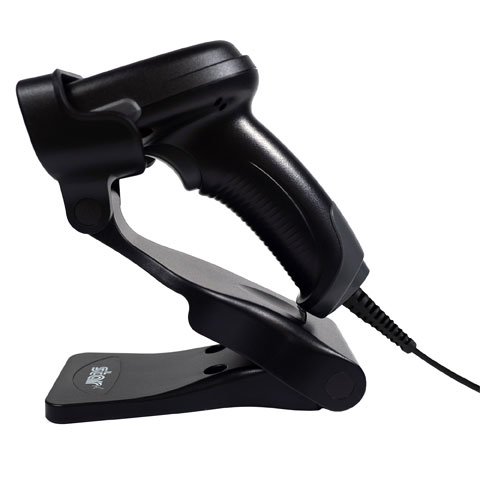

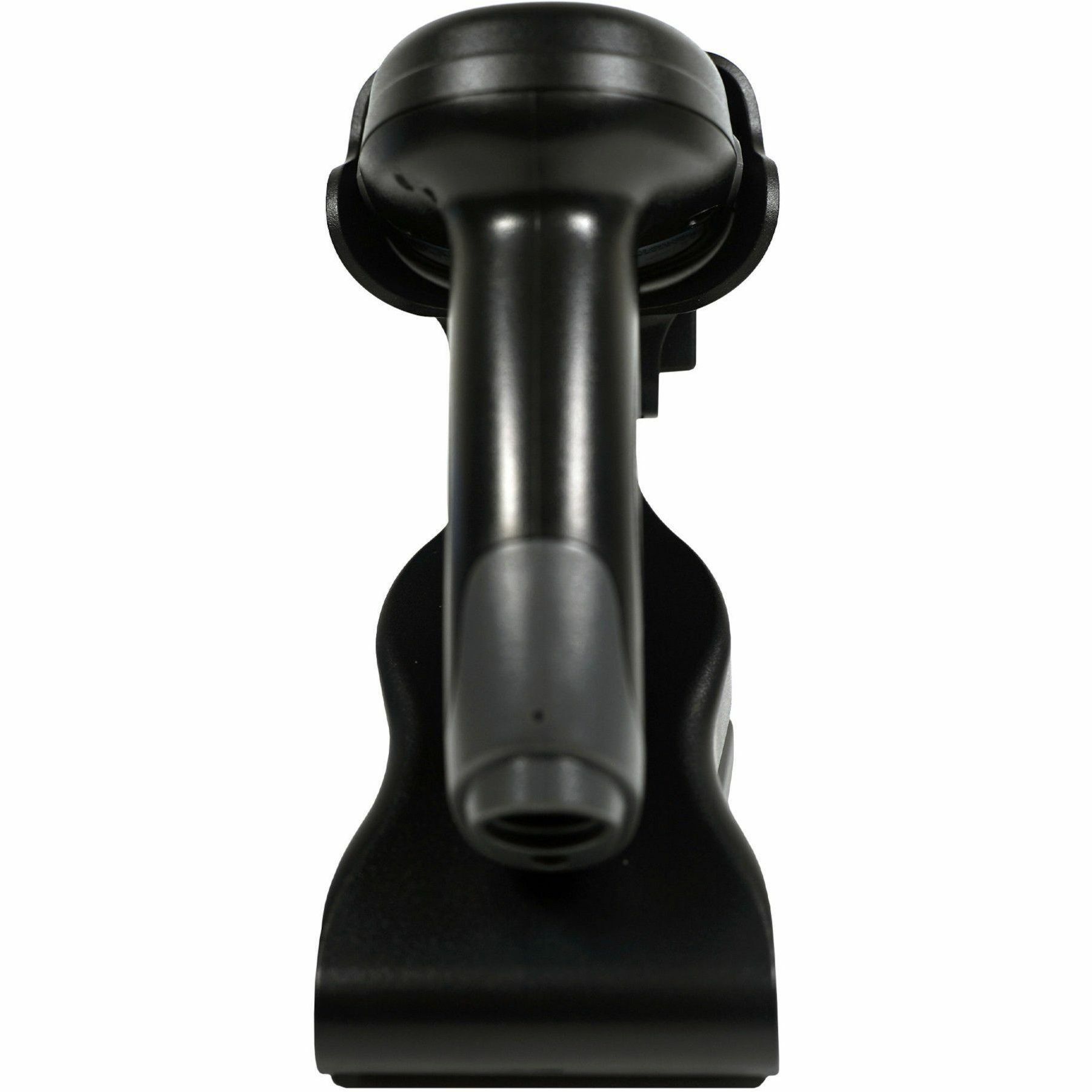

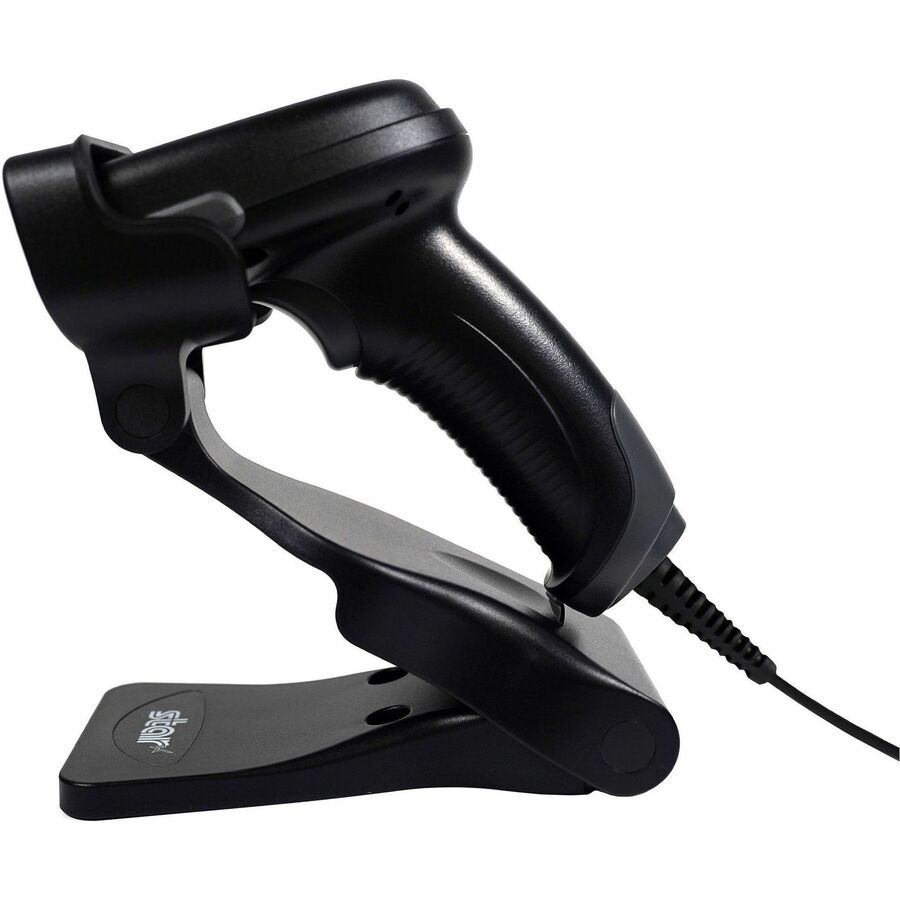

Star BSH-20U – Barcode Scanner – Corded – 1D, 2D

Part Number: 37950920

Model: BSH-20U

3-year Premium Plus ($54.70)

No, stay at premium support package

$140.12

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Connectivity

Corded

Form Factor

Handheld

Interface Options

USB

Scanner Capability

1D, 2D

Product Description:

Barcode Scanner, Star BSH-20U, Scanner, Handheld, 1D/2D Imager, USB Cable, Black, Includes Stand, mC-Print and mPOP Compatible, 2 year warranty included

Explore all Star BSH-20U Barcode Scanners

Add to Quote

Overview

Full specifications (PDF)

Star BSH-20U Barcode Scanner Model Overview

Elevate your business efficiency with the BSH-20U Handheld Barcode Scanner from Star Micronics. This high-performance 1D/2D barcode scanner combines reliability, accuracy, and affordability, making it an essential tool for any retail or hospitality environment. With its advanced CPU, the BSH-20U seamlessly captures a variety of barcodes, including high-density, distorted, and digital formats. Its durable IP42-rated construction ensures resistance against dust and moisture, while its stylish, ergonomic design is available in sleek black or crisp white, perfect for modern point-of-sale setups. Enjoy peace of mind with a standard 2-year warranty and robust customer support.

Key Features

High-Performance: Equipped with a powerful CPU for capturing high-density and distorted barcodes.
Durable Construction: IP42-rated design, resistant to dust and moisture; drop-resistant up to 1.2m.
Stylish Design: Modern aesthetic available in shiny black or crisp white.
Cost-Efficient: Offers 2D scanning capabilities at the price of a 1D scanner.
User-Friendly: Easily plugs directly into Star's mCollection products.
Star-Branded: Guaranteed superior quality and reliability.

Specifications

Type: Wired Barcode Scanner
Sealing: IP42
Image Sensor: 640x480 CMOS
Color: Black or White
Resolution: ≥3mil
Symbologies - 2D: PDF417, QR Code, Data Matrix, and more.
Symbologies - 1D: Code 128, UPC-A, EAN-13, and others.
Connectivity/Interface: RS-232, USB
Dimensions: 146×103×69 mm | Weight: 125g
Typical Depth of Field: EAN-13: 50 mm-260 mm (13 mil)
Scan Angle: Pitch: ±55°, Skew: ±55°, Roll: 360°
Field of View: Horizontal 45°, Vertical 34°
Drop Resistance: 1.2m
Warranty: 2 Year

Star 37950920 Barcode Scanner Overview

Handheld USB Barcode Scanner

The BSH-20U is a versatile, cost-effective 1D/2D handheld USB barcode scanner equipped with a high-performance CPU. It excels in scanning high-density, high-volume, and distorted barcodes on various surfaces, including paper, uneven media, or digital displays. Designed for durability, it features an IP42-rated construction and drop-resistant housing, ensuring resilience in active business settings. It's ideal for a range of markets like retail, hospitality, and the healthcare sector and is compatible with any POS system. It supports easy plug-and-play functionality with iOS, Android, and Windows devices. For businesses seeking advanced scanning capabilities, the BSH-20U is the efficient, reliable, and economical choice.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec

1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS)

Light Source:

LED

Image Sensor Type:

CMOS

Scan Mode:

Trigger

Depth of Field:

EAN-13: 50 mm-260 mm (13 mil)
Code39: 50 mm-115 mm (5 mil)
PDF417: 50 mm-120 mm (6.7 mil)
Data Matrix: 35 mm-125 mm (10 mil)
QR Code: 30 mm-170 mm (15 mil)

Scanning Distance:

10.24"

Features:

Beep
Notification LED

Field of View (Horizontal):

45°

Field of View (Vertical):

34°

Reading Angle (Skew):

55°

Reading Angle (Pitch):

55°

Reading Angle (Roll):

360°

Drop Specification:

1.2m drop Resistance

Minimum Print Contrast:

20%

Maximum Element Resolution (Code 39):

5 mil

Maximum Element Resolution (DataMatrix):

10 mil

Maximum Element Resolution (PDF417):

6.7 mil

Image Sensor Resolution:

640 x 480

Illumination Type:

LED

Illumination Color:

White

Air Electrostatic Discharge (+/-):

15kV

Contact Electrostatic Discharge (+/-):

8kV

Interfaces/Ports

Host Interface:

USB
Serial

Environmental Conditions

Operating Temperature:

-4°F (-20°C) to 140°F (60°C)

Storage Temperature:

-40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing):

5% to 95%

Physical Characteristics

Form Factor:

Handheld

Color Family:

Black

Product Color:

Black

Height:

2.7"

Width:

4.1"

Length:

5.7"

Weight (Approximate):

4.41 oz

Miscellaneous

Package Contents:

BSH-20U Handheld Wired USB 1D/2D Barcode Scanner
stand

Compatibility:

Star Micronics:

POS system
mC-Print2/3 Credit Card Receipt Printer
mPOP Receipt Printer and Cash Drawer Combo

Ingress Protection (IP) Rating:

IP42

Application/Usage:

Retail
Hospitality
Healthcare

Platform Supported:

iOS
Android

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0088047275100, 4951319275107

UPC: 088047275100

EAN: 0088047275100, 4951319275107

UNSPSC: 43211701

Reviews

FAQs

Frequently Asked Questions

What scanners are compatible with the Star BSH-20U?

The BSH-20U offers universal compatibility and supports most Star and third-party handheld barcode scanners. It can be directly plugged into any POS system, including Star's mCollection® products like the mC-Print2/3 and mPOP®, making integration straightforward across your existing setup.

Is the Star BSH-20U suitable for warehouse and high-volume environments?

Yes, the BSH-20U is specifically built for reliable performance in high-volume retail, warehouse, and office settings. Its robust construction and weighted base are designed for frequent commercial use, preventing unwanted movement or tipping even during busy shifts.

How does the gooseneck design benefit barcode scanning operations?

The flexible gooseneck design allows you to easily adjust the scanner to multiple angles for optimal positioning at checkout counters or workstations. This hands-free operation capability enables faster, more efficient barcode scanning while reducing strain on employees during extended use.

What is included with the Star BSH-20U purchase?

The Star BSH-20U comes with a scanner stand included and features a 2-year warranty. The package is ready for immediate deployment in retail, hospitality, inventory management, and online ordering environments.

Can the BSH-20U handle high-density and distorted barcodes?

Yes, the BSH-20U features high-performance 2D scanning capabilities with a powerful CPU that captures high-density, high-volume, and distorted barcodes on both paper and screen. This delivers 2D scanning functionality at a cost-efficient price point.

What durability standards does the Star BSH-20U meet?

The BSH-20U features an IP42-rated design and is drop-resistant from 1.2 meters, ensuring durability in demanding commercial environments. Its sleek, ergonomic design is available in shiny black or crisp white to match modern point-of-sale aesthetics while maintaining robust construction for frequent use.

The Star 37950920 Barcode Scanner is also known as STA-37950920 or 37950920.
