Speco D4WCS1TB Surveillance DVR

The Speco D4WCS1TB Surveillance DVR has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Speco - Speco D4WCS1TB Digital Video Recorder - 1 TB HDD - H.264, CIF - Ethernet - VGA - USB
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Speco Parts Accessory Model Overview
Products and parts from Speco-Technologies.
Speco D4WCS1TB Surveillance DVR Overview

Speco Technologies' wall mount DVRs are multi-channel H.264 networkable, covert digital video recorders developed for applications that need to be within specific budget guidelines without giving up desirable features.

For years, covert video meant hiding surveillance cameras from potential criminals. Speco Technologies developed a different concept - hide the video recorder instead. Let the cameras be visible as a deterrent to crime.

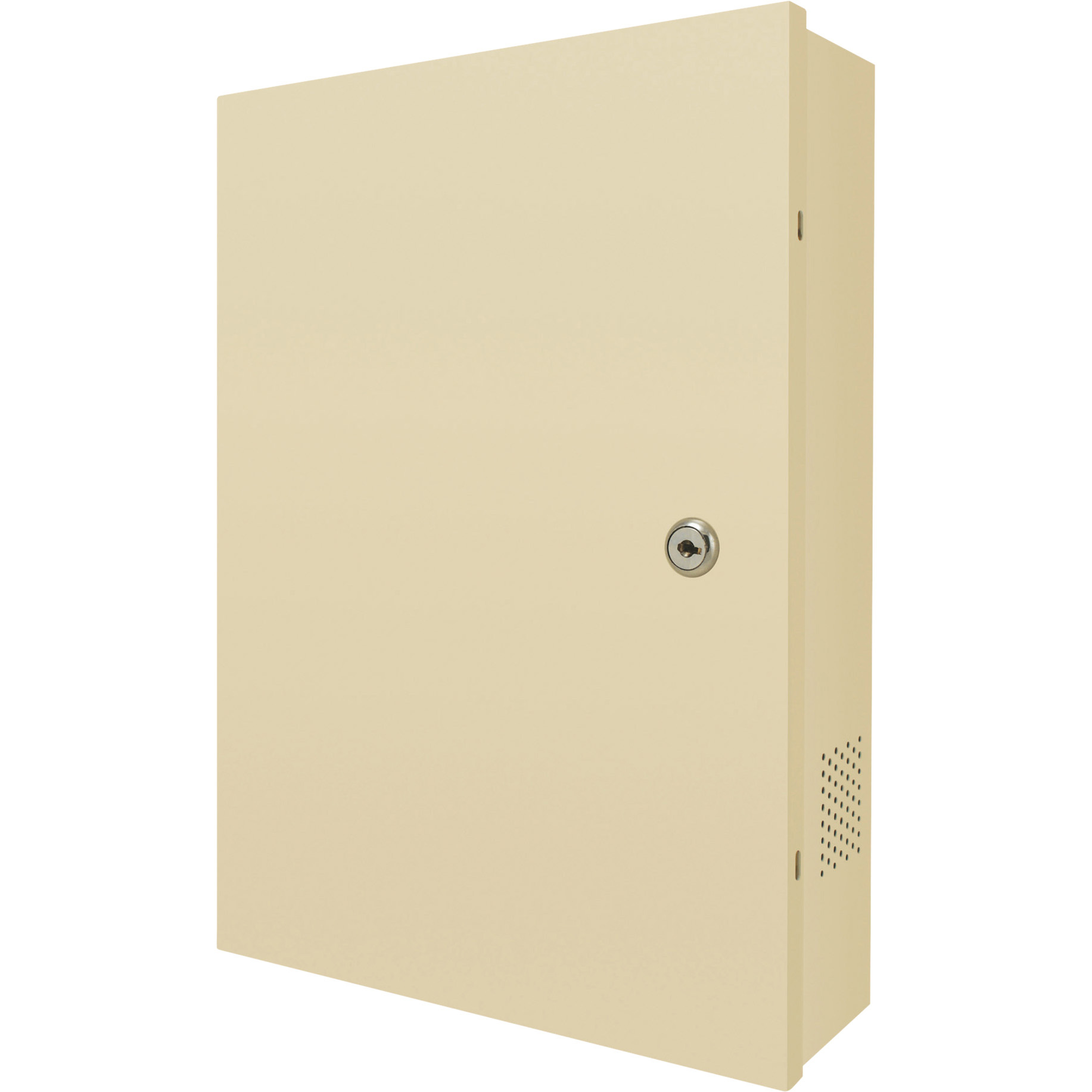

This series of wall mounted DVRs looks like a normal burglar alarm or electrical panel hanging on the wall in a utility area, but inside is the heart of a powerful H.264, networkable video surveillance DVR.

Technical Information
Number of Channels:
4
Recording Modes:
  • Panic
  • Text-in
  • Motion Detection
  • Time Schedule
  • Event
  • Pre-event
  • Continuous
  • Sensor
  • Manual
Storage
Hard Drive Capacity:
1 TB
Video
Maximum Frame Rate:
120 fps
Maximum Video Resolution:
720 x 480
Video Formats:
  • H.264
  • CIF
Picture Control:
Zoom
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
VGA:
Yes
Number of VGA Outputs:
1
Network (RJ-45):
Yes
USB:
Yes
USB Standard:
USB 2.0
Audio Line In:
Yes
Number of Analog Audio Inputs:
4
Audio Line Out:
Yes
Number of Analog Audio Outputs:
1
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
15"
Width:
11.5"
Depth:
3.5"
Weight (Approximate):
8.50 lb
Miscellaneous
Package Contents:
  • H.264 4 Channel Covert DVR with Digital Deterrent
  • Software Media
  • IR Remote Control
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 52161545
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Speco D4WCS1TB Surveillance DVR is also known as SPC-D4WCS1TB
