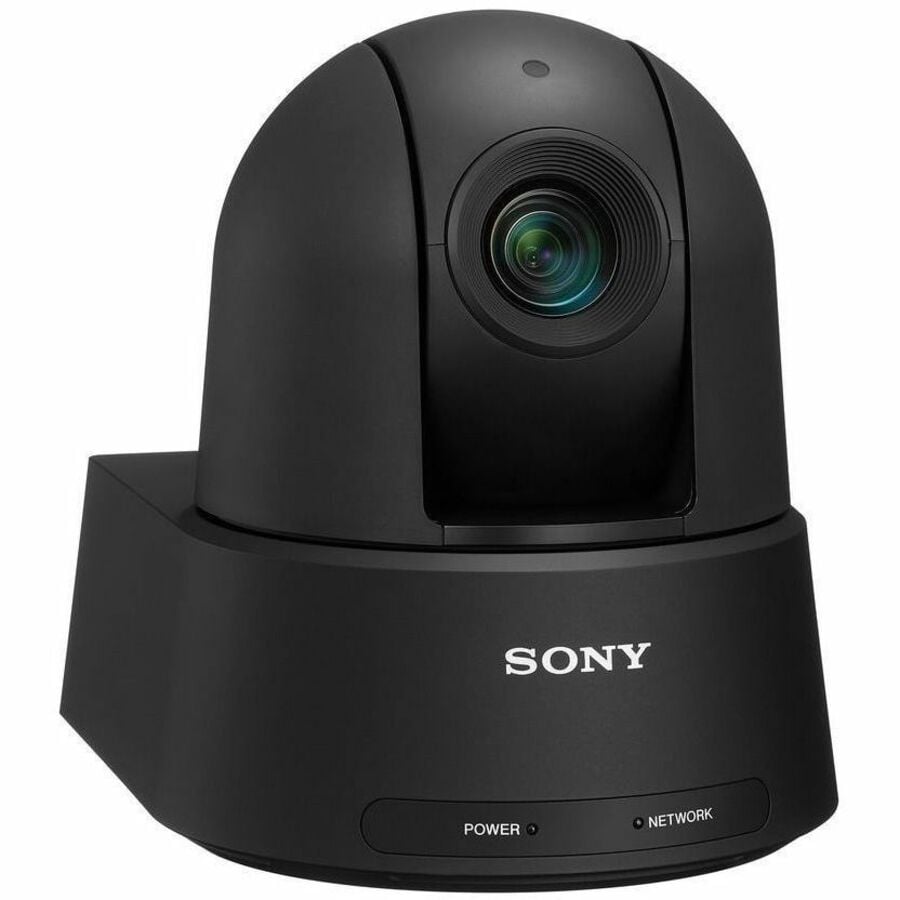

Sony Electronics SRGA40 Security Camera

Part Number: SRGA40
Model: Parts
$4,414.25

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
4K
HD Recording
Yes
Image Sensor Type
Exmor R CMOS
Image Sensor Size
1/2.5"

Product Description:

  Security Camera, Sony SRG-A Series, 4K PTZ Network Camera with Built-In AI Auto Framing, Exmor R CMOS Sensor, Up to 3840 × 2160 Resolution, 20x Optical Zoom (with Clear Image Zoom), Black

Sony Electronics Parts Accessory Model Overview

Products and parts from Sony-Electronics.
Sony Electronics SRGA40 Security Camera Overview
A Camera that Automatically and Naturally Shoots Video for you

With the advanced PTZ Auto Framing feature, the camera automatically tracks the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement, regardless of posture, movement and what one is wearing.

Since the camera does most of the work automatically, the operator can spend their time efficiently.


PTZ Auto Framing with built-in AI analytics

This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera's pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.



Automatically and reliably shoots video for you

With Sony's newly developed AI analytics algorithm, it detects and tracks the subject, even when there are several people in the frame.

Choice of three shooting modes

The camera has a choice of three shooting modes; Full body, Waist, and Close-up. In each mode, you can select the center, left, or right angle of view, and the SRG-A40 and SRG-A12 can automatically track the subject in the selected optimal position.


Full Body


Waist


Close-up Integrated tally lamp

The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you'd find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp color will change from Red (On Air) to Green (PTZ Auto Framing ON).



Key Features


High speed pan/tilt

Speedy, precise pan/tilt operation ensures that the camera can accurately keep track of the presenter's movements.


Wide angle zoom lens

As well as powerful close-ups, the camera can capture broad shots of the presenter or audience with a wide field of view.


Clear Zoom

Clear Image Zoom technology increase maximum magnification to a huge 40x (SRG-A40) or 24x (SRG-A12) for frame-filling close-ups without reducing resolution.


4K Exmor R sensor

The highly sensitive 1 /2.5-type image sensor captures crisply-detailed 4K video with extremely low picture noise, even when shooting in low light.



Preset camera positions

Store and instantly recall up to 256 preset camera positions.


Picture Freeze Preset

The camera can output high-quality still images simultaneously while streaming 4K video.


AF, AE and AWB

Auto Focus, Auto Exposure and Auto White Balance ensure professional-looking results without manual exposure adjustments.


PTZ Motion Sync

Pan, tilt and zoom movements transition smoothly between preset camera positions.

Simple, flexible set-up


IP streaming

Stream 4K 30p video from the camera with support for popular IP protocols - ideal for live events and webcasts.


PoE++ support

Power can be supplied to the camera via PoE++ even when using the PTZ Auto Framing feature, allowing for subject tracking operation.


HDMI/SDI outputs

As well as live streaming over IP, the camera can simultaneously output video via HDMI and SDI for conventional production.


Technical Information
Recording Formats:
4K
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
Exmor R CMOS
Image Sensor Size:
1/2.5"
Color Supported:
Color
Field of View:
70.0 degree (Wide)
Effective Camera Resolution:
8.5 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • H.264 (MP)
  • H.264 BP
  • H.264 HP
  • H.265M
Maximum Video Resolution:
3840 x 2160
Maximum Frame Rate:
60 fps
Horizontal Resolution:
1700 TVL
Analog Video Signal Format:
3G-SDI
Lens
Lens Type:
Fixed
Minimum Focal Length:
4.40 mm
Maximum Focal Length:
88 mm
Lens Included:
Yes
Minimum Aperture:
f/3.8
Maximum Aperture:
f/2.0
Optical Zoom:
20x
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/1 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Fast Ethernet
Remote Management:
Yes
Interfaces/Ports
HDMI:
Yes
Network (RJ-45):
Yes
Power Description
Input Voltage:
19.5 V DC
Power Source Type:
  • DC
  • PoE
Physical Characteristics
Mount Type:
Ceiling Mount
Color Family:
Black
Product Color:
Black
Height:
7.2"
Width:
6.2"
Depth:
7.9"
Weight (Approximate):
4.41 lb
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Miscellaneous
Features:
  • PTZ
  • Automatic White Balance
  • Auto Gain Control
  • Day/Night
  • Built-in OSD Function
Package Contents:
  • SRGA40 Network Camera
  • 1 x AC power adaptor
  • 1 x IR Remote Commander Unit
  • 2 x Ceiling bracket
  • 1 x Wire rope
  • 9 x Screw M3 x8
  • 1 x Screw M2.6 x6 BLACK
  • 1 x HDMI cable fixing plate
  • 1 x Safety regulation
  • 1 x Download site information
  • 1 x Warranty
Country of Origin:
Thailand
Item Numbers
GTIN: 0027242925571
UPC: 027242925571
EAN: 0027242925571
UNSPSC: 46171610
