Sony EVIH100S Security Camera

Part Number: EVIH100S
Model:
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
Exmor CMOS
Image Sensor Size
1/2.8"
White Balance Modes
AutoOne PushOutdoorIndoorManual
Maximum Illumination
0.5 lux

Product Description:

  Sony EVI-H100S HD Surveillance Camera - 20x Optical - Exmor CMOS
Explore all Sony Parts Products
Add to Quote
Sony EVIH100S Security Camera
Sony EVIH100S Security Camera
Sony EVIH100S Security Camera
Sony EVIH100S Security Camera Sony EVIH100S Security Camera Sony EVIH100S Security Camera

Sony Parts Products Model Overview

Products and parts from Sony.
Sony EVIH100S Security Camera Overview

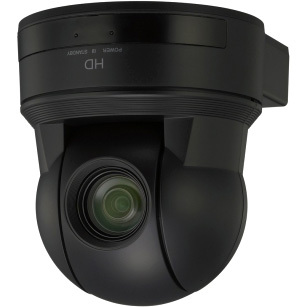

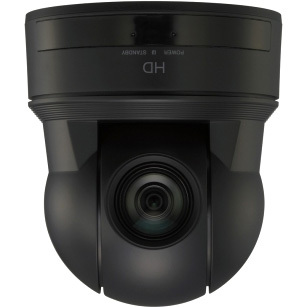

The EVI-H100S is one of the newest additions to the EVI PTZ HD camera lineup. Featuring full 1080/20 HD resolution with a 1/2.8-type Exmor™ CMOS sensor, this dynamic new camera is a smart-looking addition to Sony's feature-rich EVI HD camera lineup. Ceiling mountable and also available in white, this camera offers a multitide of options in remote-monitoring, videoconferencing, distance learning and house of worship applications.

Display & Graphics
Image Sensor Type:
Exmor CMOS
Image Sensor Size:
1/2.8"
White Balance Modes:
  • Auto
  • One Push
  • Outdoor
  • Indoor
  • Manual
Maximum Illumination:
0.5 lux
Color Supported:
Color
Tilt:
90° to -20°
Swivel:
-170° to 170°
Field of View:
55.4° to 2.9°
Video
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.70 mm
Maximum Focal Length:
94 mm
Lens Included:
Yes
Minimum Aperture:
f/1.6
Maximum Aperture:
f/3.5
Optical Zoom:
20x
Digital Zoom:
12x
Focus Modes:
  • Automatic
  • One-push Auto
  • Manual
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1 Second
Exposure Control:
  • Auto
  • Manual
Network & Communication
Connectivity Technology:
Wired
Power Description
Maximum Power Consumption:
12 W
Physical Characteristics
Color:
Black
Height:
6.5"
Width:
5.7"
Depth:
6.5"
Weight (Approximate):
3.42 lb
Miscellaneous
Package Contents:
  • EVI-H100S HD P/T/Z Camera
  • AC Adaptor
  • AC Power Cable
  • IR Remote Commander Unit
  • Ceiling Bracket
  • RS-422 Connector Plug
  • Operating Instructions
Compatibility:
  • NTSC
  • PAL
Item Numbers
UNSPSC: 46171610
