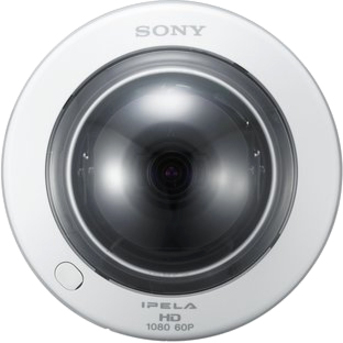

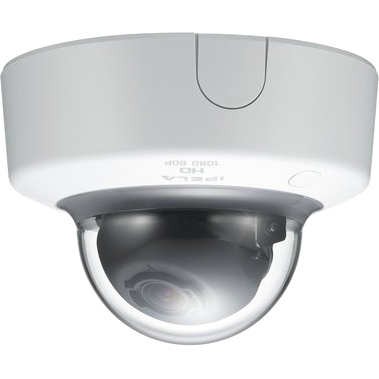

Sony Electronics SNCVM630 Security Camera

The Sony Electronics SNCVM630 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Sony Electronics Ipela EX - FHD Indoor MINI IPELA EX 1080P VIEW-DR DEPA EZ Zoom Focus POE
  • For remote surveillance needs, this network camera is best suited
  • Up to 1920 x 1080 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 9 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • f/2.1 maximum aperture for productive capturing according to focal length and lighting conditions
  • 3x optical zoom for desired image clarity and maximum capturing convenience
  • 2x digital zoom provides automatic magnification without compromising the image quality
  • JPEG image format for better reliance and maximum feasibility
  • Zoom lens type allows you to get a better, wide viewing angle, without compromising the quality of the image
  • Day/Night feature for maximum efficiency and convenience
Read More
Discontinued Need Assistance?
Add to Quote
Sony Electronics Ipela EX Security Camera Model Overview
The Sony-Electronics Ipela EX includes a full lineup of video encoders designed to meet various system requirements. There's a choice of 1-channel and 4-channel standalone models, as well as 1U and 3U Rack Stations that accept 4-channel blades, all of which can dual-stream H.264/JPEG, H.264/ MPEG-4, or MPEG-4/JPEG video at full 30/25 fps (NTSC/PAL) in up to D1 resolution. These video encoders not only convert analog video signals to a digital video stream for IP-based networks, but also improve the picture quality of the original signals with state-of-the-art image enhancing technology. What's more, the Ipela EX also incorporates advanced security features such as DEPA Advanced intelligent video and audio analytics. The Ipela EX is the ideal choice when migrating from an existing analog camera system to an IP-based monitoring system with intelligence technology, even in the most demanding application environments, such as education, transportation, factories, healthcare facilities, public venues, and airports.
Sony Electronics SNCVM630 Security Camera Overview
Mini Dome 1080p/60 fps Full HD Camera Powered by IPELA ENGINE EX Technology
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.9"
White Balance Modes:
  • ATW
  • ATW-PRO
Color Supported:
  • Color
  • Monochrome
Field of View:
20° to 105.2°
Effective Camera Resolution:
2.1 Megapixel
Video
Video Formats:
H.264
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Horizontal Resolution:
600 TVL
Video Signal Format:
NTSC
Audio
Audio Formats:
  • AAC
  • G.711
Image Formats:
JPEG
Lens
Lens Type:
Zoom
Minimum Focal Length:
3 mm
Maximum Focal Length:
9 mm
Lens Included:
Yes
Minimum Aperture:
f/1.2
Maximum Aperture:
f/2.1
Optical Zoom:
3x
Digital Zoom:
2x
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/1 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • 802.1X
  • IPv4
  • TCP
  • UDP
  • ARP
  • ICMP
  • IGMP
  • HTTP
  • DHCP
  • DNS
  • NTP
  • RTP/RTCP
  • RTSP
  • SMTP
  • IPv6
  • HTTPS
Interfaces/Ports
Analog Video Out:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Physical Characteristics
Form Factor:
Dome
Height:
4.3"
Diameter:
5.8"
Weight (Approximate):
11 oz
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
  • XDNR
  • Face Detection
  • Digital Image Stabilization
Package Contents:
  • Network Mini Dome Full HD Camera - V Series
  • CD-ROM (Supplied Programs)
  • Installation Manual
  • Template
  • Audio Cable
  • I/O Cable
  • BNC Cable
  • Power Input Cable
  • Screw M3
  • Bracket
  • Wire Rope
  • Safety Regulations
System Requirements:
  • Processor Intel Core i7 2.8 GHz or Higher
  • Memory 2 GB or more

Supported OS:

  • Windows XP (32 bit) Professional Edition
  • Windows Vista (32 bit) Ultimate, Business Edition
  • Windows 7 (32/64 bit) Ultimate, Professional Edition
  • Processor Intel Core i7 2.8 GHz or Higher
Web Browser:
  • Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0
  • Firefox® Ver. 3.5 (Plug-in free viewer only)
  • SafariVer. 4.0 (Plug-in free viewer only)
  • Google Chrome™ Ver. 4.0 (Plug-in free viewer only)
Certifications & Standards:
  • JATE Technical standard (LAN)
  • UL2044, IEC60950-1 (CB)
  • VCCI (Class A), FCC (Class A), IC (Class A)
  • Emission: EN55022 (Class A) + EN50130-4
  • Immunity: EN55022 (Class A) + EN55024
  • Emission: AS/NZS CISPR22 (Class A)
Platform Supported:
PC
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0027242277625, 0027242856028, 0616174222119, 4905524892222
UPC: 027242277625, 027242856028, 616174222119
EAN: 0027242277625, 0027242856028, 0616174222119, 4905524892222
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Sony Electronics SNCVM630 Security Camera is also known as SNY-SNCVM630
