SonicWall 01-SSC-5561

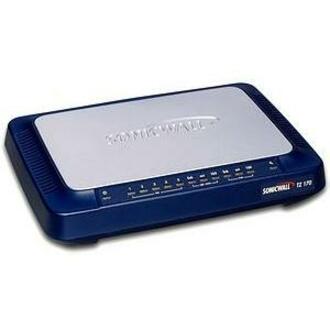

SonicWall TZ 170 - TZ 170 VPN/Firewall - 5 x 10/100Base-TX LAN, 1 x 10/100Base-TX WAN
  • Form a secured network by attaching multiple devices together or expand the amount of devices connected to your existing network by using 8 ports Firewall
  • With Ethernet connections, give your home or small office network speeds of up to 10Mbps per port
Read More

Full specifications (PDF)

Networking technology continues to advance at a rapid pace, making it difficult to keep up with the latest innovations. Providing rock-solid security is even more challenging, especially for small businesses and networks administrators with limited IT resources. Deploying and managing a complex network security product simply isn't an option. You need a reliable, flexible, easy-to-use solution that delivers business-class security at a price that won't break your budget. The SonicWALL TZ 170 is the ultimate total security platform for home, small, remote and branch office deployments. Available in multiple node configurations, the TZ 170 scales to protect your investment as your organization grows, allowing you to add features and functionality when your network needs them.
SonicWall 01-SSC-5561 Overview

The SonicWALL TZ 170, part of SonicWALL's TZ 170 Series, is the ultimate total security platform for home, small, remote and branch office deployments. With integrated support for SonicWALL's Gateway Anti-Virus, Anti-Spyware and Intrusion Prevention Service, the TZ 170 delivers real-time protection against viruses, spyware, worms, Trojans and other malicious threats. The TZ 170 also combines built-in anti-spam protection and support for SonicWALL's Content Filtering Service to provide enhanced productivity and network utilization. Available in multiple node configurations, the TZ 170 scales to protect your investment as your organization grows, allowing you to add features and functionality when your network needs them.

Protect Your Product

Full specifications (PDF)

Technical Information
Virtualization:
  • 6000 x Concurrent Connection
  • 10 x Site-to-Site VPN Policies
  • 10 x Site-to-Site VPN Tunnel
  • 1 x VPN Clients For Remote User
Firewall Protection Supported:
  • Antivirus
  • Anti-spyware
  • Intrusion Prevention
  • Content Filtering
  • Worm Scanning
  • Trojan Horse
  • Intrusion Protection
Encryption Standard:
  • 3DES
  • AES
Features:
PAT
Interfaces/Ports
Total Number of Ports:
8
Management Port:
Yes
Number of Network (RJ-45) Ports:
6
Network & Communication
Ethernet Technology:
Ethernet
Network Standard:
10/100Base-TX
Management & Protocols
Manageable:
Yes
Memory
Standard Memory:
64 MB
Flash Memory:
8 MB
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
0.1"
Width:
6.6"
Depth:
1.6"
Weight (Approximate):
1.15 lb
Miscellaneous
Package Contents:
  • TZ 170 VPN/Firewall
  • 30 days of Gateway Anti-Virus Service
  • 30 days of Anti-Spyware Service
  • 30 days of Intrusion Prevention Service
  • Content Filtering Service Premium Edition
  • Network Anti-Virus (10 user license)
  • ViewPoint
Additional Information:
  • Total Heat Dissipation: 36.1 BTU
  • Unrestricted Nodes Configuration
  • MTBF: 13.3 years
  • Certifications & Standards:
  • ICSA Firewall 4.1
  • ICSA IPSec VPN 1.0d
  • FIPS 140-2

    Regulatory Compliance:

  • FCC Class B
  • ICES Class B
  • CE
  • C-Tick
  • VCCI
  • BSMI
  • MIC
  • UL
  • cUL
  • TUV/GS
  • CB
  • NOM

    IEEE:

  • IEEE 802.3
  • IEEE 802.3u

  • Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    GTIN: 0758479055617
    UPC: 758479055617
    EAN: 0758479055617
    UNSPSC: 43222501


    The SonicWall 01-SSC-5561 is also known as SON-01SSC5561 or 01SSC5561 .
