Full specifications (PDF)
Media Supported:
Contactless
Socket Mobile TX3489-1984 Access Control Reader
Part Number:
TX3489-1984
Model:
S550 Contactless

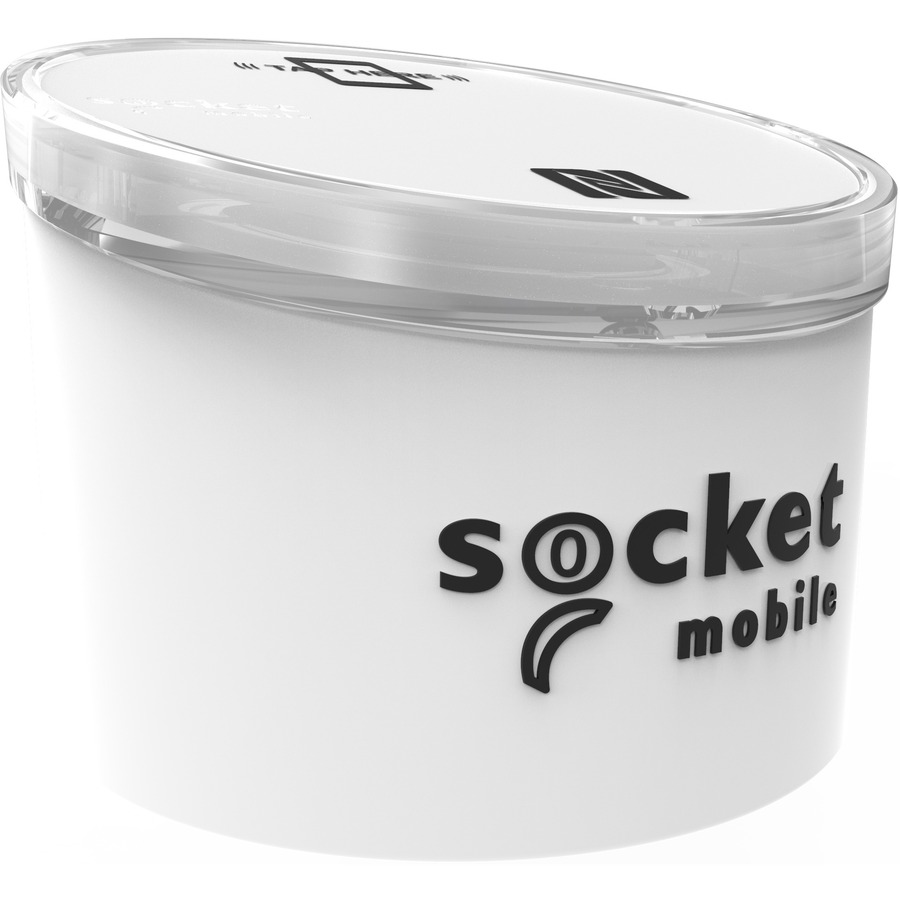

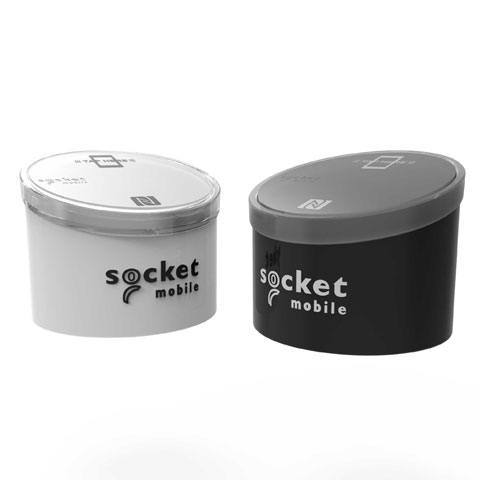

Socket Mobile S550 Contactless Access Control Reader Model Overview
The SocketScan S550 is a state-of-the-art contactless membership card reader/writer that streamlines smart card and NFC applications. Built with advanced 13.56 MHz technology and Bluetooth 5 connectivity, this compact device supports a variety of smart cards and NFC tags, making it suitable for hands-free verification, access control, and inventory tracking. With its rechargeable battery offering up to 16 hours of use, the S550 is portable and user-friendly, featuring intuitive LED indicators and melodies to keep users informed. Whether you're using iOS, Android, or Windows, integration is seamless thanks to extensive SDK support.
Key Features
Specifications
Key Features
- Multi-Platform Compatibility: Works with iOS, and Windows Bluetooth-enabled devices.
- Rechargeable Battery: Offers up to 16 hours of active use.
- Fast NFC & RFID Reader: Supports ISO 14443 and ISO 15693 smart card technologies.
- Intuitive User Feedback: LED indicators and melodic alerts for monitoring status.
- Various Bluetooth Modes: Includes HID Keyboard Emulation and custom App development mode.
Specifications
- Dimensions: 2(D) x 1.5(H) in (50.8 mm x 63.5 mm)
- Weight: 2.6 oz. (74g)
- Battery: 1000 mAh Lithium-Ion, Charge Time: 4 hours
- Bluetooth Version: 5, Range: Up to 100 m (330 ft)
- Operating Temperature: -20° to 50° C (-4° to 122° F)
- Reading Range: Maximum RFID Read Range: 0.4" to 2" (10-50 mm)
- Warranty: 1 Year Limited Warranty
Socket Mobile TX3489-1984 Access Control Reader Overview
The SocketScan S550, an NFC mobile wallet reader, is designed to facilitate tap-and-go mobile wallet, contactless card and NFC applications. It combines the latest 13.56 MHz contactless technology with Bluetooth LE connectivity.
Built for limited counter space and all-day reliability, we created the S550 to work with applications for loyalty, closed-loop payments, pop-up selling, events, ticket or ID verification, and other customer-related services. Together with an application, the S550 can automatically request the appropriate mobile pass from an iOS or Android host device for a franchise, store, venue, or event you are attending to ensure a fast and convenient end-user experience. The result is a simple user interaction and a high level of security by capturing a cryptographically generated payload from the mobile pass. The mobile pass then transmits the payload over secure Bluetooth to an iPad or other host device running a connected application.
The S550 is compact, portable and can run on battery or plugged into power. Convenient for use anytime, anywhere with applications running on Android, Apple iOS devices (iPad®, iPhone®, iPod touch®) and Windows. The S550 supports all NFC Forum tag types and devices compliant with the ISO 18092 standard, in addition to ISO 14443 Type A and B smart cards, ISO 15693 tags, MIFARE®, FeliCa®, NXP, and STMicro tags. It is NFC Forum, Apple Pay Value Added Service (VAS), Google Wallet, and Bluetooth SIG certified. It complies with both Apple and Google NFC protocols on iPhone and Android devices.
Digital ID / mDL (Mobile Driver's License) Reader: The S550 is an excellent choice in the new age of digital IDs and mDLs, and simplifies the mDL reading process. Many states and countries have already begun to roll out systems for mDL usage, and Socket Mobile is helping industries such as retail, commercial services, and government move into this new digital ID ecosystem. Ready to read mobile wallet mDLs out of the box, the S550 can read credentials following ISO18013-5, the standard adopted in many jurisdictions.
The S550 supports three Bluetooth profiles: 1). Smart Reader Mode (default), 2). PCSC Coupler Reader/Writer Mode, and 3). Basic Mode (sometimes called HID or human interface device or Keyboard Emulation)
(The first two are for customer app development using our CaptureSDK).
Built for limited counter space and all-day reliability, we created the S550 to work with applications for loyalty, closed-loop payments, pop-up selling, events, ticket or ID verification, and other customer-related services. Together with an application, the S550 can automatically request the appropriate mobile pass from an iOS or Android host device for a franchise, store, venue, or event you are attending to ensure a fast and convenient end-user experience. The result is a simple user interaction and a high level of security by capturing a cryptographically generated payload from the mobile pass. The mobile pass then transmits the payload over secure Bluetooth to an iPad or other host device running a connected application.
The S550 is compact, portable and can run on battery or plugged into power. Convenient for use anytime, anywhere with applications running on Android, Apple iOS devices (iPad®, iPhone®, iPod touch®) and Windows. The S550 supports all NFC Forum tag types and devices compliant with the ISO 18092 standard, in addition to ISO 14443 Type A and B smart cards, ISO 15693 tags, MIFARE®, FeliCa®, NXP, and STMicro tags. It is NFC Forum, Apple Pay Value Added Service (VAS), Google Wallet, and Bluetooth SIG certified. It complies with both Apple and Google NFC protocols on iPhone and Android devices.
Digital ID / mDL (Mobile Driver's License) Reader: The S550 is an excellent choice in the new age of digital IDs and mDLs, and simplifies the mDL reading process. Many states and countries have already begun to roll out systems for mDL usage, and Socket Mobile is helping industries such as retail, commercial services, and government move into this new digital ID ecosystem. Ready to read mobile wallet mDLs out of the box, the S550 can read credentials following ISO18013-5, the standard adopted in many jurisdictions.
The S550 supports three Bluetooth profiles: 1). Smart Reader Mode (default), 2). PCSC Coupler Reader/Writer Mode, and 3). Basic Mode (sometimes called HID or human interface device or Keyboard Emulation)
(The first two are for customer app development using our CaptureSDK).
Technical Information
Physical Characteristics
Product Color:
White
Item Numbers
GTIN:
0758497114846
UPC:
758497114846
EAN:
0758497114846
UNSPSC:
43201815
Frequently Asked Questions
What smart card and NFC technologies does the Socket Mobile S550 support?
The S550 supports ISO 14443 Type A and B smart cards, ISO 15693 tags, MIFARE®, FeliCa®, and most NFC tags and devices compliant with ISO 18092 standard. This broad compatibility makes it suitable for hands-free verification, physical and logical access control, and inventory tracking applications.
Which operating systems and devices are compatible with the S550?
The SocketScan S550 works with iOS, Android, and Windows Bluetooth-enabled devices, including most smartphones and tablets. It meets Accessory Design Guidelines for Apple devices and is compliant with Apple, Android, and Windows accessory recommendations.
How long does the S550's battery last on a single charge?
The S550 features a rechargeable lithium-ion battery with up to 16 hours of active use on a single charge. This extended battery life makes the device extremely portable and convenient for all-day use in the field.
What connectivity options does the S550 offer for application integration?
The S550 supports two Bluetooth modes: HID Keyboard Emulation for native app support, and App Mode for custom app development using Socket Mobile's Capture SDK interface. This flexibility allows seamless integration with both off-the-shelf and custom solutions.
Can the S550 write and encode data to NFC tags and smart cards?
Yes, the S550 functions as both a reader and writer—it can read NFC and RFID tags as a fast HF reader, and also write/encode, lock, and unlock tags. This dual capability makes it suitable for comprehensive access control and inventory management workflows.
What makes the S550 suitable for warehouse and logistics operations?
The S550 combines 13.56 MHz contactless technology with Bluetooth 5 wireless connectivity in a compact, portable design ideal for hands-free verification and inventory tracking. Its long battery life, multi-platform compatibility, and support for standard smart card and NFC formats make it well-suited for warehouse access control and asset management. Contact us today to learn how we can integrate the S550 into your logistics workflow.
The Socket Mobile TX3489-1984 Access Control Reader is also known as
SOC-TX34891984
