Socket Mobile SL0723-116 Spare Parts

The Socket Mobile SL0723-116 Spare Parts has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Socket Mobile Dual Serial I/O PC Card - Socket Ruggedized Dual Serial I/O PC Card Serial Adapter - DISCONTINUED - 1 Pack - Plug-in Card - PC Card
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

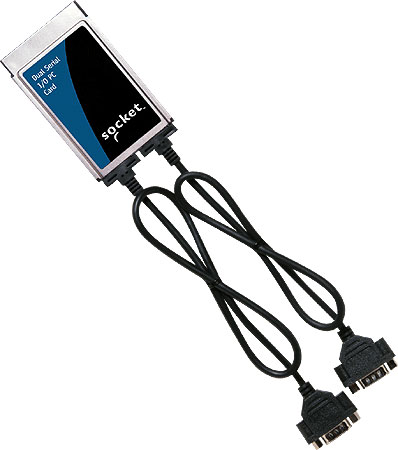

Socket Mobile Dual Serial I/O PC Card - Ruggedized Accessory Model Overview
Dual Serial I/O PC Card - Ruggedized PCMCIA (PC Card Type II) card from Socket adds two high-speed RS-232 serial COM ports to your Windows mobile computer and maximizes your connectivity with speeds up to 921 Kbps. Dual Serial I/O PC Card - Ruggedized provides simultaneous operation and independent configuration of each RS-232 port. A fully-integrated, ruggedized, fixed cable maintains solid contact in high vibration situations (such as those present in vehicle-mounted applications), while molded strain relief protects against lateral stress and seals out dust and moisture. The Dual Serial I/O PC Card - Ruggedized enables the simultaneous connection of modems, barcode scanners, magstripe readers, GPS receivers, digital cameras or other RS-232 serial devices. Socket's HIS-3 chip allows for low power consumption and compatibility with a standard PC Card (PCMCIA) interface.
Socket Mobile SL0723-116 Spare Parts Overview

Now you can add two high-speed RS-232 serial COM ports to your mobile computer and maximize your connectivity with speeds up to 921 Kbps. Attach external modems, bar code scanners, mag stripe readers, GPS receivers, court reporting stenograph machines or other RS-232 serial devices to your Windows CE 95OB/98SE/Me/2000/XP devices. These Mobility Friendly cards are the world's lowest power and most popular PC Card dual serial adapters.

Technical Information
Host Interface:
PC Card
Data Transfer Rate:
Up to 921kB/s
UART Type:
  • 16550
  • 16650
  • 16750
  • 16950
Physical Characteristics
Form Factor:
Plug-in Card
Width:
2.1"
Depth:
3.4"
Thickness:
197 mil
Miscellaneous
Additional Information:
  • Two 16550 compatible UARTs provide internal data buffering to utilize the full bandwidth of RS-232 peripherals such as fast modems
  • Hi-Speed COM Tools and drivers enable you to re-map baud rates to higher speeds such as 230.4, 460.8 or 921.6 kbps
  • Provides the ability to quickly identify and change COM port assignments
  • Provides hardware flow control and internal data buffering to support a continuous data stream from high-speed peripherals
  • Uses low power for longer battery life

Power Consumption:

  • Minimum: 5 mA (25 mW)
  • Typical:
  • One port: 13 mA (65 mW)
  • Both ports: 21 mA (105 mW)
  • Maximum:
  • One port: 16 mA (96 mW)
  • Both ports: 27 mA (135 mW)
  • Compatible Systems: 3 V, 5.5 V
Compatibility:
  • Notebooks
  • Handheld PCs
  • Pocket PCs
  • Plug-and-play
  • External Modems
  • Bar Code Scanners
  • Mag Stripe Readers
  • GPS Receivers
  • Court Reporting Stenograph Machines
  • RS-232 Serial Devices
Item Numbers
UNSPSC: 43201559
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile SL0723-116 Spare Parts is also known as SOC-SL0723116 or SL0723116.
