Socket Mobile SL0707-078 Spare Parts

The Socket Mobile SL0707-078 Spare Parts has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Socket Mobile Serial I/O PC - Socket Ruggedized Serial I/O PC Card Serial Adapter - DISCONTINUED - 1 Pack - Plug-in Card - PC Card
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Socket Mobile Serial I/O PC - Ruggedized Accessory Model Overview

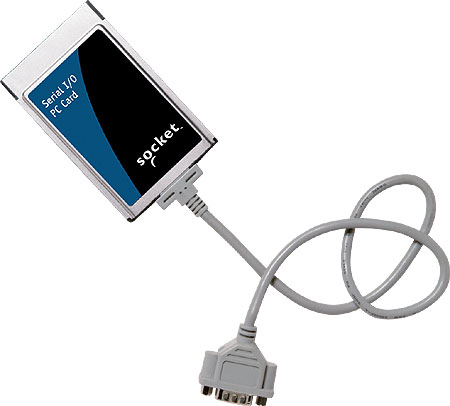

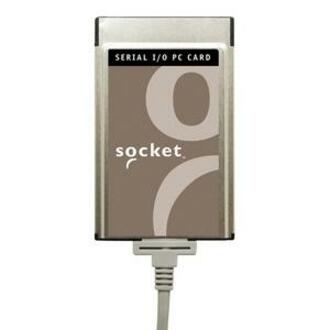

Serial I/O PC - Ruggedized PCMCIA (PC Card Type II) card from Socket adds a high-speed RS-232 serial COM port to your mobile computer and maximizes your connectivity with speeds up to 921 Kbps. It works exceptionally well with both Windows- and Linux-based mobile devices. The unit includes a male DB-9 connector on a ruggedized fixed cable and molded strain relief for harsher industrial applications. It connects to modems, barcode scanners, magstripe readers, GPS receivers, digital cameras and other RS-232 serial devices. These battery-friendly cards are the world's most power-efficient add-on serial adapters, extending the battery life of your PDA.
Socket Mobile SL0707-078 Spare Parts Overview
Now you can add a high-speed RS-232 serial COM port to your mobile computer and maximize your connectivity with speeds up to 921 Kbps. Attach external modems, bar code scanners, mag stripe readers, GPS receivers, court reporting stenograph machines or other RS-232 serial devices to your Windows 95OB/98SE/2000/Me/XP devices. These Mobility Friendly cards are the world's lowest power and most popular PC Card serial adapters.
Technical Information
Host Interface:
PC Card
Data Transfer Rate:
115.2kB/s
UART Type:
  • 16550
  • 16650
  • 16750
  • 16950
Physical Characteristics
Form Factor:
Plug-in Card
Height:
0.2"
Width:
2.1"
Depth:
3.4"
Miscellaneous
Additional Information:
  • Comes with the Hi-Speed COM Tools and drivers which enable users to re-map legacy baud rates to higher speeds such as 230.4, 460.8, or 921.6 Kbps.
  • Comes with advanced features to set custom baud rates
  • Provides the ability to quickly identify and change COM port assignments
  • Includes UARTS that contain 128 byte FIFO (twice the size of other solutions)
  • Provides hardware flow control
  • Operates in both 3.3V and 5V Systems
  • Uses low power for longer battery life (typical current draw at 3.3v is 2.4mA)
  • For Sharp Zaurus support see, www.socketcom.com/ZaurusSharp.asp
  • Cable length: 17 in (432 mm)
  • PC Computer Support: All notebooks, Handheld PCs and Pocket PCs with Type II or III slot
  • Power Consumption:
    - Standby: 5 mA
    - Typical: 13 mA
Compatibility:
  • Mac
  • PC
Item Numbers
UNSPSC: 43201559
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Socket Mobile SL0707-078 Spare Parts is also known as SOC-SL0707078 or SL0707078.
