Socket Mobile SL0700-004 Spare Parts

The Socket Mobile SL0700-004 Spare Parts has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Socket Mobile Serial I/O PC - Socket Serial I/O PC Card Serial Adapter - DISCONTINUED - 1 Pack - Plug-in Card - PC Card

Need a different version? See all Socket Mobile Serial I/O PC Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Socket Mobile SL0700-004 Spare Parts
Socket Mobile SL0700-004 Spare Parts Socket Mobile SL0700-004 Spare Parts Socket Mobile SL0700-004 Spare Parts
Socket Mobile SL0700-004 Spare Parts
Socket Mobile SL0700-004 Spare Parts
Socket Mobile SL0700-004 Spare Parts
Full specifications (PDF)
Socket Mobile Serial I/O PC Accessory Model Overview

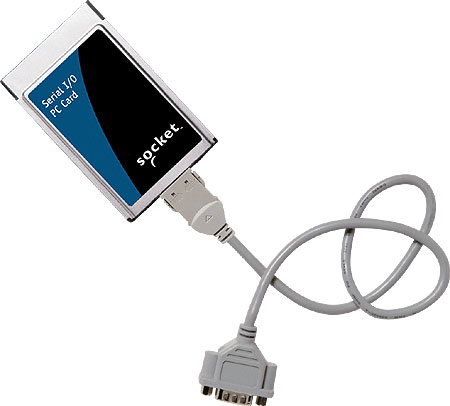

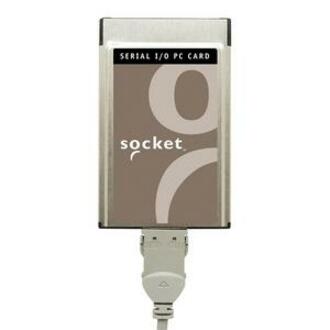

Serial I/O PC PCMCIA (PC Card Type II) card from Socket adds a high-speed RS-232 serial COM port to your mobile computer and maximizes your connectivity with speeds up to 921 Kbps. It works exceptionally well with both Windows- and Linux-based mobile devices. The unit includes a male DB-9 connector on a 12" detachable cable. It connects to modems, barcode scanners, magstripe readers, GPS receivers, digital cameras and other RS-232 serial devices. These battery-friendly cards are the world's most power-efficient add-on serial adapters, extending the battery life of your PDA.
Socket Mobile SL0700-004 Spare Parts Overview
Now you can add a high-speed RS-232 serial COM port to your mobile computer and maximize your connectivity with speeds up to 921 Kbps. Attach external modems, bar code scanners, mag stripe readers, GPS receivers, court reporting stenograph machines or other RS-232 serial devices to your Windows 95OB/98SE/2000/Me/XP devices. These Mobility Friendly cards are the world's lowest power and most popular PC Card serial adapters.
Full specifications (PDF)
Technical Information
Host Interface:
PC Card
Data Transfer Rate:
115.2kB/s
UART Type:
  • 16550
  • 16650
  • 16750
  • 16950
Physical Characteristics
Form Factor:
Plug-in Card
Height:
0.2"
Width:
2.1"
Depth:
3.4"
Weight (Approximate):
2.08 oz
Miscellaneous
Additional Information:
  • Comes with the Hi-Speed COM Tools and drivers which enable users to re-map legacy baud rates to higher speeds such as 230.4, 460.8, or 921.6 Kbps.
  • Comes with advanced features to set custom baud rates
  • Provides the ability to quickly identify and change COM port assignments
  • Includes UARTS that contain 128 byte FIFO (twice the size of other solutions)
  • Provides hardware flow control
  • Operates in both 3.3V and 5V Systems
  • Uses low power for longer battery life (typical current draw at 3.3v is 2.4mA)
  • For Sharp Zaurus support see, www.socketcom.com/ZaurusSharp.asp
  • Cable length: 17 in (432 mm)
  • PC Computer Support: All notebooks, Handheld PCs and Pocket PCs with Type II or III slot
  • Power Consumption:
    - Standby: 5 mA
    - Typical: 13 mA
Compatibility:
  • Mac
  • PC
Item Numbers
UNSPSC: 43201559
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile SL0700-004 Spare Parts is also known as SOC-SL0700-004 or SL0700004.
