Maximum Read Distance:
2.99"

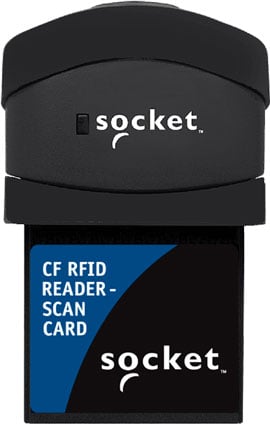

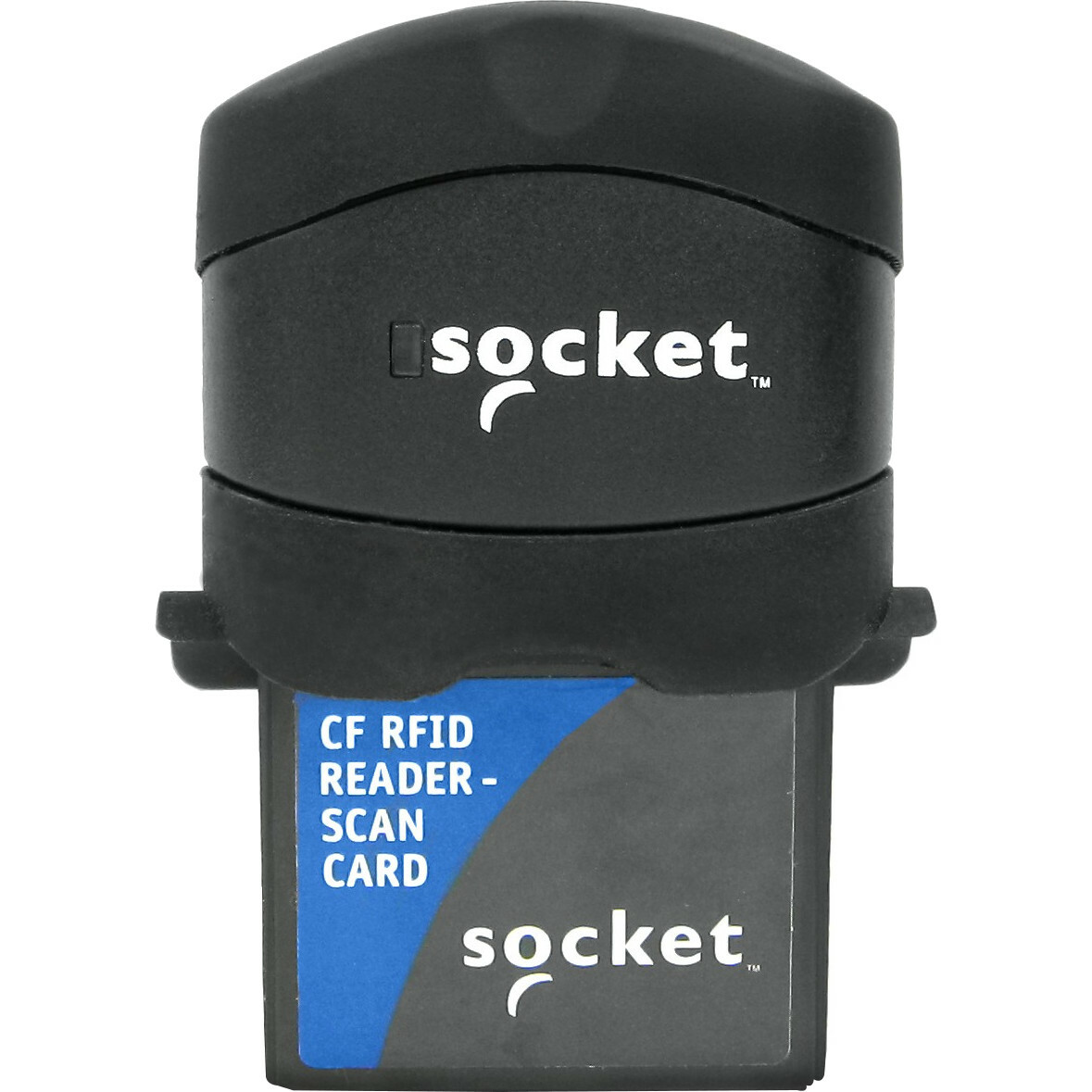

Socket Mobile CF RFID Reader Scan Card 6P Accessory Model Overview
Socket's CF RFID Reader Scan Card 6P adds both barcode scanning and high frequency RFID read/write capabilities to your Pocket PC-based mobile data collection application. This unique dual-function device scans all common linear barcodes, and reads and writes to all ISO 15693 and many proprietary 13.56Mhz RFID tags. CF RFID Reader Scan Card 6P utilizes a powerful Class 2 laser for more demanding barcode scanning environments, such as outdoor or long distance applications. CF RFID Reader Scan Card 6P is supported by SocketScan keyboard wedge software, which sends the RFID tag ID, data from selected memory blocks or both to any Windows application in the form of virtual keystrokes. None of these functions require custom programming. The SocketScan SDK is also available for developers who wish to embed control of the RFID Reader read/write functionality into their applications. The device draws its power from the host Pocket PC.
Technical Information
Physical Characteristics
Weight (Approximate):
1.31 oz
Miscellaneous
Package Contents:
- CF RFID Reader-Scan Card 6P
- CD with Software
- User Documentation
Additional Information:
- RFID Frequency: High Frequency 13.56 MHz Reader/Writer
- HF RFID Tags Supported: ISO15693 (ICode SL2, LRI512, my-d, Tag-It HF-I), Proprietary (ICode SL1, PicoTag (no anti-collision), Tag-It HF), ISO14443A (Mifare (tag ID only), Mifare Ultralight (no anti-collision))
- Maximum RFID Read Range: Approximately 7.6 cm (3.0 inches) for ISO15693 tags (depends on tag antenna size
- Scanner Type: Symbol SE-955 Class 2 laser (1D)
- Scan Repetition Rate: 100 scans/sec bi-directional
- Optical Resolution: 0.004 in. min./barcode element width (X Dimension)
- Print Contrast: Min. 25% absolute dark/light reflectance (MRD) measured at 650 nm
- Decode Distance (Typical): 3.8 to 114+ cm (1.5 to 45+ inches)
- Compatibility: Windows COM port, CompactFlash Spec. 2.0
- Interface Standards: CompactFlash Type II
- CompactFlash (CF) Card Dimensions: 42.7 x 36 x 5.0 mm (1.68 x 1.4 x 0.20 inches)
- Reader Head Dimensions: 45 x 49 x 21 mm (1.8 x 1.9 x 0.83 inches)
Compatibility:
Socket SoMo Handheld Terminal:
- 655/Rx
- 650/Rx
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0758497054050
UPC:
758497054050
EAN:
0758497054050
UNSPSC:
43211710
