Socket Mobile – Barcode Scanner – Scanner Only

Part Number: CX4054-3117
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$19,814.91
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Codabar Code 39 Code 93 Code 128 EAN-13 EAN-8 Interleaved 2 of 5 ISBT 128 UPC A UPC E1 Chinese 2 of 5 Codabar Code 11 Code 16KCode 39 Code 93 Code 128 Discrete 2 of 5 EAN-13 EAN-8 GS1 Databar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI Plessey UPC A UPC E1 Standard 2 of 5 UK Plessey 2D: Data Matrix Micro QR Code PDF417 QR Code Aztec Data Matrix Han Xin Micro PDF417 Micro QR Code PDF417 QR Code
Light Source
LED

Product Description:

  Barcode Scanners, Socket-Mobile, Durascan D720, Gray, 50 Bulk (No Acc Incl)
Explore all Socket Mobile Parts Accessories
Add to Quote

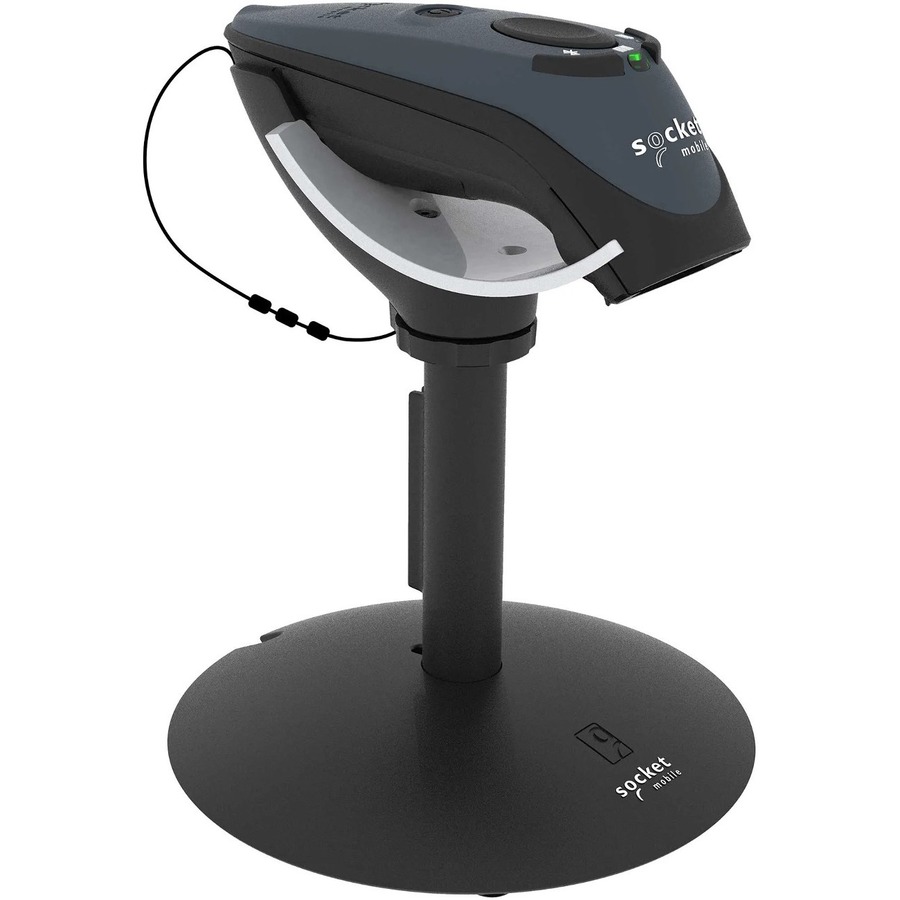

Socket Mobile CX4054-3117 Barcode Scanner
Socket Mobile CX4054-3117 Barcode Scanner

Socket Mobile Parts Accessory Model Overview

Products and parts from Socket-Mobile.
Socket Mobile CX4054-3117 Barcode Scanner Overview
Linear Barcode Plus QR Code Scanner

The D720 is a linear barcode & QR Code 1D/2D barcode scanner, able to read 1D and 2D barcodes on paper and screen. The D720 was built for mobility and durability. It is IP54 rated for dust and water, comes with a field-replaceable battery, and withstands multiple drops. Also great for warehousing and manufacturing applications due to the scanning versatility. It is lightweight, ergonomic designed and has a long-lasting battery. The scanner is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status. Perfect for inventory, order entry, field service, and other mobile business applications.

To enjoy optimal reliability and performance from the D720, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of Capture SDK.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC E1
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCode 39
  • Code 93
  • Code 128
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • GS1 Databar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • UPC A
  • UPC E1
  • Standard 2 of 5
  • UK Plessey
2D:
  • Data Matrix
  • Micro QR Code
  • PDF417
  • QR Code
  • Aztec
  • Data Matrix
  • Han Xin
  • Micro PDF417
  • Micro QR Code
  • PDF417
  • QR Code
Light Source:
LED
Image Sensor Type:
Linear
Scan Pattern:
Omni-directional
Scanning Distance:
19.49"
Field of View (Horizontal):
45°
Field of View (Vertical):
34°
Maximum Ambient Light:
100000 lux
Drop Specification:
6 drops to concrete - 1 on each side at 6.6 ft. (2 m)
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Included:
Yes
Battery Weight:
1.23 oz
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Product Color:
Gray
Weight (Approximate):
3.84 oz
Miscellaneous
Compatibility:
Apple - iPad , iPhone , iPod Touch
Ingress Protection (IP) Rating:
IP54
Application/Usage:
  • Retail
  • Transportation
  • Warehouse
  • Manufacturing
  • Field Sales/Service
  • Healthcare
  • Asset Tracking
Platform Supported:
  • iOS
  • Mac
  • PC
  • Android
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497122230
UPC: 758497122230
EAN: 0758497122230
UNSPSC: 43211701

Frequently Asked Questions

The Socket Mobile CX4054-3117 is a wireless handheld barcode scanner from Socket Mobile, part of their Durascan D720 product line. We offer this scanner in gray, available in bulk quantities of 50 units without accessories included.

Yes, the Socket Mobile CX4054-3117 Durascan D720 is a wireless handheld barcode scanner designed for mobile scanning applications. It's ideal for warehouse managers and logistics professionals who need portable scanning solutions.

Yes, we offer the Socket Mobile CX4054-3117 Durascan D720 in bulk quantities of 50 units. This bulk packaging option is available from us without accessories included, making it cost-effective for large deployments.

The Socket Mobile CX4054-3117 Durascan D720 is available in gray. We offer this color option in our bulk 50-unit packages.

The bulk package of 50 units we offer does not include accessories. If you need accessories for your deployment, contact us today to discuss your specific requirements and available options.

We offer the Socket Mobile CX4054-3117 Durascan D720 barcode scanner as a leading AIDC distributor. Visit barcodesinc.com or contact us today to place an order or discuss your scanning needs.

The Socket Mobile CX4054-3117 Barcode Scanner is also known as SOC-CX40543117
