Socket Mobile – Barcode Scanner – Cradle Only

Part Number: CX4041-3104
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$387.83
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Codabar Code 39 Code 93 Code 128 EAN-13 EAN-8 Interleaved 2 of 5 ISBT 128 UPC A UPC E1 Chinese 2 of 5 Codabar Code 11 Code 16KCode 39 Code 93 Code 128 Discrete 2 of 5 EAN-13 EAN-8 GS1 Databar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI Plessey UPC A UPC E1 Standard 2 of 5 UK Plessey 2D: Data Matrix Micro QR Code PDF417 QR Code Aztec Data Matrix Han Xin Micro PDF417 Micro QR Code PDF417 QR Code
Image Sensor Type
Linear

Product Description:

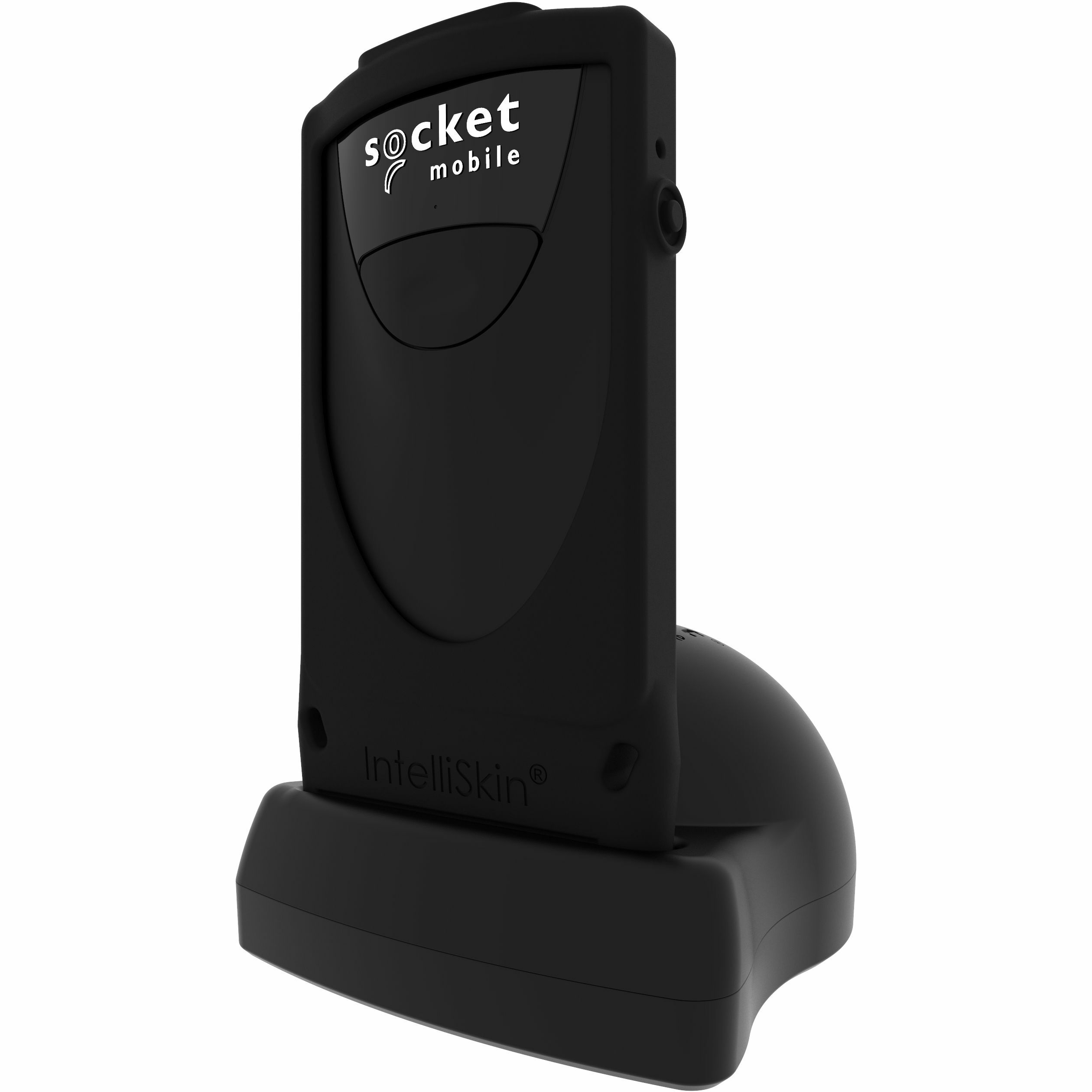

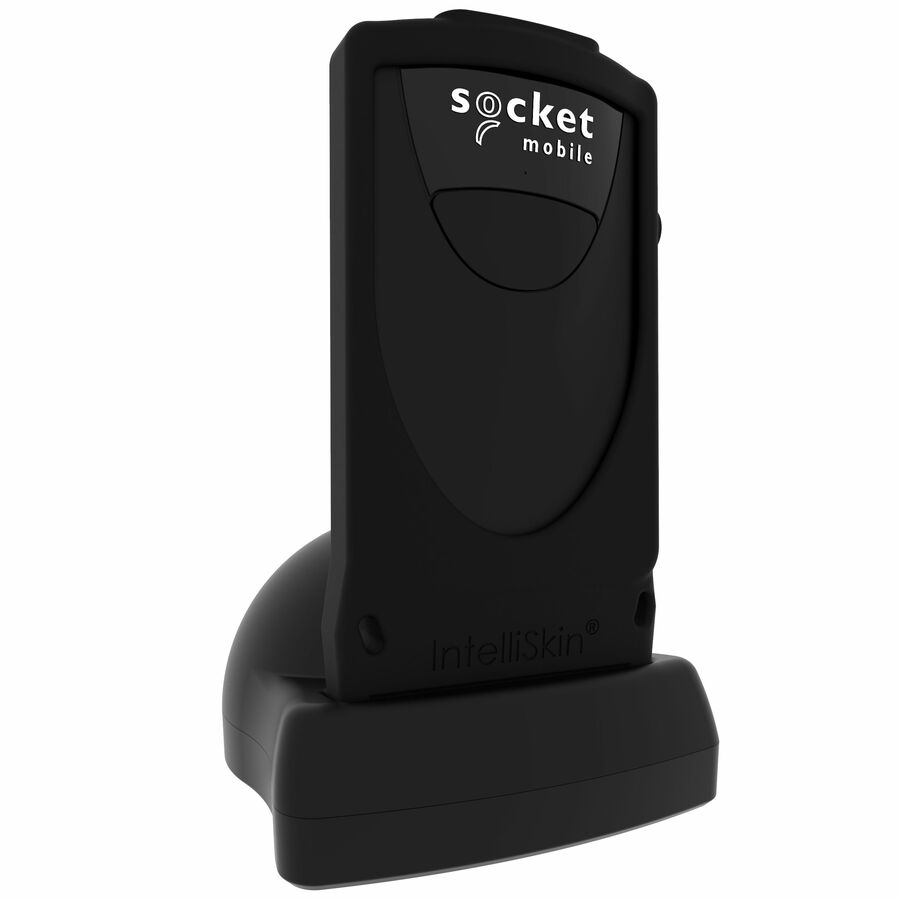

  Barcode Scanners, Socket-Mobile, Durascan D820 Charging Dock
Explore all Socket Mobile Parts Accessories
Add to Quote
Socket Mobile CX4041-3104 Barcode Scanner
Socket Mobile CX4041-3104 Barcode Scanner
Socket Mobile CX4041-3104 Barcode Scanner Socket Mobile CX4041-3104 Barcode Scanner

Socket Mobile Parts Accessory Model Overview

Products and parts from Socket-Mobile.
Socket Mobile CX4041-3104 Barcode Scanner Overview
Linear Barcode Plus QR Code Scanner

The DuraScan D820 is a linear barcode & QR Code 1D/2D barcode reader with Bluetooth wireless technology. It reads the most popular 2D/1D barcodes and is perfect for retail point of sale, inventory management, sales order entry, field service, and other mobile business applications. Users can scan barcodes printed on labels or displayed on screens. Designed for mobility, durability and lasting up to two shifts. The external rubberized material increases drop protection. Easy to use and attachable to a mobile device, enabling one-handed operation, it slips neatly into your pocket and fits comfortably in the palm of your hand.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC E1
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCode 39
  • Code 93
  • Code 128
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • GS1 Databar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • UPC A
  • UPC E1
  • Standard 2 of 5
  • UK Plessey
2D:
  • Data Matrix
  • Micro QR Code
  • PDF417
  • QR Code
  • Aztec
  • Data Matrix
  • Han Xin
  • Micro PDF417
  • Micro QR Code
  • PDF417
  • QR Code
Image Sensor Type:
Linear
Scan Pattern:
  • Omni-directional
  • Linear
Scanning Distance:
15"
Field of View (Horizontal):
45°
Field of View (Vertical):
34°
Maximum Ambient Light:
100000 lux
Drop Specification:
Multiple 6.5 ft. (2 m) drops to concrete
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Image Sensor Resolution:
1280 x 960
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Polymer (Li-Polymer)
Battery Capacity:
700 mAh
Battery Weight:
0.44 oz
Maximum Battery Recharge Time:
8 Hour
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Weight (Approximate):
2.52 oz
Miscellaneous
Package Contents:
  • D820 barcode scanner
  • Klip
  • Charging Dock
  • USB Charging Cable
  • 1 year limited Warranty on DuraSled and charging dock
Ingress Protection (IP) Rating:
IP40
Application/Usage:
  • Retail
  • Hospitality
  • Logistics
  • Healthcare
  • Inventory
  • Transportation
  • Warehouse
  • Field Sales/Service
  • Commercial Service
Platform Supported:
  • Mac
  • PC
  • Android
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497122162
UPC: 758497122162
EAN: 0758497122162
UNSPSC: 43211701

Frequently Asked Questions

The Socket Mobile CX4041-3104 is a wireless handheld barcode scanner designed for mobile data capture applications. We offer this scanner as part of our comprehensive Socket Mobile product line, which serves warehouse, logistics, and retail environments requiring portable scanning solutions.

Yes, the CX4041-3104 is a mobile barcode scanner engineered for integration with mobile computing environments. Contact us today to discuss compatibility with your specific devices and deployment requirements—our team can ensure seamless integration with your existing infrastructure.

The Socket Mobile CX4041-3104 is compatible with the Durascan D820 Charging Dock, which provides convenient charging and storage for your scanner. This dock solution is available from us and helps streamline device management in high-volume scanning operations.

Socket Mobile barcode scanners are purpose-built for mobile scanning in demanding warehouse and logistics environments. We offer Socket Mobile solutions because they deliver reliable AIDC (Automatic Identification and Data Capture) technology backed by a manufacturer with deep expertise in handheld scanning devices.

Absolutely. We offer the Socket Mobile CX4041-3104 scanner along with compatible accessories including the Durascan D820 Charging Dock as a complete package. Visit barcodesinc.com or contact us today to build a customized scanning solution for your operation.

The CX4041-3104 is classified as a wireless handheld barcode scanner and mobile barcode scanner, making it suitable for on-the-go data capture in warehouses, distribution centers, and logistics operations. We stock this scanner in our top barcode scanner category because of its reliability and mobile-first design.

The Socket Mobile CX4041-3104 Barcode Scanner is also known as SOC-CX40413104
