Socket Mobile – Barcode Scanner – Scanner Only

Part Number: CX4040-3103
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$15,651.43
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Codabar Code 39 Code 93 Code 128 EAN-13 EAN-8 Interleaved 2 of 5 ISBT 128 UPC A UPC E1 Chinese 2 of 5 Codabar Code 11 Code 16KCode 39 Code 93 Code 128 Discrete 2 of 5 EAN-13 EAN-8 GS1 Databar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI Plessey UPC A UPC E1 Standard 2 of 5 UK Plessey 2D: Data Matrix Micro QR Code PDF417 QR Code Aztec Data Matrix Han Xin Micro PDF417 Micro QR Code PDF417 QR Code
Light Source
LED

Product Description:

  Barcode Scanners, Socket-Mobile, Socketscan S820 Black, 50 Bulk (No Acc Incl)
Explore all Socket Mobile Parts Accessories
Add to Quote
Socket Mobile CX4040-3103 Barcode Scanner
Socket Mobile CX4040-3103 Barcode Scanner
Socket Mobile CX4040-3103 Barcode Scanner
Socket Mobile CX4040-3103 Barcode Scanner
Socket Mobile CX4040-3103 Barcode Scanner
Socket Mobile CX4040-3103 Barcode Scanner Socket Mobile CX4040-3103 Barcode Scanner Socket Mobile CX4040-3103 Barcode Scanner Socket Mobile CX4040-3103 Barcode Scanner Socket Mobile CX4040-3103 Barcode Scanner

Socket Mobile Parts Accessory Model Overview

Products and parts from Socket-Mobile.
Socket Mobile CX4040-3103 Barcode Scanner Overview
Linear Barcode Plus QR Code Scanner

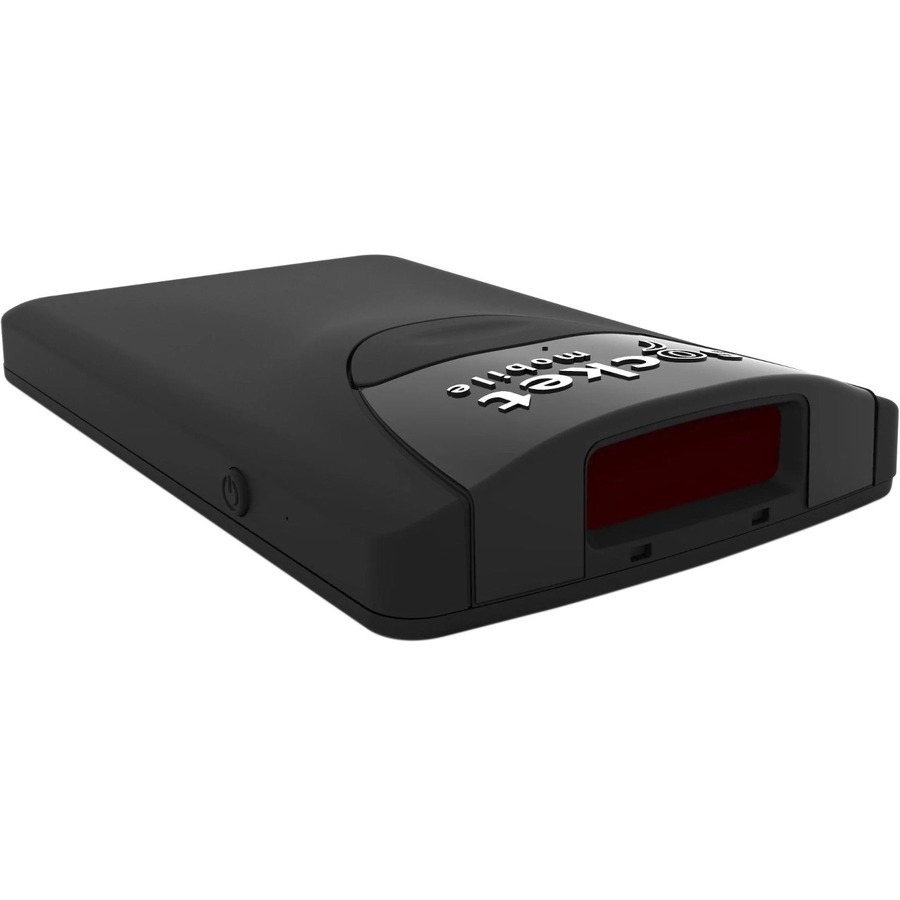

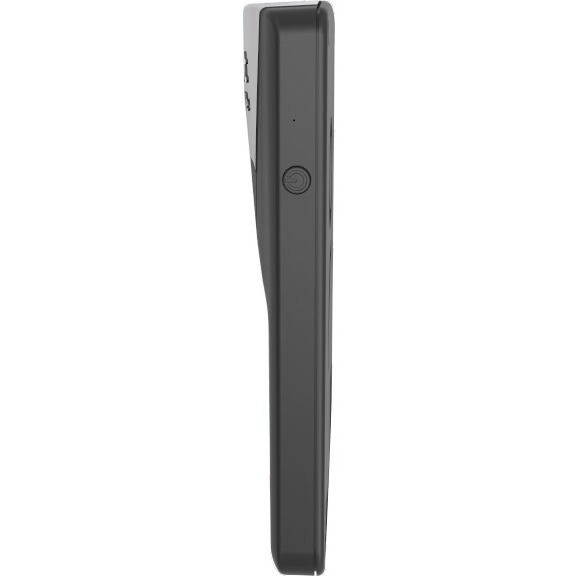

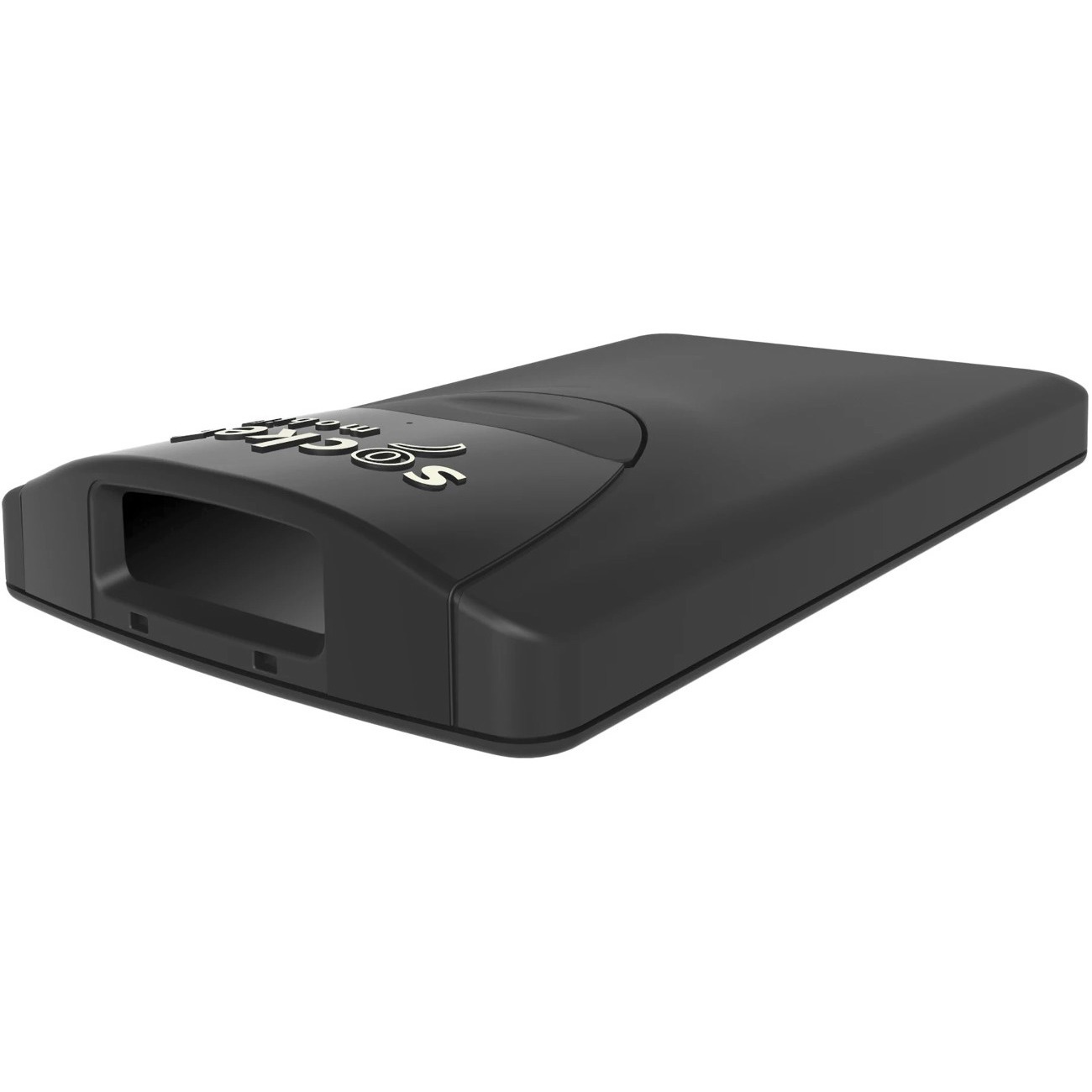

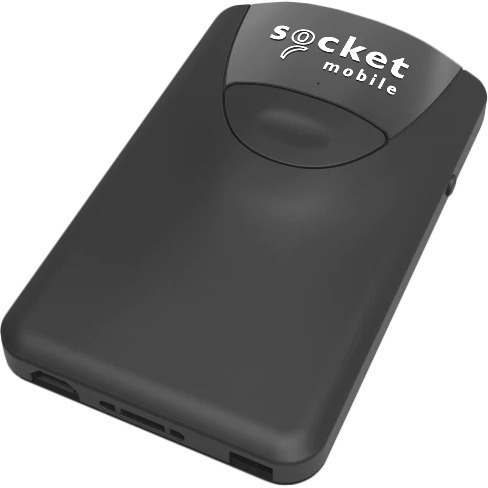

The Socket Mobile S820 is a 1D/2D linear barcode & QR Code barcode reader with Bluetooth wireless technology. Small, thin and easy to use, the reader is optimized for attaching to mobile devices, enabling one-handed operation. The S820 can scan barcodes printed on labels or displayed on device screens. It reads the most popular 2D/1D barcodes and is perfect for retail point of sale, inventory management, sales order entry, field service, and other mobile business applications.

Approximately the same size as a credit card, measuring less than ½ inch (1.27cm) thick and weighing less than two ounces, the S820 is one of the smallest and lightest high quality barcode reader available in the market today. The S820 slips neatly into your pocket and fits comfortably in the palm of your hand when attached to a smartphone. It is compatible with all applications used with other Socket Mobile readers with "NO" software update required.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC E1
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCode 39
  • Code 93
  • Code 128
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • GS1 Databar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • UPC A
  • UPC E1
  • Standard 2 of 5
  • UK Plessey
2D:
  • Data Matrix
  • Micro QR Code
  • PDF417
  • QR Code
  • Aztec
  • Data Matrix
  • Han Xin
  • Micro PDF417
  • Micro QR Code
  • PDF417
  • QR Code
Light Source:
LED
Image Sensor Type:
Linear
Scan Pattern:
Omni-directional
Scanning Distance:
14.96"
Cable Type Included:
USB
Field of View (Horizontal):
45°
Field of View (Vertical):
34°
Maximum Ambient Light:
100000 lux
Drop Specification:
Multiple drops to vinyl covered concrete at about 3 ft or 1 m
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Included:
Yes
Battery Weight:
0.44 oz
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Weight (Approximate):
1.69 oz
Miscellaneous
Package Contents:
  • S820 barcode scanner
  • Micro USB Charging Cable
  • Rechargeable battery (pre-installed)
  • Universal Klip
  • Get Started Insert
  • Klip & FlexGuard for 800 Series
  • Wrist Strap
Ingress Protection (IP) Rating:
IP40
Application/Usage:
  • Retail
  • Hospitality
  • Logistics
  • Healthcare
  • Inventory
  • Transportation
  • Warehouse
  • Field Sales/Service
Platform Supported:
  • iOS
  • Android
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497122155
UPC: 758497122155
EAN: 0758497122155
UNSPSC: 43211701

Frequently Asked Questions

The Socket Mobile CX4040-3103 is a wireless handheld barcode scanner designed for mobile data capture in warehouse, logistics, and inventory management environments. It enables real-time barcode scanning and data collection across your operation, helping streamline product tracking and parts management workflows.

Yes, the CX4040-3103 is a wireless handheld barcode scanner that provides the mobility and flexibility needed for on-the-floor operations. This wireless design allows your team to scan barcodes from anywhere in your facility without being tethered to a fixed terminal.

The Socket Mobile CX4040-3103 is a wireless handheld scanner built for mobile connectivity in warehouse and logistics environments. For detailed connectivity specifications and integration requirements, contact us today or visit barcodesinc.com to discuss your specific deployment needs.

Yes, the Socket Mobile CX4040-3103 is available in bulk quantities—we offer the Socketscan S820 Black in 50-unit packs (without accessories included). This makes it ideal for outfitting entire warehouse teams or logistics operations with standardized scanning equipment.

We offer the Socket Mobile CX4040-3103 barcode scanner as part of our comprehensive AIDC distribution portfolio. Contact us today or visit barcodesinc.com to check availability, pricing, and bulk order options for your warehouse or logistics operation.

We stock Socket Mobile barcode readers and scanners, including the Socketscan S820 Black model available in bulk quantities. Our team specializes in wireless handheld and mobile barcode scanners for warehouse and logistics applications—visit barcodesinc.com to explore our full Socket Mobile product selection.

The Socket Mobile CX4040-3103 Barcode Scanner is also known as SOC-CX40403103
