Socket Mobile – Barcode Scanner – Scanner Only

Part Number: CX4020-3083
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$422.18
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Codabar Code 39 Code 93 Code 128 EAN-13 EAN-8 Interleaved 2 of 5 ISBT 128 UPC A UPC E1 Chinese 2 of 5 Codabar Code 11 Code 16KCode 39 Code 93 Code 128 Discrete 2 of 5 EAN-13 EAN-8 GS1 Databar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI Plessey UPC A UPC E1 Standard 2 of 5 UK Plessey 2D: Data Matrix Micro QR Code PDF417 QR Code Aztec Data Matrix Han Xin Micro PDF417 Micro QR Code PDF417 QR Code
Image Sensor Type
Imager

Product Description:

  Barcode Scanners, Socket-Mobile, Durasled Ds820, For Iphone Se 2022 3Rd Gen, Iphone 6/7/8 (Charger Sold Separate
Explore all Socket Mobile Parts Accessories
Add to Quote
Socket Mobile CX4020-3083 Barcode Scanner
Socket Mobile CX4020-3083 Barcode Scanner
Socket Mobile CX4020-3083 Barcode Scanner Socket Mobile CX4020-3083 Barcode Scanner

Socket Mobile Parts Accessory Model Overview

Products and parts from Socket-Mobile.
Socket Mobile CX4020-3083 Barcode Scanner Overview

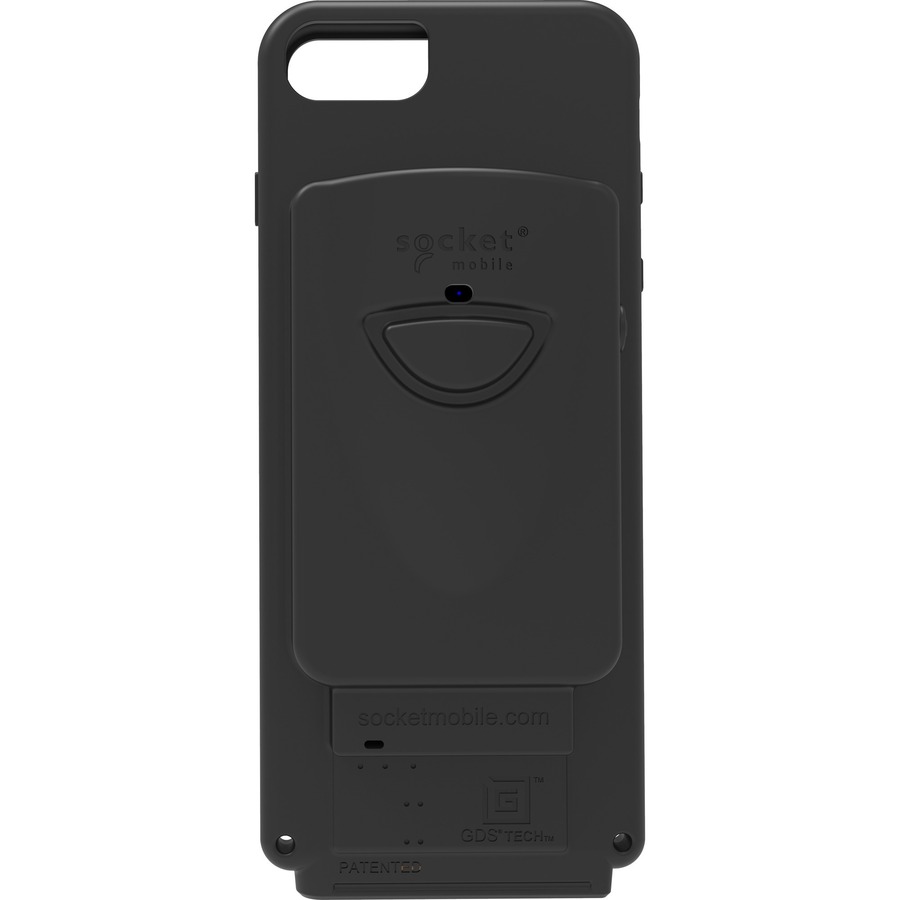

The DuraSled™ DS820 is a linear barcode & QR Code reader sled for 1D/2D barcodes, with Bluetooth® wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its case protects phones from drop damage and provides simultaneous charging of the scanner and the phone.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC E1
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCode 39
  • Code 93
  • Code 128
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • GS1 Databar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • UPC A
  • UPC E1
  • Standard 2 of 5
  • UK Plessey
2D:
  • Data Matrix
  • Micro QR Code
  • PDF417
  • QR Code
  • Aztec
  • Data Matrix
  • Han Xin
  • Micro PDF417
  • Micro QR Code
  • PDF417
  • QR Code
Image Sensor Type:
Imager
Scan Pattern:
Linear
Scanning Distance:
14.96"
Field of View (Horizontal):
45°
Field of View (Vertical):
34°
Maximum Ambient Light:
100000 lux
Drop Specification:
Multiple drops to vinyl covered concrete at about 3 ft or 1 m
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Weight:
0.44 oz
Physical Characteristics
Form Factor:
Handheld
Height:
1.1"
Width:
2.8"
Length:
6.6"
Weight (Approximate):
4 oz
Miscellaneous
Package Contents:
  • DS820 Barcode Sled Scanner
  • 1 year limited Warranty on DuraSled barcode scanner
Compatibility:
Apple - iPhone SE 2022 3rd Gen & iPhone 6/7/8
Ingress Protection (IP) Rating:
IP40
Application/Usage:
  • Retail
  • Hospitality
  • Logistics
  • Healthcare
  • Inventory
  • Transportation
  • Warehouse
  • Field Sales/Service
Platform Supported:
iOS
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497122117
UPC: 758497122117
EAN: 0758497122117
UNSPSC: 43211701

Frequently Asked Questions

The Socket Mobile CX4020-3083 is designed for iPhone SE 2022 (3rd Gen), iPhone 6, iPhone 7, and iPhone 8. This makes it an ideal mobile barcode scanning solution for iOS-based warehouse and logistics operations. Contact us today to confirm compatibility with your specific device configuration.

Yes, the Socket Mobile CX4020-3083 is a wireless handheld barcode scanner that connects to your iPhone for mobile scanning applications. This wireless capability enables your team to scan barcodes throughout your warehouse or logistics facility without being tethered to a fixed location.

The Socket Mobile CX4020-3083 is a Sled-style barcode scanner, which means it attaches to your iPhone to create an integrated mobile scanning device. Sled scanners combine the processing power of your smartphone with dedicated scanning hardware for reliable barcode capture in the field.

The Socket Mobile CX4020-3083 is sold without a charger included. You will need to purchase the charger separately to power the device. Visit barcodesinc.com or contact us today to order the compatible charger for your scanner.

The Socket Mobile CX4020-3083 is a mobile barcode scanner designed for warehouse, logistics, and field operations where you need to capture barcode data directly on your iPhone. It's ideal for inventory management, asset tracking, and order fulfillment workflows that require portable, wireless scanning capabilities.

The Socket Mobile CX4020-3083 is compatible with iPhone SE 2022 (3rd Gen), iPhone 6, iPhone 7, and iPhone 8. If you need to use a barcode scanner with other iPhone models or older devices, we offer a range of alternative Socket Mobile scanning solutions. Contact us today to find the right scanner for your device.

The Socket Mobile CX4020-3083 Barcode Scanner is also known as SOC-CX40203083
