Socket Mobile – Barcode Scanner – Cradle Only

Part Number: CX4015-3078
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$515.74
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Codabar Code 39 Code 93 Code 128 EAN-13 EAN-8 Interleaved 2 of 5 ISBT 128 UPC A UPC E1 Chinese 2 of 5 Codabar Code 11 Code 16KCode 39 Code 93 Code 128 Discrete 2 of 5 EAN-13 EAN-8 GS1 Databar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI Plessey UPC A UPC E1 Standard 2 of 5 UK Plessey 2D: Data Matrix Micro QR Code PDF417 QR Code Aztec Data Matrix Han Xin Micro PDF417 Micro QR Code PDF417 QR Code
Image Sensor Type
Imager

Product Description:

  Barcode Scanners, Socket-Mobile, Durasled Ds820, For Iphone Se 2022 3Rd Gen, Iphone 6/7/8, Charging Dock
Explore all Socket Mobile Parts Accessories
Add to Quote
Socket Mobile CX4015-3078 Barcode Scanner
Socket Mobile CX4015-3078 Barcode Scanner
Socket Mobile CX4015-3078 Barcode Scanner Socket Mobile CX4015-3078 Barcode Scanner

Socket Mobile Parts Accessory Model Overview

Products and parts from Socket-Mobile.
Socket Mobile CX4015-3078 Barcode Scanner Overview

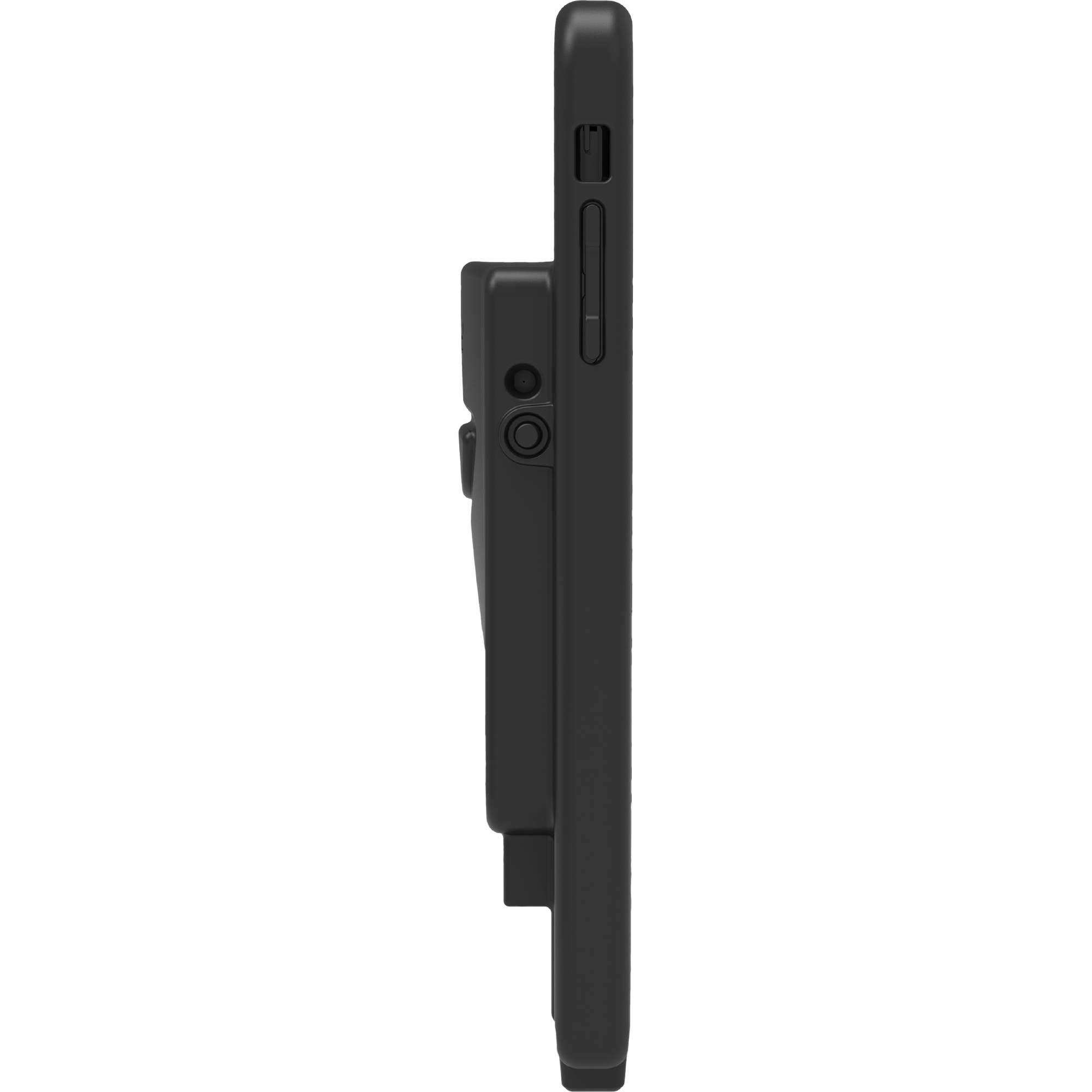

The DuraSled™ DS820 is a linear barcode & QR Code reader sled for 1D/2D barcodes, with Bluetooth® wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its case protects phones from drop damage and provides simultaneous charging of the scanner and the phone.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC E1
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCode 39
  • Code 93
  • Code 128
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • GS1 Databar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • UPC A
  • UPC E1
  • Standard 2 of 5
  • UK Plessey
2D:
  • Data Matrix
  • Micro QR Code
  • PDF417
  • QR Code
  • Aztec
  • Data Matrix
  • Han Xin
  • Micro PDF417
  • Micro QR Code
  • PDF417
  • QR Code
Image Sensor Type:
Imager
Scan Pattern:
Linear
Scanning Distance:
14.96"
Cable Type Included:
USB
Field of View (Horizontal):
45°
Field of View (Vertical):
34°
Maximum Ambient Light:
100000 lux
Drop Specification:
Multiple drops to vinyl covered concrete at about 3 ft or 1 m
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
USB
Battery Information
Battery Weight:
0.44 oz
Physical Characteristics
Form Factor:
Handheld
Height:
1.1"
Width:
2.8"
Length:
6.6"
Weight (Approximate):
4 oz
Miscellaneous
Package Contents:
  • DS820 Barcode Sled Scanner
  • GDS Charging Dock
  • USB Charging Cable
  • 1 year limited Warranty on DuraSled and charging dock
Compatibility:
Apple - iPhone SE 2022 3rd Gen & iPhone 6/7/8
Ingress Protection (IP) Rating:
IP40
Application/Usage:
  • Retail
  • Hospitality
  • Logistics
  • Healthcare
  • Inventory
  • Transportation
  • Warehouse
  • Field Sales/Service
Platform Supported:
iOS
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497122070
UPC: 758497122070
EAN: 0758497122070
UNSPSC: 43211701

Frequently Asked Questions

The Socket Mobile CX4015-3078 is designed for iPhone SE 2022 (3rd Gen), iPhone 6, iPhone 7, and iPhone 8. This SLED (Snap-on Barcode Scanner) format allows seamless integration with these Apple mobile devices for on-the-go barcode scanning in warehouse and logistics environments.

A SLED (Snap-on Barcode Scanner) is a specialized barcode scanner that physically attaches to a smartphone, turning it into a dedicated scanning device. The Socket Mobile CX4015-3078 uses this design to provide enterprise-grade barcode capture capabilities while leveraging the processing power and connectivity of your existing iPhone.

Yes, the Socket Mobile CX4015-3078 includes a charging dock, making it convenient to power and store the scanner when not in use. This helps ensure your scanning device is always ready for warehouse operations.

Yes, the Socket Mobile CX4015-3078 is a wireless handheld barcode scanner. Its wireless connectivity allows warehouse and logistics teams to move freely throughout facilities while maintaining real-time barcode scanning and data capture capabilities.

The Socket Mobile CX4015-3078 is a mobile barcode scanner in the SLED category, specifically engineered as an iPhone barcode scanner. It combines handheld scanning functionality with mobile device integration, making it ideal for warehouse managers and logistics professionals who need portable scanning solutions.

We offer the Socket Mobile CX4015-3078 barcode scanner as part of our comprehensive AIDC product lineup. Contact us today or visit barcodesinc.com to check availability, pricing, and place your order for this mobile scanning solution.

The Socket Mobile CX4015-3078 Barcode Scanner is also known as SOC-CX40153078
