Socket Mobile – Barcode Scanner – Cradle Only

Part Number: CX4003-3066
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$515.74
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Codabar Code 39 Code 93 Code 128 EAN-13 EAN-8 Interleaved 2 of 5 ISBT 128 UPC A UPC E1 Chinese 2 of 5 Codabar Code 11 Code 16KCode 39 Code 93 Code 128 Discrete 2 of 5 EAN-13 EAN-8 GS1 Databar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI Plessey UPC A UPC E1 Standard 2 of 5 UK Plessey 2D: Data Matrix Micro QR Code PDF417 QR Code Aztec Data Matrix Han Xin Micro PDF417 Micro QR Code PDF417 QR Code
Image Sensor Type
Imager

Product Description:

  Barcode Scanners, Socket-Mobile, Durasled Ds820 Iphone Xr, 11, Charging Dock
Explore all Socket Mobile Parts Accessories
Add to Quote
Socket Mobile CX4003-3066 Barcode Scanner
Socket Mobile CX4003-3066 Barcode Scanner
Socket Mobile CX4003-3066 Barcode Scanner
Socket Mobile CX4003-3066 Barcode Scanner Socket Mobile CX4003-3066 Barcode Scanner Socket Mobile CX4003-3066 Barcode Scanner

Socket Mobile Parts Accessory Model Overview

Products and parts from Socket-Mobile.
Socket Mobile CX4003-3066 Barcode Scanner Overview
Linear Barcode Plus QR Code Scanner

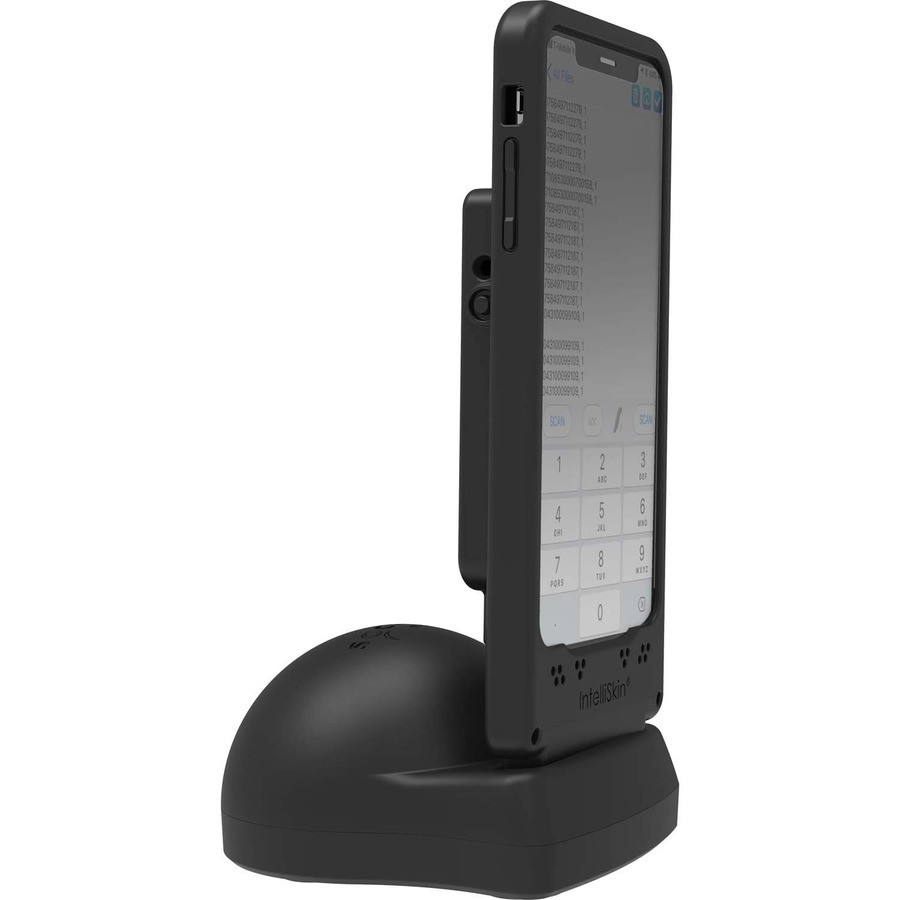

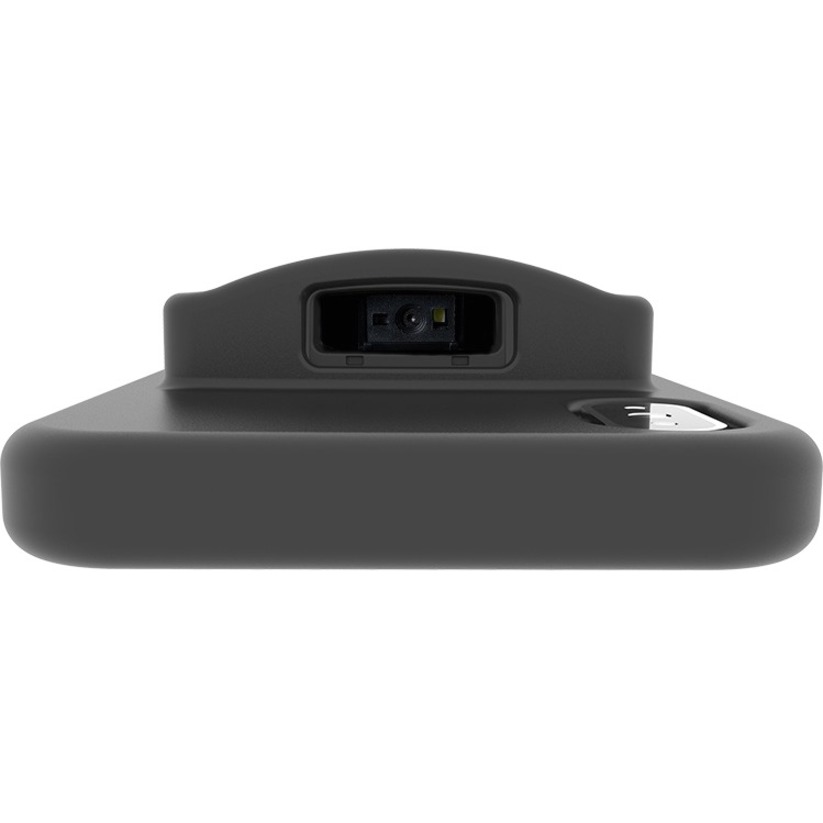

The DuraSled™ DS820 is a linear barcode & QR Code scanner sled for 1D/2D barcodes, with Bluetooth® wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its case protects phones from drop damage and provides simultaneous charging of the scanner and the phone.

The Capture SDK enables easy integration into native, and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC E1
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 16KCode 39
  • Code 93
  • Code 128
  • Discrete 2 of 5
  • EAN-13
  • EAN-8
  • GS1 Databar
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • UPC A
  • UPC E1
  • Standard 2 of 5
  • UK Plessey
2D:
  • Data Matrix
  • Micro QR Code
  • PDF417
  • QR Code
  • Aztec
  • Data Matrix
  • Han Xin
  • Micro PDF417
  • Micro QR Code
  • PDF417
  • QR Code
Image Sensor Type:
Imager
Scan Pattern:
Linear
Scanning Distance:
14.96"
Field of View (Horizontal):
45°
Field of View (Vertical):
34°
Maximum Ambient Light:
100000 lux
Drop Specification:
Multiple drops to vinyl covered concrete at about 3 ft or 1 m
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Weight:
0.44 oz
Physical Characteristics
Height:
1.1"
Width:
3"
Length:
6.8"
Weight (Approximate):
4 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP40
Application/Usage:
  • Retail
  • Hospitality
  • Logistics
  • Healthcare
  • Inventory
  • Transportation
  • Warehouse
  • Field Sales/Service
Platform Supported:
iOS
Item Numbers
GTIN: 0758497121844
UPC: 758497121844
EAN: 0758497121844
UNSPSC: 43211701

Frequently Asked Questions

The Socket Mobile CX4003-3066 is designed as a sled barcode scanner for iPhone XR and iPhone 11. This form factor allows you to attach the scanner directly to your mobile device, creating a unified handheld barcode capture solution. Contact us today to confirm compatibility with your specific device model and iOS version.

Yes, the CX4003-3066 is a wireless handheld barcode scanner from Socket Mobile. Its wireless connectivity enables mobility across your warehouse or retail environment without being tethered to a fixed terminal. We offer this model as part of our comprehensive wireless scanning solutions available at barcodesinc.com.

A sled barcode scanner is a protective enclosure that houses scanning technology and attaches to a smartphone, in this case an iPhone XR or iPhone 11. The Socket Mobile CX4003-3066 sled integrates barcode reading capability directly into your mobile device, allowing you to scan and process data without additional hardware. This design is ideal for mobile-first warehouse and logistics operations.

Yes, the Socket Mobile CX4003-3066 includes a charging dock for convenient battery management. The dock allows you to charge your scanner between shifts or during downtime, ensuring your device is ready for continuous warehouse operations. Visit barcodesinc.com for details on dock specifications and charging times.

The Socket Mobile CX4003-3066 is a professional-grade barcode scanner capable of reading standard barcode formats used in warehouse, logistics, and retail environments. For a complete list of supported barcode symbologies and technical specifications, contact us today—our team can provide detailed capability information for your specific application.

Socket Mobile is a trusted manufacturer of mobile data capture devices, and their sled scanners integrate seamlessly with iPhone devices to create rugged, purpose-built scanning solutions. The CX4003-3066 combines the familiarity of iOS with professional barcode scanning hardware, making it an excellent choice for teams already invested in Apple devices. We offer Socket Mobile products as part of our full range of AIDC solutions—contact us today to discuss which option best fits your operation.

The Socket Mobile CX4003-3066 Barcode Scanner is also known as SOC-CX40033066
