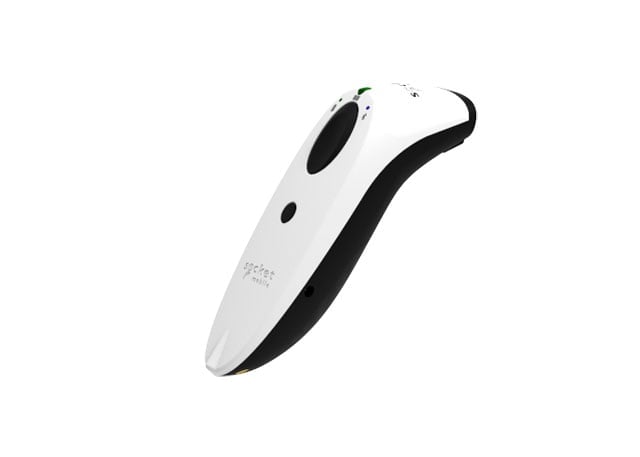

Socket Mobile SocketScan S720 – Barcode Scanner – Scanner Only

Part Number: CX3982-3039
Model: SocketScan S720
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$375.15
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Discrete 2 of 5, GS1 Databar, Industrial 2 of 5, Matrix 2 of 5, MSI Plessey, Standard 2 of 5, UK Plessey2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, QR Code
Light Source
LED

Product Description:

  Barcode Scanner, Socket Mobile SocketScan S720, 1D/2D Barcode Scanner, White, Cable Only
Explore all Socket Mobile SocketScan S720 Barcode Scanners
Add to Quote
Socket Mobile CX3982-3039 Barcode Scanner
Socket Mobile CX3982-3039 Barcode Scanner
Socket Mobile CX3982-3039 Barcode Scanner Socket Mobile CX3982-3039 Barcode Scanner
Full specifications (PDF)

Socket Mobile SocketScan S720 Barcode Scanner Model Overview

The SocketScan® S720 2D/1D Barcode Scanner is a versatile, ergonomic device designed for seamless scanning of both 1D and 2D barcodes, whether on paper or screens. Its lightweight design enhances mobility, making it a perfect tool for various applications, from inventory management to asset tracking. With a rechargeable battery that lasts over 16 hours, this scanner is built for productivity. User-friendly features, such as intuitive LED indicators for connection and battery status, make it easy to use and integrate into your workflow.


Key Features

  • Compatible with a wide range of devices: Works with Apple iOS, Android, Windows, Mac, and Linux.
  • Wireless Efficiency: Bluetooth connectivity for freedom of movement.
  • Auto Scan Mode: Enables continuous scanning without button pressing.
  • Durable Battery: Replaceable, rechargeable battery lasting over 16 hours.
  • Heavy-duty Decoding: Reads damaged and poorly printed barcodes.

Specifications

  • Scanner Type: 2D/1D imager
  • Battery: 2 rechargeable, 2000 mAh NiMH
  • Charge Time: Approximately 6 hours
  • Bluetooth Range: Up to 10 meters (33 feet)
  • Dimensions: 132.2 mm x 40.1 mm x 37.1 mm
  • Weight: 117 g
  • Operating Temperature: 0° to 45°C (32° to 113°F)
  • Storage Temperature: -40° to 70°C (-40° to 158°F)
  • Supported Symbologies: 1D: UPC, EAN, Code 39; 2D: QR Code, PDF417
  • Warranty: 1-year limited warranty
Socket Mobile CX3982-3039 Barcode Scanner Overview

Linear Barcode Plus QR Code Reader

The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It's lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.

The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Discrete 2 of 5, GS1 Databar, Industrial 2 of 5, Matrix 2 of 5, MSI Plessey, Standard 2 of 5, UK Plessey

2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, QR Code
Light Source:
LED
Image Sensor Type:
Linear
Scanning Distance:
14.96"
Field of View (Horizontal):
45°
Field of View (Vertical):
34°
Maximum Ambient Light:
100000 lux
Drop Specification:
4 ft. drop to linoleum
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Image Sensor Resolution:
1280 x 960
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Included:
Yes
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Battery Capacity:
2000 mAh
Battery Weight:
1.92 oz
Maximum Battery Run Time:
16 Hour
Maximum Battery Recharge Time:
6 Hour
Environmental Conditions
Operating Temperature:
32°F (0°C) to 113°F (45°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Weight (Approximate):
4.13 oz
Miscellaneous
Package Contents:
  • SocketScan S720, White
  • Wrist strap
Application/Usage:
  • Ticketing
  • Asset Tracking
  • Transportation
  • Delivery
  • Loyalty Program
  • Inventory
  • Hospitality
Platform Supported:
  • PC
  • Mac
  • iOS
  • Android
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
optional extended warranty available.
Item Numbers
GTIN: 0758497121714, 0758497121769
UPC: 758497121714, 758497121769
EAN: 0758497121714, 0758497121769
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile CX3982-3039 Barcode Scanner is also known as SOC-CX39823039
