Socket Mobile SocketScan S740 – Barcode Scanner – Scanner Only

Part Number: CX3809-2569
3-year Premium Plus ($54.70)
No, stay at premium support package
$385.56
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D Symbologies: Australia Post Codabar Code 39 Code 93 Code 128 EAN-13/JAN EAN-8/JAN GS1 Databar GS1 Databar Expanded Stacked GS1 Databar Limited, GS1-128 Interleaved 2 of 5 ISBT 128 UPC A UPC EO Bookland EAN Chinese 2 of 5 Code 11 Composite CC-A/B Composite CC-C Composite TLC Discrete 2 of 5 ISSN EAN Matrix 2 of 5 MSI UPC/EAN/JAN 2D Symbologies: Aztec Data Matrix Maxicode Micro PDF417 PDF417 MicroQR QR Code
Image Sensor Type
Imager

Product Description:

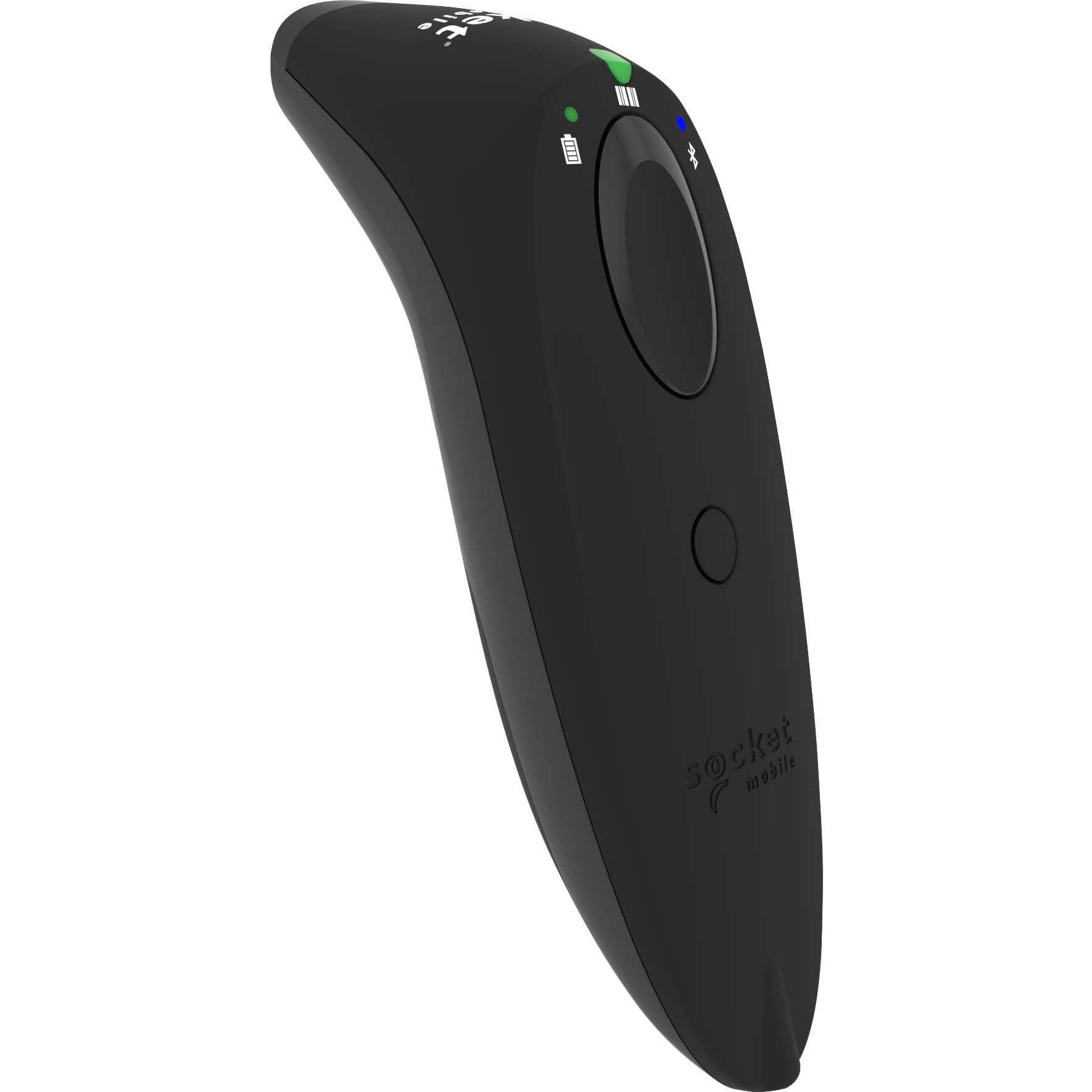

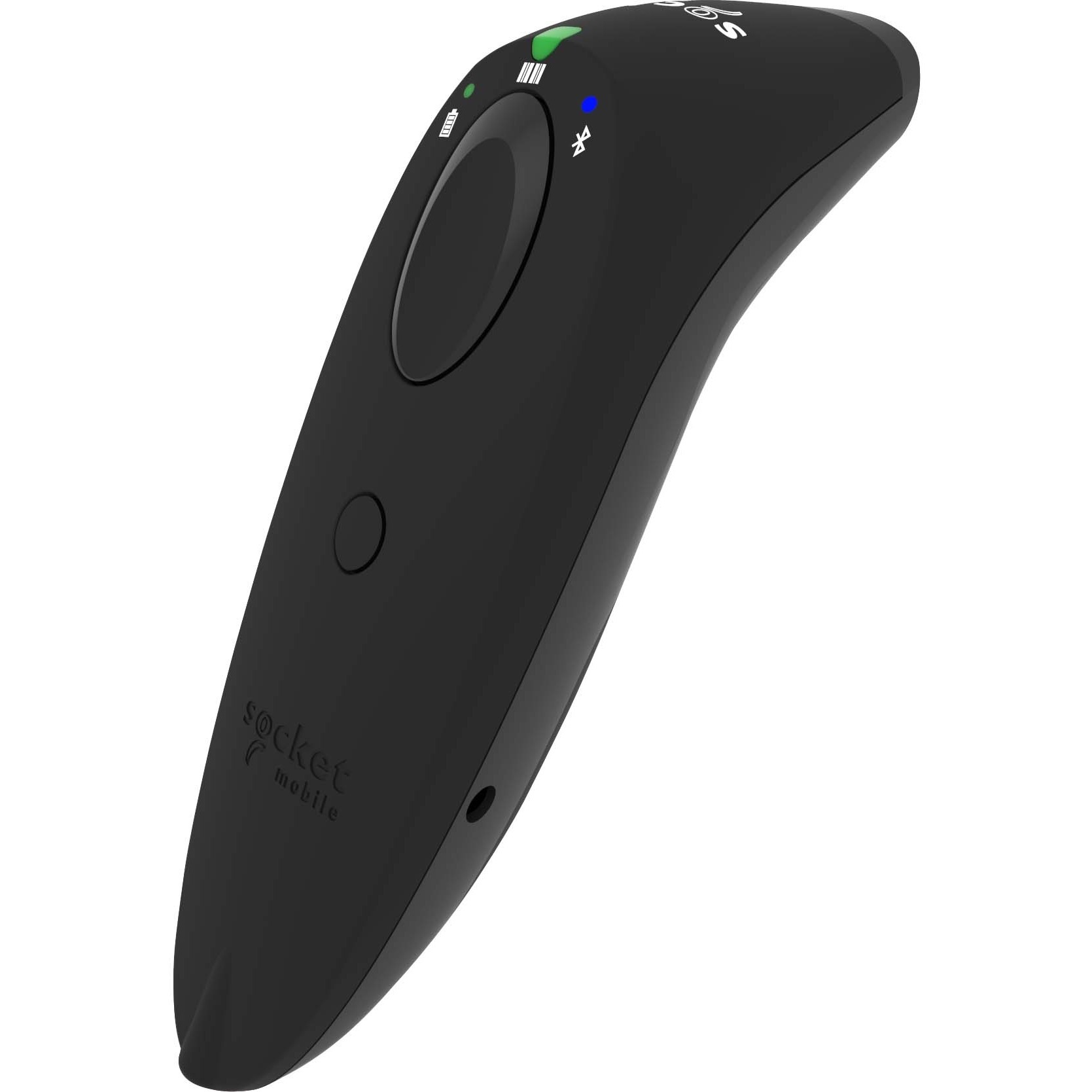

  Socket Mobile SocketScan S740 Universal Barcode Scanner - Wireless Connectivity - 19.50" Scan Distance - 1D, 2D - Imager - Black

Socket Mobile SocketScan S740 Barcode Scanner Model Overview

The SocketScan S740 2D/1D barcode scanner is an ergonomic and stylish solution, perfect for retail, inventory management, and field service applications. Featuring advanced Bluetooth wireless technology, it effortlessly scans both 1D and 2D barcodes printed on paper or displayed on screens. With a lightweight design and a robust battery life lasting over 16 hours, this scanner is built to withstand long workdays. Available in five vibrant colors, it not only provides functionality but also enhances your professional image.


Key Features
  • Bluetooth Wireless Technology - Easy connectivity with a range of Bluetooth-enabled devices.
  • Exceptional Ergonomics - Lightweight design for prolonged comfort.
  • Long-Lasting Battery - Stay powered for over 16 hours with a replaceable battery.
  • Multi-Device Compatibility - Works seamlessly with iOS, Android, and Windows devices.
  • Auto Scan Mode - Continuous scanning capability in presentation mode.

Specifications
  • Scanning Performance
    • Supported Symbologies: 1D (Codabar, UPC, etc.), 2D (QR Code, PDF417, etc.)
    • Scanning Angle: 42° (Horizontal), 28° (Vertical)
    • Reading Distance: Up to 49.5 cm (1.5 to 19.5 in.)
  • Battery
    • Type: 2000 mAh NiMH (replaceable)
    • Charge Time: ~6 hours
    • Standby Time: Over 20 hours
  • Physical Characteristics
    • Weight: 4.0 oz. (113 g)
    • Dimensions: 5.2 in. x 1.5 in. x 1.6 in. (132.2 mm x 37.1 mm x 40.1 mm)
  • Operating System Compatibility
    • iOS, Windows 10/8/7
Socket Mobile CX3809-2569 Barcode Scanner Overview
Shopify,Square,Shopkeepandmany more apps, include native support for Socket Mobile scanners.

The SocketScan S740 universal barcode scanner with Bluetooth wireless technology scans either 1D or 2D barcodes on paper or screen. It has a lightweight, ergonomic structure, and a long-lasting battery to withstand entire work days. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. The S740 is designed to be software compatible with all applications. Updates on operating systems may alter the devices?Äô performance.

For the most reliable and consistent performance, please verify with your application provider that Socket Mobile latest Capture SDK was implemented in your app.

This scanner is ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.

Certified by Apple for iOS devices (iPad , iPhone, iPod Touch ) and compatible with Android and Windows.

Features:

  • Bluetooth Wireless Technology - Connects easily to a wide range of Bluetooth enabled smartphones, tablets, notebook and desktop computers
  • Certified by Apple for iOS devices Guaranteed Compatibility - With Capture SDK integrated in over 700+ applications, Socket Mobile scanners are one of the most natively integrated scanners available today. Socket Mobile Scanners are also 100% compatible with any application out-of-the-box in HID (keyboard emulation) mode.
  • Compatible with all Android and Windows devices and applications
  • Scanning Fast 2D, 1D and omni-directional ability, allowing intuitively rapid barcode scanning with highly visible and safe LED aimer
  • Auto Mode - Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button
  • LED Aimer - Bright, rectangular illumination field with LED dot for precise aiming
  • Exceptional Ergonomics - Small, lightweight, and fits perfectly in the hand for comfortable use over extended periods
  • User Indicators Intuitive LEDs, Bluetooth connection, battery level and scanning status
  • User Feedback - Audible tones and hand pulsation
  • Long-Lasting Battery - Power to last over 16 hours
  • Replaceable Battery 2 AA NiMH rechargeable batteries
  • Protective Material - Made with antimicrobial material for protection against potentially harmful bacteria

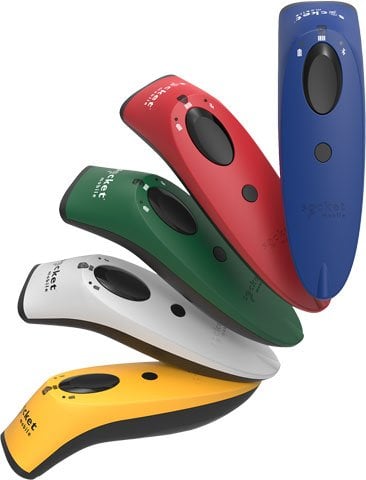

  • Color Options - Blue, green, red, white and yellow colors enable corporate-branding personalization and is easy to find in busy work environments
  • Application Integration Socket Mobile Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology
  • Wearable - Includes wrist strap. Holster, lanyard and retractable clip available (sold separately)
  • Designed and Assembled in the USA
  • Developer Support Available
  • 1-Year Warranty- Barcode Scanner
  • 90 Day Warranty- Charging cables, wrist straps and batteries purchased separately
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D Symbologies:
  • Australia Post
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13/JAN
  • EAN-8/JAN
  • GS1 Databar
  • GS1 Databar Expanded Stacked
  • GS1 Databar Limited, GS1-128
  • Interleaved 2 of 5
  • ISBT 128
  • UPC A
  • UPC EO
  • Bookland EAN
  • Chinese 2 of 5
  • Code 11
  • Composite CC-A/B
  • Composite CC-C
  • Composite TLC
  • Discrete 2 of 5
  • ISSN EAN
  • Matrix 2 of 5
  • MSI
  • UPC/EAN/JAN
2D Symbologies:
  • Aztec
  • Data Matrix
  • Maxicode
  • Micro PDF417
  • PDF417
  • MicroQR
  • QR Code
Image Sensor Type:
Imager
Scanning Distance:
19.50"
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
4.10 oz
Miscellaneous
Country of Origin:
United States
Item Numbers
GTIN: 0758497118882
UPC: 758497118882
EAN: 0758497118882
UNSPSC: 43211701

Recommended Accessories

Category

  • Docks and Cradles (4)
  • Mobile Computer Accessories (1)
  • Scanner Accessories (18)
  • Spare Parts (2)

Recommended Accessories for Model: Socket Mobile CX3809-2569 Barcode Scanner

Top Docks and Cradles Purchased With Socket Mobile CX3809-2569

See All Docks and Cradles for Socket Mobile CX3809-2569 Barcode Scanner >

Top Mobile Computer Accessories Purchased With Socket Mobile CX3809-2569

Top Scanner Accessories Purchased With Socket Mobile CX3809-2569

See All Scanner Accessories for Socket Mobile CX3809-2569 Barcode Scanner >

Top Spare Parts Purchased With Socket Mobile CX3809-2569

Frequently Asked Questions

The SocketScan S740 is a 2D/1D imager barcode scanner capable of reading both one-dimensional and two-dimensional barcodes on paper or screen. This versatility makes it suitable for a wide range of warehouse, retail, and logistics applications where you need to handle multiple barcode formats. We offer this scanner as a reliable solution for mixed-barcode environments.

The SocketScan S740 features a 19.50-inch scan distance, allowing operators to read barcodes from a reasonable working distance without needing to position items directly against the scanner. This range is ideal for warehouse picking, inventory management, and point-of-sale applications where efficiency matters.

Yes, the SocketScan S740 features Bluetooth wireless technology, enabling cordless operation and greater mobility throughout your facility. The wireless connectivity eliminates cable clutter and allows workers to move freely while maintaining connection to your systems. Visit barcodesinc.com to explore our wireless barcode scanner solutions.

The SocketScan S740 is engineered with a long-lasting battery designed to withstand entire work days, ensuring your team stays productive without frequent charging interruptions. The device includes a battery indicator light so operators know when charging is needed. Contact us today to discuss battery performance for your specific operational requirements.

The SocketScan S740 comes in five color options, allowing you to choose a scanner that matches your facility's style and environment needs. Whether you prefer professional black or other available colors, we have options that fit various workplace aesthetics. Available from us in all color variants—contact us today to select your preferred option.

The SocketScan S740 combines a lightweight, ergonomic design with Bluetooth wireless connectivity, making it ideal for warehouse managers and logistics teams who need mobility and comfort during extended use. Its ability to scan both 1D and 2D barcodes, coupled with intuitive status lights for battery, Bluetooth, and scanning notifications, supports efficient inventory operations. We offer this scanner as a proven solution for demanding warehouse and supply chain applications.

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile CX3809-2569 Barcode Scanner is also known as SOC-CX38092569 or CX38092569.
