Socket Mobile DuraSled DS840 – Barcode Scanner

Part Number: CX3645-2296
Model: DuraSled DS840

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Plug-in Card
Scanning Capability
1D2D
Barcode Symbology Supported
1D Symbologies: Codabar Code 39 Code 93 Code 128 EAN-13/JAN 13 EAN-8/JAN 8 GS1 Databar GS1 Databar Expanded GS1 Databar Limited GS1-128 Interleaved 2 of 5 ISBT 128 UPC-A UPC-E UPC-E1 Bookland EAN Chinese 2 of 5 Code 11 Composite CC-A/B Composite CC-C Composite TLC-39 Discrete 2 of 5 Inverse 1D ISSN EAN Matrix 2 of 5 MSI 2D Symbologies: Aztec Data Matrix Maxicode Micro QR Code Micro PDF417 PDF417 QR Code Han Xin Postal Codes: USPS 4CB/One Code/Intelligent Mail Australia Post Japan Postal Netherlands KIX Code UK Postal UPU FICS Postal US Planet US Postnet
Image Sensor Type
Imager

Product Description:

  Socket Mobile DuraSled DS840 Modular Barcode Scanner - Plug-in Card Connectivity - 19.50" Scan Distance - 1D, 2D - Imager - Bluetooth

Socket Mobile DuraSled DS840 Barcode Scanner Model Overview

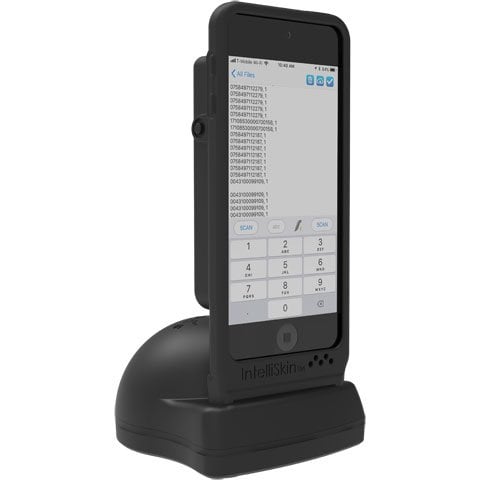

The DuraSled DS840 is a universal barcode scanning sled for 1D/2D barcodes, with Bluetooth wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes and protects devices from tumbles. It is easy-to-use and ideal for delivery services, stock counting, ticketing and other application-driven mobile solutions. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.
Socket Mobile CX3645-2296 Barcode Scanner Overview
"Universal Barcode Scanning Sled

The DuraSled™ DS840 is a universal barcode scanning sled for 1D/2D barcodes, with Bluetooth® wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its rugged case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone/iPod, pair your scanner and you are ready to go. DuraSled supports iPhone 6, 7, 8, iPhone X series, SE 2020, and the entire iPhone 11 and 12 series. This makes it easy for workers to mix and match DuraSled™ solutions for iPhones, all while using the same accessories and application. The core components don't change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years.

The Capture SDK enables easy integration into native, and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.

Certified by Apple® for iOS devices (iPad®, iPhone®, iPod Touch® devices).

Technical Information
Connectivity Technology:
Plug-in Card
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Symbologies:

  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13/JAN 13
  • EAN-8/JAN 8
  • GS1 Databar
  • GS1 Databar Expanded
  • GS1 Databar Limited
  • GS1-128
  • Interleaved 2 of 5
  • ISBT 128
  • UPC-A
  • UPC-E
  • UPC-E1
  • Bookland EAN
  • Chinese 2 of 5
  • Code 11
  • Composite CC-A/B
  • Composite CC-C
  • Composite TLC-39
  • Discrete 2 of 5
  • Inverse 1D
  • ISSN EAN
  • Matrix 2 of 5
  • MSI

2D Symbologies:

  • Aztec
  • Data Matrix
  • Maxicode
  • Micro QR Code
  • Micro PDF417
  • PDF417
  • QR Code
  • Han Xin

Postal Codes:

  • USPS 4CB/One Code/Intelligent Mail
  • Australia Post
  • Japan Postal
  • Netherlands KIX Code
  • UK Postal
  • UPU FICS Postal
  • US Planet
  • US Postnet
Image Sensor Type:
Imager
Scanning Distance:
19.50"
Cable Type Included:
USB
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Modular
Height:
1.2"
Width:
3.1"
Length:
7"
Weight (Approximate):
4.20 oz
Miscellaneous
Package Contents:
  • DuraSled DS840 Modular Barcode Scanner
  • 1 x GDS Charging Dock
  • 1 x USB Cable
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497116703
UPC: 758497116703
EAN: 0758497116703
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile CX3645-2296 Barcode Scanner is also known as SOC-CX36452296 or CX36452296.
