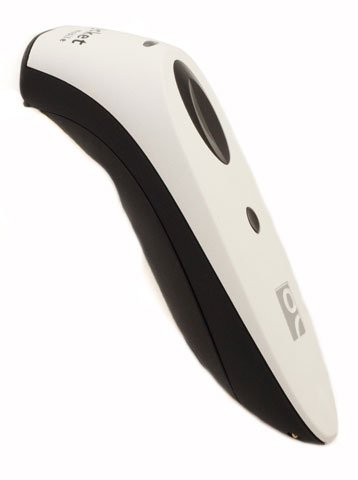

Socket Mobile CX3316-1536 Barcode Scanner

Socket Mobile CX3419-1838 Barcode Scanner A newer version of this item is available.
It is replaced by the Socket Mobile CX3419-1838 Barcode Scanner.
Socket Mobile CHS 7Qi - Socket CHS 7Qi, iOS, Android, 2D, White-Antimicrobial with Batteries, AC Adapter, Charging Cable, Lanyard - Wireless Connectivity - 15.98" Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - White
Connectivity
Cordless, iOS/Android
Scanner Capability
2D
Scanner Type
CCD, Imager
  • Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens
  • Scans barcodes in any direction
  • Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the trigger button
  • Connects easily to a wide range of Bluetooth enabled smartphones, tablets, notebook and desktop computers
  • Enjoy wireless freedom with robust Bluetooth connectivity
  • Battery Friendly® technology enables battery lasting a full work shift
  • Ergonomic - Small and Lightweight. Fits perfectly in the hand for comfortable use over extended periods
  • Made with antimicrobial material for protection against potential harmful bacteria
  • Wearable - Includes lanyard / belt clip for convenient access wherever you go
Read More

Need a different version? See all Socket Mobile CHS 7Qi Barcode Scanners

Discontinued See Replacement
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner
Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner Socket Mobile CX3316-1536 Barcode Scanner
Full specifications (PDF)
Socket Mobile CHS 7Qi Barcode Scanner Model Overview
Minimize manual data entry with the Socket CHS 7Qi, a portable 2D and 1D barcode scanner certified by Apple for the iPad, iPad mini, iPhone and iPod touch. Small, lightweight and comfortable to hold, the CHS 7Qi connects wirelessly to the latest smartphones and tablets and can scan barcodes printed on labels or displayed on device screens. It's ideal for retail point of sale, inventory management, and other mobile scanning applications.
Socket Mobile CX3316-1536 Barcode Scanner Overview
Minimize manual data entry with the Socket Mobile CHS 7Qi, a high-performance 2D and 1D Bluetooth barcode scanner. Small, lightweight, and comfortable to hold. The CHS 7Qi can scan barcodes printed on labels or displayed on device screens. Easy to connect, it's ideal for retail, asset tracking, field service or other mobile scanning applications requiring 2D barcode support.

The CHS 7Qi with the Socket Mobile QX Stand come with added intelligence which lets you take full advantage of a (Presentation Mode) or "Grab & Go" feature for fast-moving environments. You can go from scanning by hand or scanning using the stand in seconds with the 7Qi or 7Xi.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Bookland EAN (ISBN / EAN-13)
  • Codabar (Including ISBT 128 Bit Concatenation)
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • GS1 DataBar (RSS)
  • GS1-128 (UCC-128/EAN-128)
  • Interleaved 2 of 5 (ITF-14)
  • MSI
  • Plessey
  • UPC/EAN
2D:
  • Aztec
  • Codablock
  • Data Matrix
  • GS1 (EAN.UCC)
  • Matrix 2 of 5
  • Maxicode
  • PDF 417
  • Macro PDF 417
  • Micro PDF 417
  • QR Code
  • Standard 2 of 5
  • Telepen
  • TLCode 39
Postal:
  • Australia Post
  • BPO 4
  • Canada Post
  • Dutch Post (KIX)
  • Japan Post
  • Planet
  • Postnet
  • RM4SCC
  • Sweden Post
  • TLCode 39
  • 4 State Code
  • USPS Intelligent Mail
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
15.98"
Network & Communication
Bluetooth:
Yes
Power Description
Power Source:
Battery
Battery Information
Number of Batteries Supported:
1
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
1000
Battery Rechargeable:
Yes
Physical Characteristics
Color:
White
Height:
5.1"
Width:
1.4"
Depth:
1.6"
Weight (Approximate):
1.59 oz
Miscellaneous
Package Contents:
  • CHS 7Qi, White
  • Rechargeable Batteries
  • USB AC Charger Kit
  • Lanyard/Belt Clip with Retractable Tether,
  • Software
Additional Information:

USB Cable separate

Platform Supported:
  • iOS
  • Android
  • PC
  • Mac
  • Smartphone
Certifications & Standards:

Electrical Safety:

  • IEC 60950-1
  • UL 60950-1
  • CAN/CSA C22.2

EMI / RFI:

  • FCC Part 15 Class C
  • RSS 210
  • iCES 003
  • C-Tick
  • CISPR 22
  • CE EN55022
  • EN55024
  • TELEC

Laser / LED Safety:

  • IEC 60825-1
  • EN 60825-1
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0735548696247, 0758497033161
UPC: 735548696247, 758497033161
EAN: 0735548696247, 0758497033161
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile CX3316-1536 Barcode Scanner is also known as CX33161536
