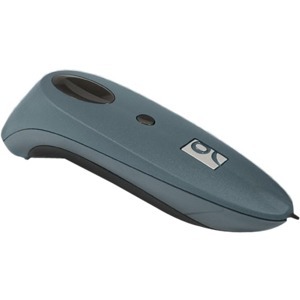

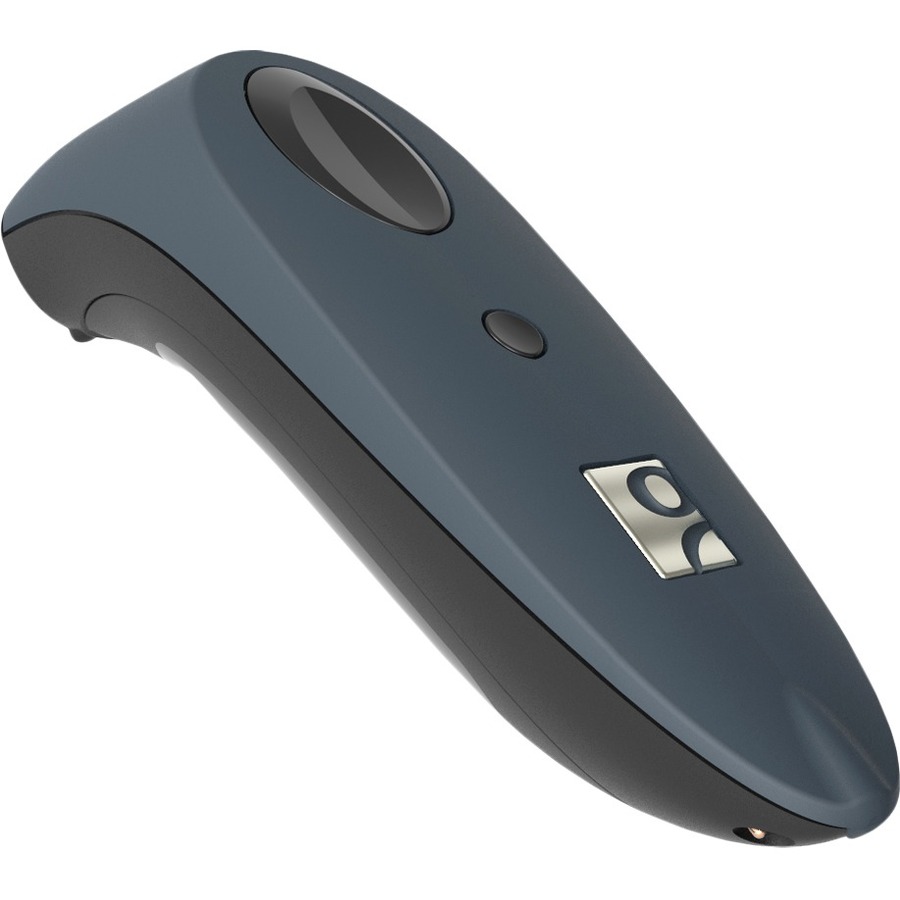

Socket Mobile CX2870-1409 Barcode Scanner

Socket Mobile CHS 7Ci - 1D Linear Imager, Cordless, Vibrate. Cradle not included (Part# AC4054-1381). Color: Gray. Works with Apple iOS (iPad, iPhone, iPod) and Android.
  • Reads all common 1D / linear and stacked barcodes up to 20" (51 cm) away
  • Connects easily to a wide range of Bluetooth enabled smartphones, tablets, notebook and desktop computers
  • Enjoy wireless freedom with robust Bluetooth connectivity
  • Lasts a full work shift - 14-hour battery life
  • Ergonomic - Small and lightweight. Fits perfectly in the hand for comfortable use over extended periods
  • Wearable - Includes lanyard / belt clip for convenient access wherever you go
  • Color options (Blue, Gray, Green, Red, White, Yellow) enables corporate branding personalization and is easy to find in busy work environments
  • No software installation required - use Bluetooth HID mode to connect like a wireless keyboard
  • Advanced functionality and scanner configuration supported in Bluetooth SPP mode with SocketScan 10 keyboard wedge software (included)
Read More

Full specifications (PDF)

Designed for mobility
The Socket-Mobile Bluetooth Cordless Hand Scanner 7Ci brings low cost 1D wireless barcode scanning without sacrificing performance in addition to being an Apple certified product. The Cordless Hand Scanner 7Ci incorporates long-range Bluetooth enabling wireless barcode scanning in a pocket-size and lightweight design, making the Cordless Hand Scanner 7Ci an excellent general purpose data collection solution for the mobile workforce. With its ergonomic design and long battery life, the Cordless Hand Scanner 7Ci can be used over extended periods on a single charge. The Cordless Hand Scanner 7Ci reads all 1D barcodes directly off the LCD screen of computers or mobile devices and also reads poorly printed or damaged barcodes.
Socket Mobile CX2870-1409 Overview
Minimize manual data entry with the Socket Mobile CHS 7Ci, a 1D Bluetooth barcode scanner. Small, lightweight, and comfortable to hold. The CHS 7Ci can scan barcodes printed on labels or displayed on device screens. Easy to connect, it's ideal for retail, asset tracking, field service or other mobile scanning applications.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • Bookland EAN (ISBN / EAN-13)
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • GS1 DataBar (RSS)
  • GS1-128 (UCC-128/EAN-128)
  • Interleaved 2 of 5 (ITF-14)
  • MSI
  • Plessey
  • UPC/EAN
  • UPC/EAN/JAN supplemental redundancy
  • Coupon Report
  • ISSN EAN
  • Inverse 1D
  • ISBT concatenations
  • Matrix 2 of 5
Image Sensor Type:
Imager
Scan Rate:
5 scan/s
Scan Pattern:
Linear
Scanning Distance:
20"
Network & Communication
Bluetooth:
Yes
Power Description
Power Source:
Battery
Battery Information
Number of Batteries Supported:
2
Battery Size Supported:
AAA
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Maximum Number of Scans per Full Charge:
15000
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Handheld
Color:
Gray
Height:
5.1"
Width:
1.4"
Depth:
1.6"
Weight (Approximate):
1.60 oz
Miscellaneous
Package Contents:
  • CHS 7Ci, 1D Barcode Scanner, Gray
  • 2 x AAA Rechargeable Batteries
  • USB AC Charger Kit
  • Lanyard/Belt Clip with Retractable Tether
  • Software
Additional Information:

USB Cable separate

Platform Supported:
  • iOS
  • Android
  • PC
  • Mac
  • Smartphone
Certifications & Standards:
Electrical Safety:
  • IEC 60950-1
  • UL 60950-1
  • CAN/CSA C22.2
EMI / RFI:
  • FCC Part 15 Class C
  • RSS 210
  • iCES 003
  • C-Tick
  • CISPR 22
  • CE EN55022
  • EN55024
  • TELEC
Laser / LED Safety:
  • IEC 60825-1
  • EN 60825-1
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0003813304402, 0758497028709, 5711045812460, 7426701825866
UPC: 003813304402, 758497028709
EAN: 0003813304402, 0758497028709, 5711045812460, 7426701825866
UNSPSC: 43211701
