Socket Mobile 7XiRx – Barcode Scanner – Cordless, iOS/Android – 1D

Part Number: CX2866-1338
Model: 7XiRx

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless, iOS/Android
Form Factor
Handheld
Interface Options
Bluetooth
Scanner Capability
1D

Product Description:

  Soclet CHS 7XiRx, iOS, Android, 2D, Durable, Antimicrobial with Batteries, AC Adapter, Charging Cable, Lanyard - Wireless Connectivity - 16" Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - White

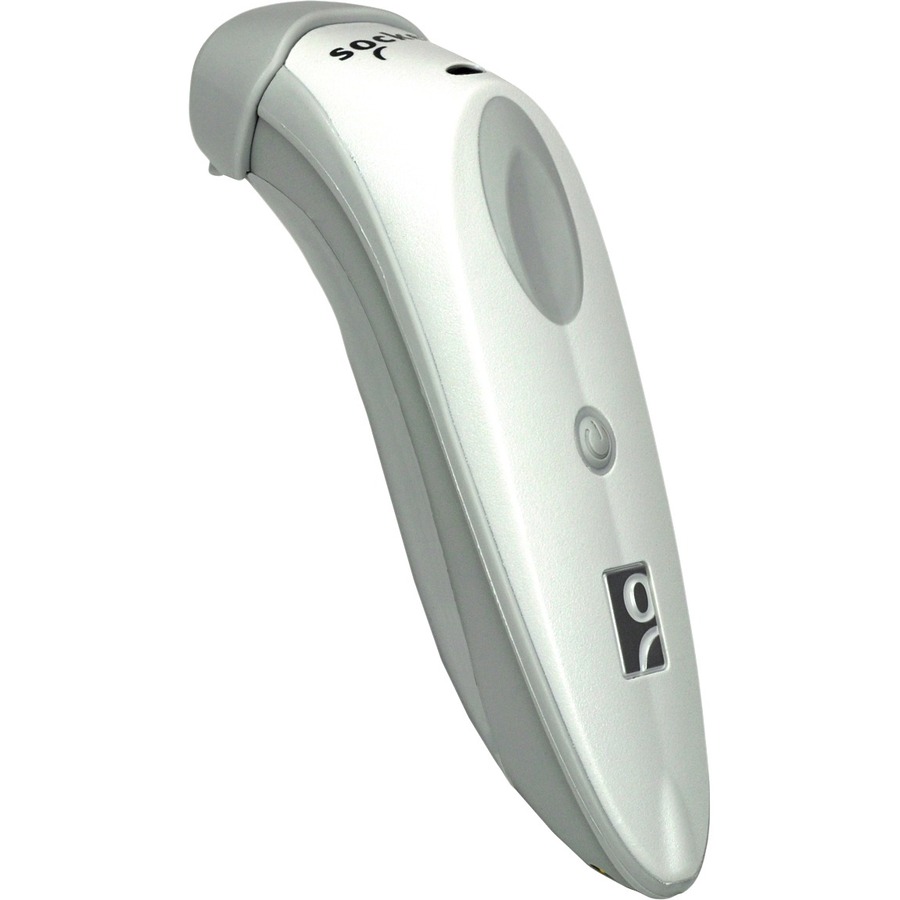

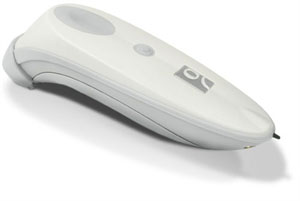

Socket Mobile Cordless Hand Scanner 7XiRx Barcode Scanner Model Overview

The Socket-Mobile Cordless Hand Scanner 7XiRx takes 2D bar code scanning to another level delivering superior high-density scanning performance and long-range Bluetooth all in a pocket-sized, ergonomic, and extra durable enclosure. The Cordless Hand Scanner 7XiRx is designed specifically for the healthcare industry because is built with microbial materials. The Bluetooth feature on the Cordless Hand Scanner 7XiRx is secure and allows for long-range connections that go up to 330ft/100m. This device also comes equipped with an omni-directional imager which reads 2D & 1D barcodes in any direction and can also scan barcodes being displayed on LCD screens. The Cordless Hand Scanner 7XiRx also supports multiple platforms like Apple iOS, Android, Blackberry and Windows.
Socket Mobile CX2866-1338 Barcode Scanner Overview

Minimize manual data entry with the Socket Mobile CHS 7Xi, a high-performance 2D and 1D Bluetooth barcode scanner. Small, lightweight, and comfortable to hold. The CHS 7Xi can scan barcodes printed on labels or displayed on device screens. The rubber bumper and sealed reinforcements make the CHS 7Xi durable to withstand multiple 6.6ft (2m) drops to concrete. Easy to connect, it's ideal for retail, asset tracking, field service or other mobile scanning applications requiring 2D barcode support.

The CHS 7Xi with the Socket Mobile QX Stand come with added intelligence which lets you take full advantage of a "Grab & Go" feature for fast-moving environments. You can go from scanning by hand or scanning using the stand in seconds with the 7Xi.

Certified by Apple® for iOS devices (iPad®, iPhone®, iTouch®) and compatible with Android, BlackBerry® and Windows® smartphones and tablets.
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Bookland EAN (ISBN / EAN-13)
  • Codabar (including ISBT 128 bit concatenation)
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • GS1 DataBar (RSS)
  • GS1-128 (UCC-128/EAN-128)
  • Interleaved 2 of 5 (ITF-14)
  • MSI, Plessey
  • UPC/EAN

2D:

  • Aztec
  • Codablock
  • Data Matrix
  • GS1 (EAN.UCC)
  • Matrix 2 of 5
  • Maxicode
  • PDF 417/ Macro PDF 417/ Micro PDF 417
  • QR Code
  • Standard 2 of 5
  • Telepen
  • TLCode 39

Postal:

  • Australia Post
  • BPO 4
  • Canada Post
  • Dutch Post (KIX)
  • Japan Post
  • Planet
  • Postnet
  • RM4SCC
  • Sweden Post
  • TLCode 39
  • 4 State
  • Code
  • USPS Intelligent Mail
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
16"
Network & Communication
Bluetooth:
Yes
Power Description
Input Voltage:
3.7 V DC
Power Source:
Battery
Battery Information
Number of Batteries Supported:
1
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
1000
Battery Rechargeable:
Yes
Physical Characteristics
Color:
White
Height:
5.2"
Width:
1.5"
Depth:
1.8"
Weight (Approximate):
2.40 oz
Miscellaneous
Package Contents:
  • CHS 7XiRxi -Bluetooth 2D/1D Imager Barcode Scanner
  • Rechargeable Battery (Pre-Installed)
  • USB AC Charger Kit
  • Lanyard/Belt Clip
  • Software Media
Additional Information:

USB Cable separate

Platform Supported:
  • Mac
  • PC
  • iOS
  • Android
  • Smartphone
Certifications & Standards:

Electrical Safety / Environmental:

  • IEC 60950-1
  • UL 60950-1
  • CAN/CSA C22.2

EMI / RFI:

  • FCC Part 15 Class C
  • RSS 210
  • iCES 003
  • C-Tick
  • CISPR 22
  • CE EN55022
  • EN55024
  • TELEC

Laser / LED Safety:

  • IEC 60825-1
  • EN 60825-1
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497028662
UPC: 758497028662
EAN: 0758497028662
UNSPSC: 43211701
