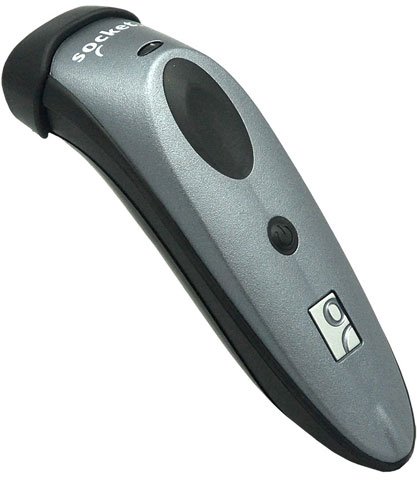

Socket Mobile 7Xi – Barcode Scanner – Cordless – 1D

Part Number: CX2865-1337
Model: 7Xi

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Form Factor
Handheld
Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Socket 7Xi Handheld Bar Code Reader - DISCONTINUED - Wireless Connectivity - 16" Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - Gray

Socket Mobile Cordless Hand Scanner 7Xi Barcode Scanner Model Overview

The Socket-Mobile Cordless Hand Scanner 7Xi takes 2D bar code scanning to another level delivering superior high-density scanning performance and long-range Bluetooth all in a pocket-sized, ergonomic, and extra durable enclosure. The Bluetooth feature on the Cordless Hand Scanner 7Xi is secure and allows for long-range connections that go up to 330ft/100m. This device also comes equipped with an omni-directional imager which reads 2D & 1D barcodes in any direction and can also scan barcodes being displayed on LCD screens. The Cordless Hand Scanner 7Xi also supports multiple platforms like Apple iOS, Android, Blackberry and Windows.
Socket Mobile CX2865-1337 Barcode Scanner Overview

Socket Bluetooth CHS 7Xi / 7XiRx takes 2D bar code scanning to another level delivering superior scanning performance and long-range Bluetooth all in a pocket-sized, ergonomic, and extra durable enclosure. The CHS 7XiRx, designed for healthcare, also features antimicrobial materials embedded in the enclosure to provide an extra layer of protection to the product against the multiplication and spread of potentially harmful bacteria and microbes.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Bookland EAN (ISBN / EAN-13)
  • Codabar (including ISBT 128 bit concatenation)
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • GS1 DataBar (RSS)
  • GS1-128 (UCC-128/EAN-128)
  • Interleaved 2 of 5 (ITF-14)
  • MSI, Plessey
  • UPC/EAN

2D:

  • Aztec
  • Codablock
  • Data Matrix
  • GS1 (EAN.UCC)
  • Matrix 2 of 5
  • Maxicode
  • PDF 417/ Macro PDF 417/ Micro PDF 417
  • QR Code
  • Standard 2 of 5
  • Telepen
  • TLCode 39

Postal:

  • Australia Post
  • BPO 4
  • Canada Post
  • Dutch Post (KIX)
  • Japan Post
  • Planet
  • Postnet
  • RM4SCC
  • Sweden Post
  • TLCode 39
  • 4 State
  • Code
  • USPS Intelligent Mail
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
16"
Network & Communication
Bluetooth:
Yes
Power Description
Input Voltage:
3.7 V DC
Power Source:
Battery
Battery Information
Number of Batteries Supported:
1
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
1000
Battery Rechargeable:
Yes
Physical Characteristics
Color:
Gray
Height:
5.2"
Width:
1.5"
Depth:
1.8"
Weight (Approximate):
3.20 oz
Miscellaneous
Package Contents:
  • Bluetooth Cordless Hand Scanner (CHS)
  • Rechargeable Battery (pre-installed)
  • USB AC Charger Kit
  • Lanyard
  • Software
Additional Information:

USB Cable separate

Platform Supported:
  • Mac
  • PC
  • iOS
  • Android
  • Smartphone
Certifications & Standards:

Electrical Safety / Environmental:

  • IEC 60950-1
  • UL 60950-1
  • CAN/CSA C22.2

EMI / RFI:

  • FCC Part 15 Class C
  • RSS 210
  • iCES 003
  • C-Tick
  • CISPR 22
  • CE EN55022
  • EN55024
  • TELEC

Laser / LED Safety:

  • IEC 60825-1
  • EN 60825-1
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497028655
UPC: 758497028655
EAN: 0758497028655
UNSPSC: 43211701
