Socket Mobile CX2864-1336 Barcode Scanner

Socket Mobile CX3426-1872 Barcode Scanner A newer version of this item is available.
It is replaced by the Socket Mobile CX3426-1872 Barcode Scanner.
Socket Mobile 7Xi - Socket Mobile CHS 7Xi, iOS, Android, 2D, Durable, Gray with Batteries, AC Adapter, Charging Cable, Lanyard - Wireless Connectivity - 16" Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - Gray
  • Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens
  • Scans barcodes in any direction
  • Connects easily to a wide range of Bluetooth enabled smartphones, tablets, notebook and desktop computers
  • Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the trigger button
  • Enjoy wireless freedom with long-range Bluetooth connection of 330 ft. (100m)
  • Battery Friendly® technology enables battery lasting a full work shift
  • Durable to withstand multiple 6.6ft (2m) drops to concrete
  • Ergonomic - Small and Lightweight. Fits perfectly in the hand for comfortable use over extended periods
  • Made with antimicrobial material for protection against potential harmful microbes
Read More

Need a different version? See all Socket Mobile Cordless Hand Scanner 7Xi Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Socket Mobile CX2864-1336 Barcode Scanner
Socket Mobile CX2864-1336 Barcode Scanner Socket Mobile CX2864-1336 Barcode Scanner Socket Mobile CX2864-1336 Barcode Scanner Socket Mobile CX2864-1336 Barcode Scanner
Socket Mobile CX2864-1336 Barcode Scanner
Socket Mobile CX2864-1336 Barcode Scanner
Socket Mobile CX2864-1336 Barcode Scanner
Socket Mobile CX2864-1336 Barcode Scanner
Full specifications (PDF)

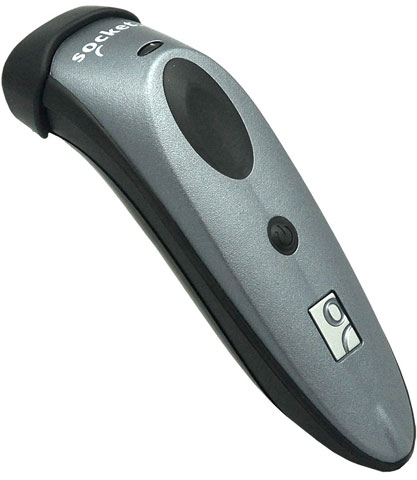

Socket Mobile Cordless Hand Scanner 7Xi Barcode Scanner Model Overview
The Socket-Mobile Cordless Hand Scanner 7Xi takes 2D bar code scanning to another level delivering superior high-density scanning performance and long-range Bluetooth all in a pocket-sized, ergonomic, and extra durable enclosure. The Bluetooth feature on the Cordless Hand Scanner 7Xi is secure and allows for long-range connections that go up to 330ft/100m. This device also comes equipped with an omni-directional imager which reads 2D & 1D barcodes in any direction and can also scan barcodes being displayed on LCD screens. The Cordless Hand Scanner 7Xi also supports multiple platforms like Apple iOS, Android, Blackberry and Windows.

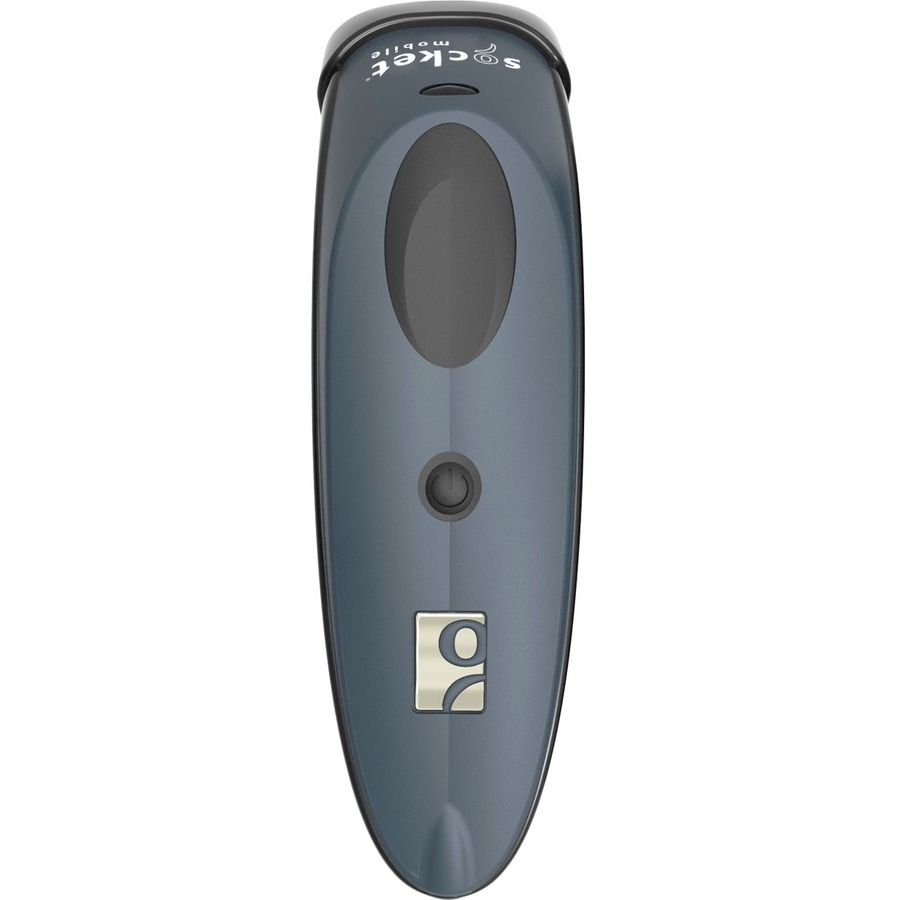

Socket Mobile CX2864-1336 Barcode Scanner Overview
Minimize manual data entry with the Socket Mobile CHS 7Qi, a high-performance 2D and 1D Bluetooth barcode scanner. Small, lightweight, and comfortable to hold. The CHS 7Qi can scan barcodes printed on labels or displayed on device screens. Easy to connect, it's ideal for retail, asset tracking, field service or other mobile scanning applications requiring 2D barcode support.

The CHS 7Qi with the Socket Mobile QX Stand come with added intelligence which lets you take full advantage of a (Presentation Mode) or "Grab & Go" feature for fast-moving environments. You can go from scanning by hand or scanning using the stand in seconds with the 7Qi or 7Xi.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Bookland EAN (ISBN / EAN-13)
  • Codabar (including ISBT 128 bit concatenation)
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • GS1 DataBar (RSS)
  • GS1-128 (UCC-128/EAN-128)
  • Interleaved 2 of 5 (ITF-14)
  • MSI, Plessey
  • UPC/EAN

2D:

  • Aztec
  • Codablock
  • Data Matrix
  • GS1 (EAN.UCC)
  • Matrix 2 of 5
  • Maxicode
  • PDF 417/ Macro PDF 417/ Micro PDF 417
  • QR Code
  • Standard 2 of 5
  • Telepen
  • TLCode 39

Postal:

  • Australia Post
  • BPO 4
  • Canada Post
  • Dutch Post (KIX)
  • Japan Post
  • Planet
  • Postnet
  • RM4SCC
  • Sweden Post
  • TLCode 39
  • 4 State
  • Code
  • USPS Intelligent Mail
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
16"
Network & Communication
Bluetooth:
Yes
Power Description
Input Voltage:
3.7 V DC
Power Source:
Battery
Battery Information
Number of Batteries Supported:
1
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
1000
Battery Rechargeable:
Yes
Physical Characteristics
Color:
Gray
Height:
5.2"
Width:
1.5"
Depth:
1.8"
Weight (Approximate):
3.20 oz
Miscellaneous
Package Contents:
  • CHS 7Xi, Gray
  • Rechargeable Battery (pre-installed)
  • USB AC Charger Kit
  • Lanyard/Belt Clip
  • Software
Additional Information:

USB Cable separate

Platform Supported:
  • Mac
  • PC
  • iOS
  • Android
  • Smartphone
Certifications & Standards:

Electrical Safety / Environmental:

  • IEC 60950-1
  • UL 60950-1
  • CAN/CSA C22.2

EMI / RFI:

  • FCC Part 15 Class C
  • RSS 210
  • iCES 003
  • C-Tick
  • CISPR 22
  • CE EN55022
  • EN55024
  • TELEC

Laser / LED Safety:

  • IEC 60825-1
  • EN 60825-1
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497028648, 0808112936831
UPC: 758497028648, 808112936831
EAN: 0758497028648, 0808112936831
UNSPSC: 43211701
