Socket Mobile 7E – Barcode Scanner – 1D

Part Number: CX2804-493
Model: 7E
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Bluetooth Serial Port Profile kit, Includes AC Charger with plugs for U.S., Europe, U.K., Australia, 2 NiMH rechargeable AAA batteries, Installation CD, Lanyard/belt clip with retractable tether (not available in Europe/Middle East/Africa region)
Explore all Socket Mobile Cordless Hand Scanner 7E Barcode Scanners
Add to Quote
Socket Mobile CX2804-493 Barcode Scanner
Socket Mobile CX2804-493 Barcode Scanner
Socket Mobile CX2804-493 Barcode Scanner
Socket Mobile CX2804-493 Barcode Scanner
Socket Mobile CX2804-493 Barcode Scanner Socket Mobile CX2804-493 Barcode Scanner Socket Mobile CX2804-493 Barcode Scanner Socket Mobile CX2804-493 Barcode Scanner
Full specifications (PDF)

Socket Mobile Cordless Hand Scanner 7E Barcode Scanner Model Overview

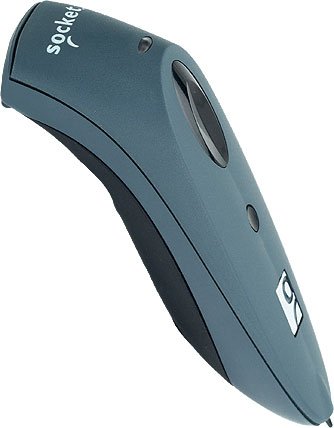

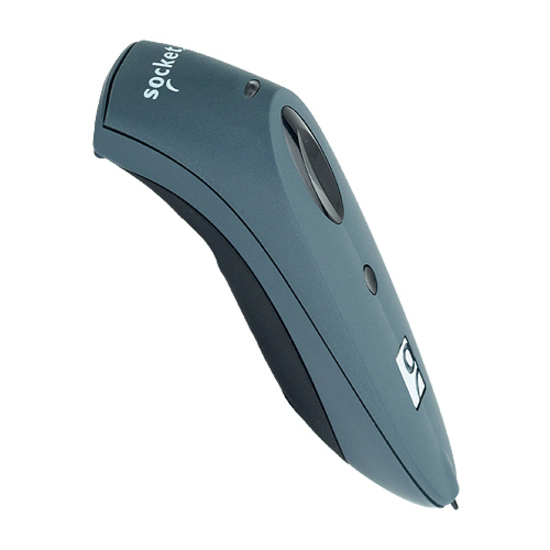

The innovative Cordless Hand Scanner 7E from Socket combines Linear CMOS barcode scanning and the convenience of Bluetooth wireless technology in a single, compact, lightweight device that is ergonomically designed to fit comfortably in the palm of your hand. The Class-1 Bluetooth radio provides a maximum range of 330 ft (100 m). Powered by 2 rechargeable AAA NiMH batteries, Cordless Hand Scanner 7E consumes minimal power and offers an expected battery life of 8,000 scans under normal operating conditions. SocketScan keyboard emulation software sends scanned data into any Windows, Palm, Symbian or RIM program. The exclusive error-proof protocol prevents errors in wireless transmission of data to the host computer with real-time data validation. The device also incorporates a built-in stylus tip for PDA touch screens and a battery status warning light.
Socket Mobile CX2804-493 Barcode Scanner Overview

Cordless Hand Scanner (CHS) 7E works with Bluetooth enabled Pocket PCs, Black Berrys, Palm PDAs, Symbian Smartphones, and Windows XP systems. SocketScan software sends scanned data directly into application. Entry Level CHS 7E CMOS linear imaging for basic performance in good scanning conditions.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • D 2 of 5
  • I 2 of 5
  • MSI
  • UPC/EAN
Image Sensor Type:
CMOS
Scan Rate:
50 scan/s
Scanning Distance:
24"
Network & Communication
Bluetooth:
Yes
Power Description
Power Source:
Battery
Battery Information
Number of Batteries Supported:
2
Battery Size Supported:
AAA
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Maximum Number of Scans per Full Charge:
8000
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Handheld
Height:
1.2"
Width:
1.4"
Length:
4.9"
Weight (Approximate):
1.80 oz
Miscellaneous
Package Contents:
  • Cordless Hand Scanner With Bluetooth Wireless Technology
  • Lanyard/Belt Clip with Retractable Tether
  • AC Charger with Plugs for U.S., Europe, U.K., Australia
  • 2 x NiMH Rechargeable AAA Batteries
  • Installation CD
Additional Information:

Supported Interfaces: Bluetooth

USB Cable separate

Platform Supported:
  • PC
  • Smartphone
Certifications & Standards:
  • FCC: Part 15, Class B
  • CE: EN55024:1998
  • C-TICK: s.182
  • Bluetooth 1.1
  • TELEC
  • ETS 300 328
  • ETS 300 826
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497028044
UPC: 758497028044
EAN: 0758497028044
UNSPSC: 43211701
