SIIG SC-SAT212-S4 Products

The SIIG SC-SAT212-S4 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
SIIG PC Card - SIIG Serial ATA PCI - 2 x 7-pin Serial ATA Internal
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
SIIG PC Card Products Model Overview
PCI, PCMCIA, and other cards for computers
SIIG SC-SAT212-S4 Products Overview

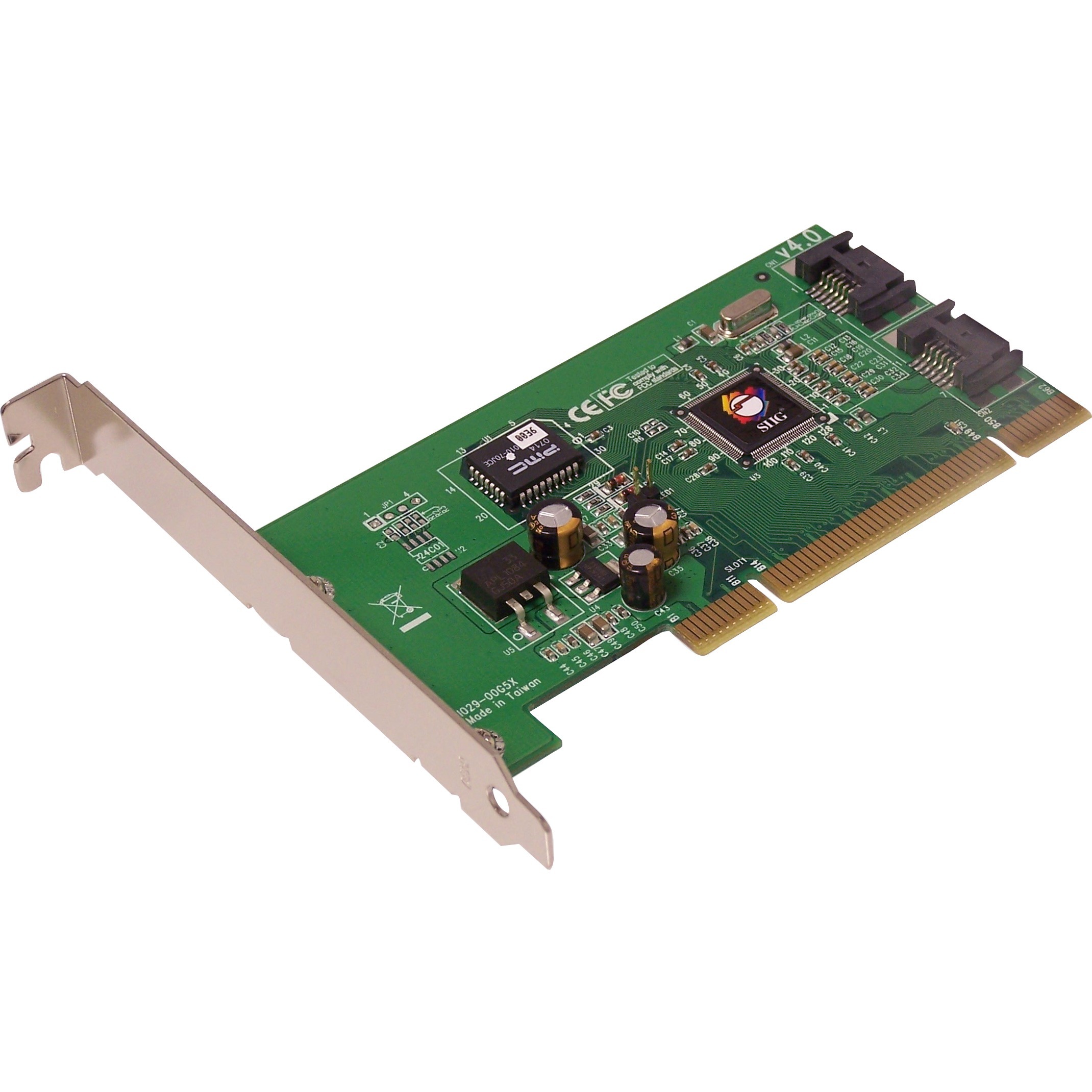

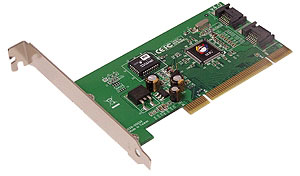

SIIG's Serial ATA PCI host adapter is an ideal solution for expanding your SATA storage capacity to your desktop computer. It is designed to add two SATA channels for connecting up to two additional SATA hard disk drives. The Serial ATA PCI host adapter delivers data transfer rates of up to 1.5Gb/s and breaks the barrier to support hard disk drives larger than 137GB. It comes with two independent bus master DMA channels with 256-byte FIFOs per channel for host reads and writes and flash memory BIOS making future upgrades possible. It can be configured as a boot or secondary controller and co-exists with on-board Ultra ATA controllers.

This 2-channel Serial ATA host adapter is powered by Silicon Image chipset and is fully compliant with industry standards, including Serial ATA Specification, Revision 1.0 and PCI Specification, Revision 2.3. It also carrries FCC Class B (DoC) & CE regulatory approvals and is RoHS-compliant.

The Serial ATA PCI host adapter comes with a thin, flexible Serial ATA cable for user-friendly installation and better air circulation, a 15-pin SATA power cable, a driver CD and a comprehensive user's manual. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.

Technical Information
Host Interface:
PCI
Controller Type:
Serial ATA/150
Number of Physical Drive Supported:
2
Interfaces/Ports
Total Number of SATA Ports:
2
Number of SATA Ports (Internal):
2
Physical Characteristics
Height:
4.8"
Width:
5.3"
Thickness:
0.8"
Card Height:
Low-profile
Miscellaneous
Package Contents:
  • Serial ATA PCI
  • 1 x Serial ATA Cable
  • 1 x SATA 15-pin Power Cable
  • Driver CD
  • User's Manual
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0177598278149, 0662774025728
UPC: 177598278149, 662774025728
EAN: 0177598278149, 0662774025728
UNSPSC: 43201407
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The SIIG SC-SAT212-S4 Products is also known as SC-SAT212-S4
