Host Interface:
PCI Express x1
Controller Type:
Serial ATA/300
Number of Physical Drive Supported:
2
SIIG PC Card Products Model Overview
PCI, PCMCIA, and other cards for computers

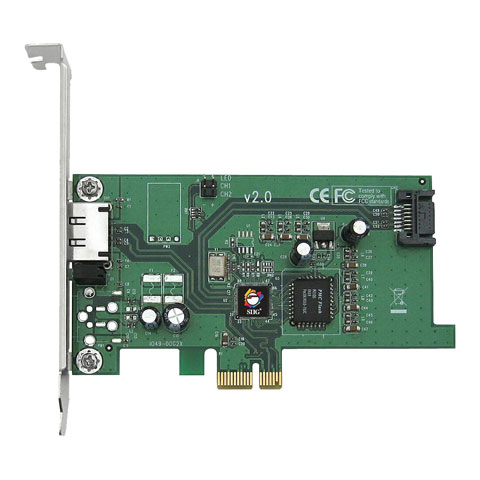

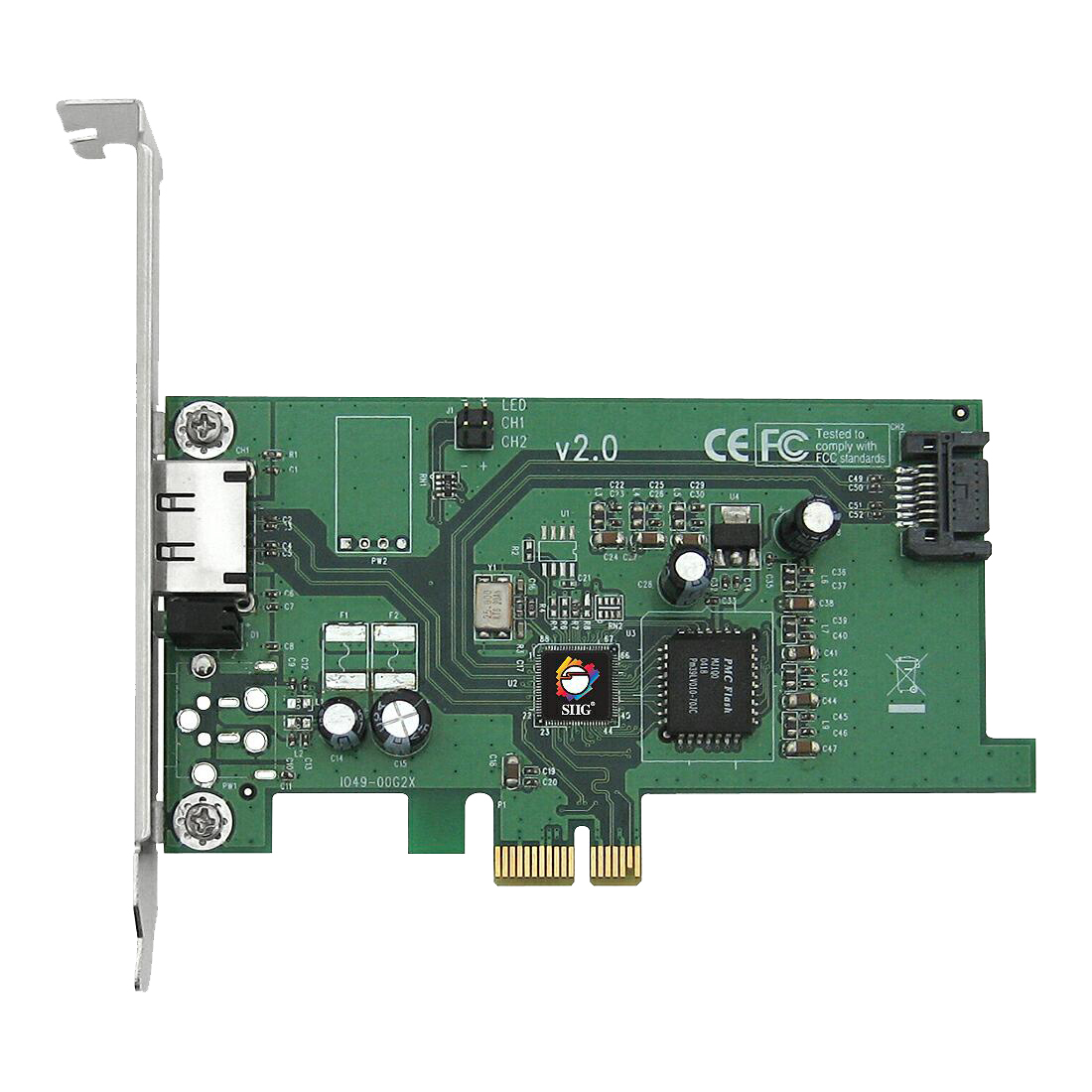

SIIG SC-SAE212-S2 Products Overview
SIIG's eSATA II PCIe i/e controller card is designed to add two SATA channels (one internal and one external) for connecting up to two additional SATA hard disk drives. The eSATA II PCIe i/e controller card features the latest eSATA connector, delivers data transfer rates of up to 3.0Gb/s, and supports 48-bit LBA for drives with capacity larger than 137GB. Additional features include independent command fetch, scatter/gather, command execution, Native Command Queuing (NCQ), Non-zero offsets NCQ, Out-of-order data delivery NCQ, and hard disk hot-plugging ensure fast and reliable data transfers.
The eSATA II PCIe i/e controller card comes with the included spare low profile bracket for installing into either standard height or low profile system chassis. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.
Technical Information
Interfaces/Ports
Total Number of SATA Ports:
2
Number of SATA Ports (Internal):
1
Number of SATA Ports (External):
1
Physical Characteristics
Form Factor:
Plug-in Card
Miscellaneous
Package Contents:
- eSATA II PCIe i/e Adaptor
- Spare enhanced low profile bracket
- Serial ATA cable
- Serial ATA power cable
- Driver CD
- User's manual
Additional Information:
- Compliant with PCI Express Base Specification Revision 1.0a
- Compliant with Serial ATA 1.0a specification with support for complement of SATA II optional features
- Compliant with eSATA (external SATA) connector specification
- Installs in any available PCI Express slot and supports data transfer rates up to 3.0Gbps (300MBps)
- Supports 48-bit LBA for drives with capacity larger than 137GB
- Integrated Serial ATA Link and PHY logic
- Supports two independent Serial ATA channels
- Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order data delivery NCQ
- Independent command fetch, scatter/gather, and command execution
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0662774025551, 0818253812819, 0843643459589
UPC:
662774025551, 818253812819, 843643459589
EAN:
0662774025551, 0818253812819, 0843643459589
UNSPSC:
43201407
Get help from a Barcoding Expert!
The SIIG SC-SAE212-S2 Products is also known as
SC-SAE212-S2
