SIIG SC-SAE012-S2

SIIG - SC-SAE012-S2 2-port PCI Express Serial ATA Controller - 2 x Serial ATA/300 Serial ATA
$39.99
Temporarily out of stock; available to order
PCI, PCMCIA, and other cards for computers

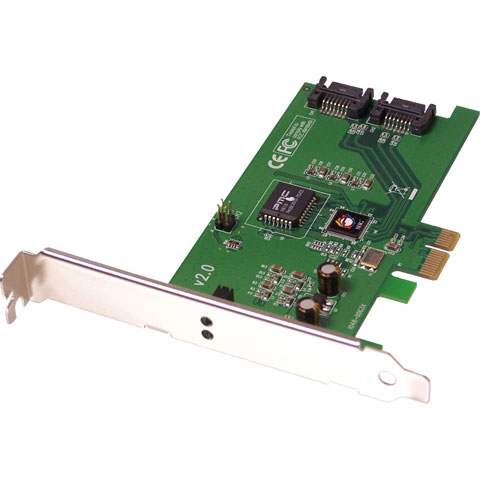

SIIG SC-SAE012-S2 Overview

SIIG's SATA II PCIe host controller is designed to add two SATA channels for connecting up to two additional SATA hard disk drives. The SATA II PCIe host controller delivers data transfer rates of up to 3.0 Gb/s and supports 48-bit LBA for drives with capacity larger than 137GB. Additional features include independent command fetch, scatter/gather, command execution, Native Command Queuing (NCQ), Non-zero offsets NCQ, Out-of-order data delivery NCQ, and hard disk hot-plugging ensure fast and reliable data transfers.

The Serial ATA II PCIe comes with a spare low profile bracket to allow it to be installed in either standard height or low profile systems. It is fully compliant with PCI Express Base Specification Revision 1.0a, Serial ATA 1.0a specification, and is also FCC Class B (DoC) & CE regulatory approved and RoHS-compliant. In addition, this controller is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.

Protect Your Product
Technical Information
Host Interface:
PCI Express x1
Controller Type:
Serial ATA/300
Number of Physical Drive Supported:
2
Interfaces/Ports
Total Number of SATA Ports:
2
Physical Characteristics
Form Factor:
Plug-in Card
Miscellaneous
Package Contents:
  • SC-SAE012-S2 2-port PCI Express Serial ATA Controller
  • Spare Enhanced Low Profile Bracket
  • Serial ATA Data Cable (50cm)
  • SATA 15-pin Power Cable
  • Driver CD
  • User's Manual
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0025217820401, 0042111899029, 0141291059626, 0662774025667, 0818253701212
UPC: 025217820401, 042111899029, 141291059626, 662774025667, 818253701212
EAN: 0025217820401, 0042111899029, 0141291059626, 0662774025667, 0818253701212
UNSPSC: 43201407


The SIIG SC-SAE012-S2 is also known as SC-SAE012-S2 or SCSAE012S2 .
