SIIG SC-PE4B12-S4 Products

Part Number: SC-PE4B12-S4
Model: PC Card

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Host Interface
PCI
Controller Type
Ultra ATA/133 (ATA-7)
Number of Physical Drive Supported
2
Total Number of IDE Ports
2

Product Description:

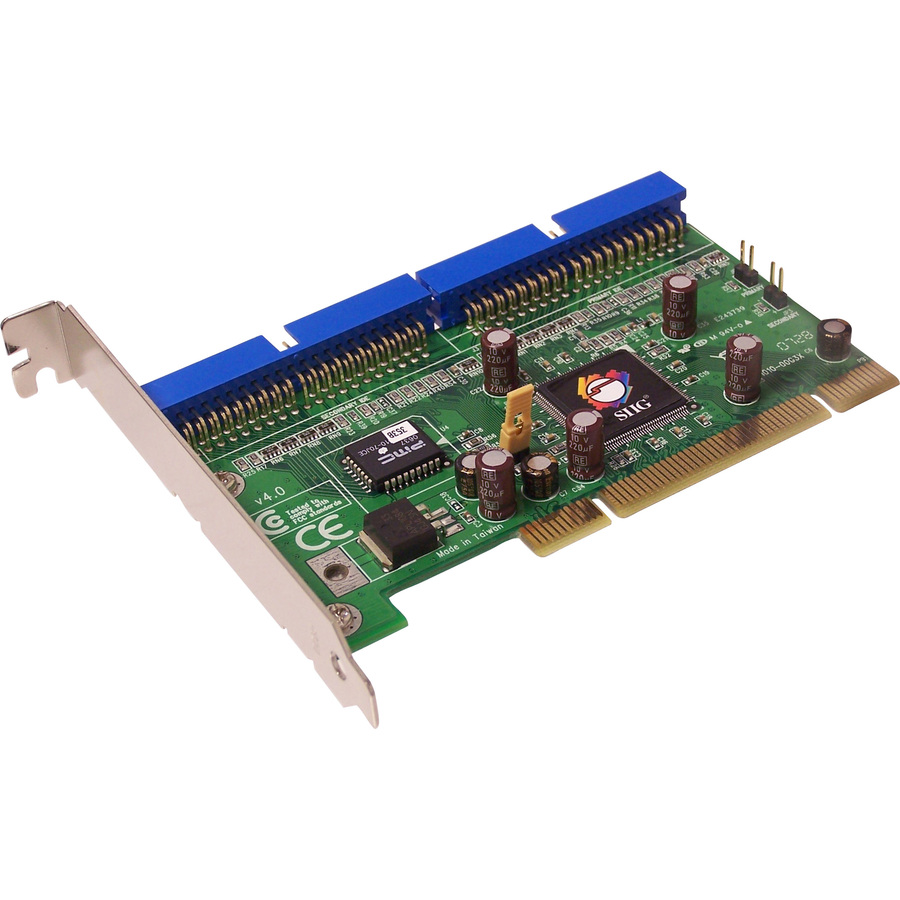

  SIIG SC-PE4B12-S4 2-port PCI Ultra ATA Controller - 2 x Ultra ATA/133 (ATA-7) IDE/EIDE

SIIG PC Card Products Model Overview

PCI, PCMCIA, and other cards for computers
SIIG SC-PE4B12-S4 Products Overview

SIIG's UltraATA 133 PCI is designed to provide two independent Ultra ATA channels to connect a variety of Ultra ATA hard disk drives or ATAPI devices such as CD/ROMs, CD-R/RWs, and DVD drives to your desktop computer. It delivers burst data transfer rates of up to 133Mb/s, supports hard disk drives larger than 137GB and co-exists with on-board IDE controller to connect up to four IDE devices. The UltraATA 133 PCI achieves flawless data transfer through CRC (Cyclical Redundancy Check) error-checking feature to provide data verification and auto-detect drive type feature to fine tune each device to the best performance.

The UltraATA 133 PCI controller card is fully compliant with PCI v2.2 Plug-n-Play, ATA/ATAPI-6 and UDMA6 ATA/133 specifications. It is compatible with Ultra ATA/100/66/33 standards, FCC Class B (DoC) and CE regulatory approved and RoHS compliant. It is also fully compatible with a wide variety of Windows operating systems and is backed by SIIG's lifetime warranty.

Technical Information
Host Interface:
PCI
Controller Type:
Ultra ATA/133 (ATA-7)
Number of Physical Drive Supported:
2
Interfaces/Ports
Total Number of IDE Ports:
2
Physical Characteristics
Form Factor:
Plug-in Card
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0662774025605
UPC: 662774025605
EAN: 0662774025605
UNSPSC: 43201407
