SIIG SC-M20014-S1 Network Switch

SIIG - SIIG M.2 NGFF SSD PCIe Card Adapter
  • Adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer to dramatically increase speed and performance
  • Accommodates 2230, 2242, 2260 and 2280 form factor M.2 SSDs (NVMe or AHCI) via multiple mounting holes
  • Supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0
  • Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot
  • Built-in LEDs indicate power and data transfer status
  • Includes both low-profile and full-profile slot brackets for flexible system chassis installation
  • No driver installation required
Read More
$25.09
In Stock
Add to Quote
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG SC-M20014-S1 Network Switch Overview

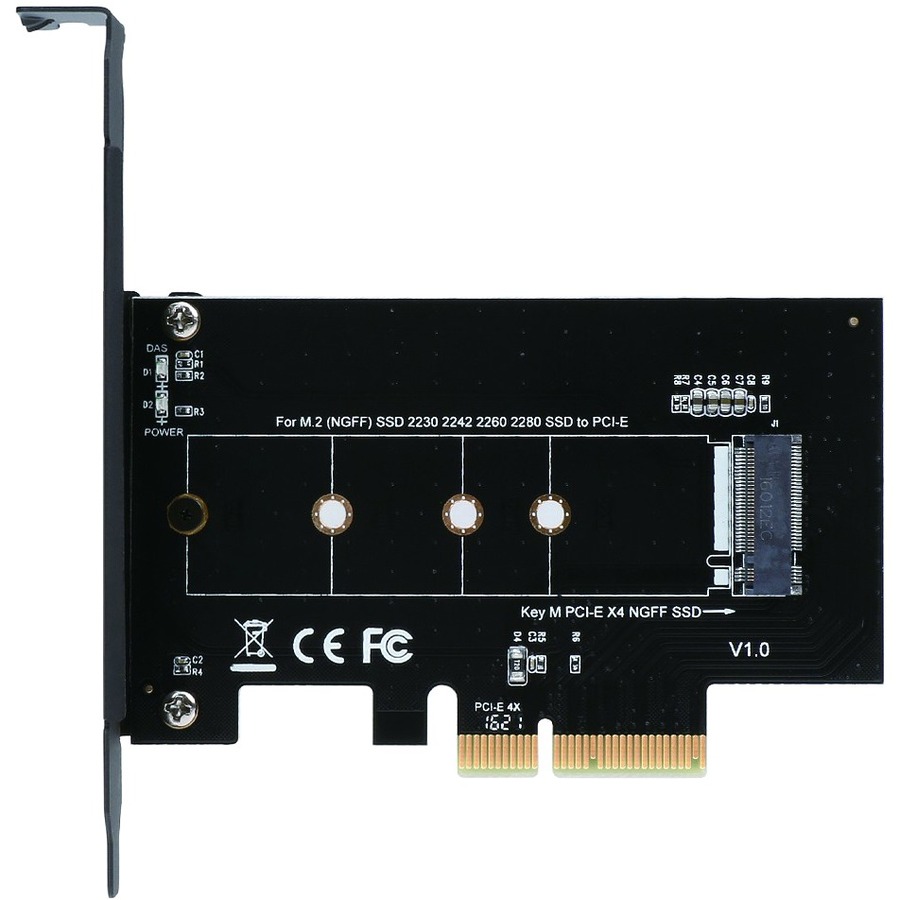

SIIG's M.2 NGFF SSD PCIe Card Adapter adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer, dramatically increasing speed and performance. This M.2 NGFF SSD PCIe adapter card accommodates various form factor high performance M.2 PCIe (M key) SSDs via multiple mounting options. It is PCIe 3.0 compliant and installs into PCIe x4 or larger bus slots. With the included spare low-profile bracket, this adapter card can be installed into both standard-height and low-profile system chassis for the utmost versatility in system chassis installation. The M.2 NGFF SSD PCIe Card Adapter is the perfect high performance upgrade significantly enhancing system performance by adding M.2 PCIe (M key) SSD capability to your PCIe equipped desktop computer.

Physical Characteristics
Product Color:
Black
Height:
0.8"
Width:
4.7"
Depth:
3.5"
Weight (Approximate):
1.44 oz
Miscellaneous
Package Contents:
  • M.2 NGFF SSD PCIe Card Adapter
  • Spare Low Profile bracket
  • User Reference Guide
Additional Information:
  • PCIe 3.0 compliant
  • Bus type: PCIe (x4)
  • Drive type (not included): M key M.2 PCIe SSD (NVMe or AHCI)
    • Note: Systems released prior to 2015 may not support NVMe SSDs. Please check with your system provider for compatible SSD.
  • Compatible drive length: 30 / 42 / 60 / 80 (mm)
  • Product:
    • Dimensions: 4.72" (W) x 0.79" (H) x 3.54" (D)
    • Weight: 0.09lbs
    • Color: Black
  • Connector:
    • Host bus connector: PCI Express x4
    • SSD: M.2 connector (M key)
  • Environmental conditions:
    • Operating temperature: 32 to 122 degrees F
    • Storage temperature: 14 to 140 degrees F
    • Relative humidity: 10% to 90% RH (non-condensing)
Certifications & Standards:
  • CE
  • FCC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0098379213466, 0662774026008, 0818230527651
UPC: 098379213466, 662774026008, 818230527651
EAN: 0098379213466, 0662774026008, 0818230527651
UNSPSC: 43211600
