Host Interface:
PCI
SIIG PC Card Products Model Overview
PCI, PCMCIA, and other cards for computers
SIIG NN-300012-S6 Products Overview

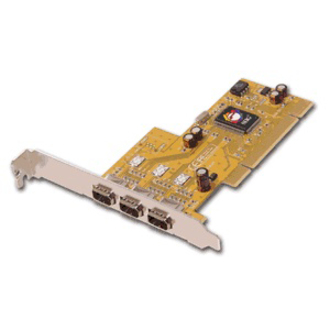

SIIG's FireWire 3-Port PCI I/O is a cost-effective product designed to add 3 high-speed FireWire 400 (1394a) ports to your desktop computer. This FireWire 3-Port host adapter delivers data transfer rates of up to 400Mb/s, supports both asynchronous and isochronous data transfer modes, and allows you to hot-swap devices (connect and disconnect) without first turning your system off. It works seamlessly with a variety of FireWire 400 (1394a) devices including DV camcorders, hard disk drive enclosures, memory card readers, CD-RW/DVD-RAMs, and FireWire enabled audio/video devices such as TVs and set-top boxes.
The FireWire 3-Port PCI I/O host adapter comes with three external 6-pin (1394a) ports. It is designed with a single VIA VT6306 chip and is fully compliant with PCI Plug-n-Play 2.2 specification and fully supports IEEE 1394-1995 and 1394a-2000 and 1394 OHCI 1.1 standards. It is also FCC Class B (DoC) & CE regulatory approved and RoHS-compliant.
The FireWire 3-Port PCI I/O is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.
Technical Information
Interfaces/Ports
Total Number of FireWire/i.LINK Ports:
3
Number of FireWire/i.LINK 400 Ports:
3
Physical Characteristics
Color:
Green
Form Factor:
Plug-in Card
Height:
4.8"
Width:
5"
Thickness:
750 mil
Weight (Approximate):
2.40 oz
Miscellaneous
Package Contents:
- NN-300012-S6 3-port PCI FireWire Adapter
- User's Manual
Additional Information:
- Adds high-speed IEEE 1394 (FireWire) interface into your computer
- Supports data transfer rates up to 400Mbps!
- Works with various types of 1394 devices including DV camcorders, hard disk drives, removable drives, memory card readers, CD-RW/DVD-RAMs, MO drives and other 1394 audio/video devices such as TVs and set-top boxes
- Fully compatible with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorder brands
- Regulatory approval(s): FCC Class B (DoC) & CE
- RoHS compliant
- Bus type: 32-bit PCI
- Port type: 3 IEEE 1394 ports
- IEEE 1394-1995, P1394a (rev.1.1) and OHCI Interface Specification 1.0 compliant
- Full compliant with PCI Plug-n-Play 2.1
- Adds 3 IEEE 1394 ports to your PC for high-speed I/O connection and supports up to 63 devices
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
- Supports serial bus data transfer rates of 100, 200 and 400Mb/sec
Platform Supported:
PC
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- China RoHS
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0662774026961
UPC:
662774026961
EAN:
0662774026961
UNSPSC:
43211609
