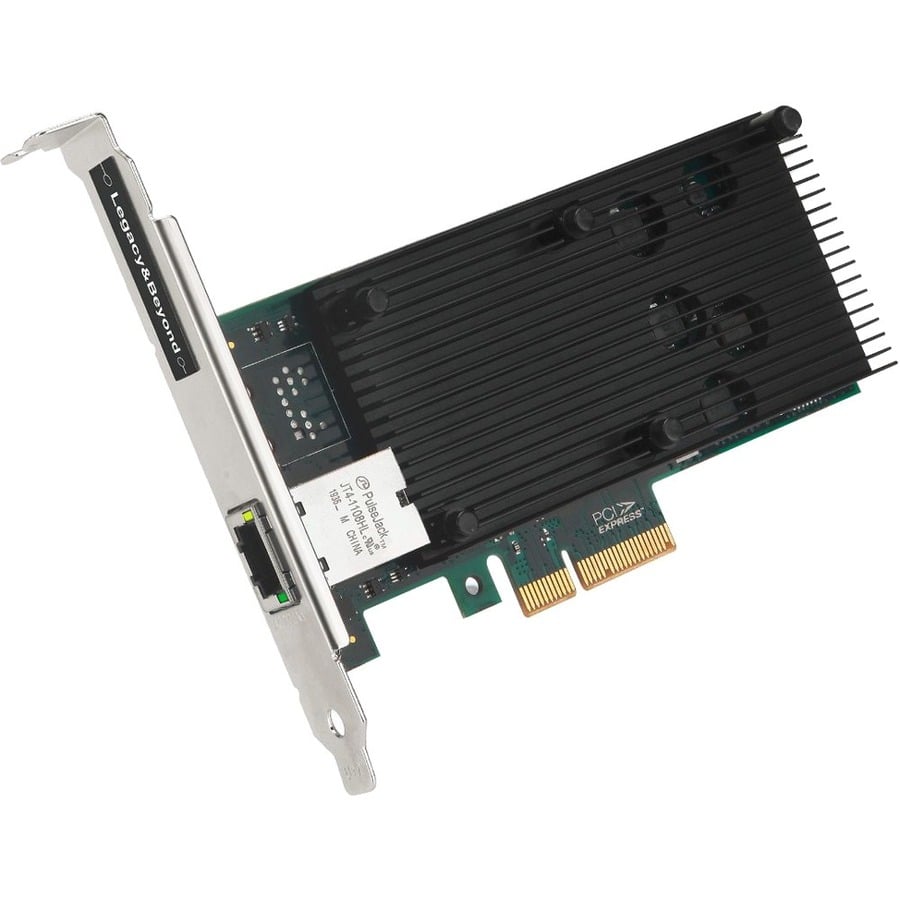

SIIG LB-GE0211-S1 Data Networking

SIIG - SIIG Single Port 10G Ethernet Network PCI Express, PCI Express 3.0 x4, 1 Port(s), 1, Twisted Pair, 10GBase-T, Plug-in Card

Quickly adds one 10G Ethernet port, through an available PCI Express 3.0 x4 slot, to server or desktop systems
NBASE-TTM technology allows 2.5Gbps and 5Gbps Ethernet speeds for cable lengths up to 100 meters, over existing CAT5e/6 cable infrastructure plus Power over Ethernet (PoE) over CAT cable
Intel X550 chipset supports reliable and advanced network connectivity with Intel virtualization technology
Compliant with IEEE 802.3, 802.3an, 802.1Q with full duplex and Wake-on-Lan support
Feature innovative power management including 802.3az EEE (Energy Efficient Ethernet) and DMA Coalescing to increase efficiency and reduce power consumption
Fits both standard and low-profile system chassis with the included brackets
Extra large heat-sink guards against heat build-up for reliable performance and long life

Need a different version? See all SIIG Parts Products

$276.48

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

SIIG LB-GE0211-S1 Data Networking Overview

Add 10G Ethernet capability to your enterprise, server, or desktop computer

Quickly adds one 10G Ethernet port, through an available PCI Express 3.0 x4 slot, to server or desktop systems
NBASE-TTM technology allows 2.5Gbps and 5Gbps Ethernet speeds for cable lengths up to 100 meters, over existing CAT5e/6 cable infrastructure plus Power over Ethernet (PoE) over CAT cable
Intel X550 chipset supports reliable and advanced network connectivity with Intel virtualization technology
Compliant with IEEE 802.3, 802.3an, 802.1Q with full duplex and Wake-on-Lan support
Feature innovative power management including 802.3az EEE (Energy Efficient Ethernet) and DMA Coalescing to increase efficiency and reduce power consumption
Fits both standard and low-profile system chassis with the included brackets
Extra large heat-sink guards against heat build-up for reliable performance and long life

Detailed Specs

Interfaces/Ports

Host Interface:

PCI Express 3.0 x4

Total Number of Ports:

Number of Network (RJ-45) Ports:

Media & Performance

Media Type Supported:

Twisted Pair

Network & Communication

Network Technology:

10GBase-T

Physical Characteristics

Form Factor:

Plug-in Card

Height:

0.8"

Width:

5.7"

Depth:

4.7"

Weight (Approximate):

5.12 oz

Miscellaneous

Package Contents:

Single Port 10G Ethernet Network PCI Express
Driver CD
Spare Low-profile Bracket
Installation Guide

Device Supported:

Computer/Server

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

China

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0662774043708

UPC: 662774043708

EAN: 0662774043708

UNSPSC: 43201404
