Host Interface:
PCI Express 2.0 x1
SIIG JU-P40A11-S1 Cables, Connectors, and Adapters
Part Number:
JU-P40A11-S1
Model:
Parts
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG JU-P40A11-S1 Cables, Connectors, and Adapters Overview

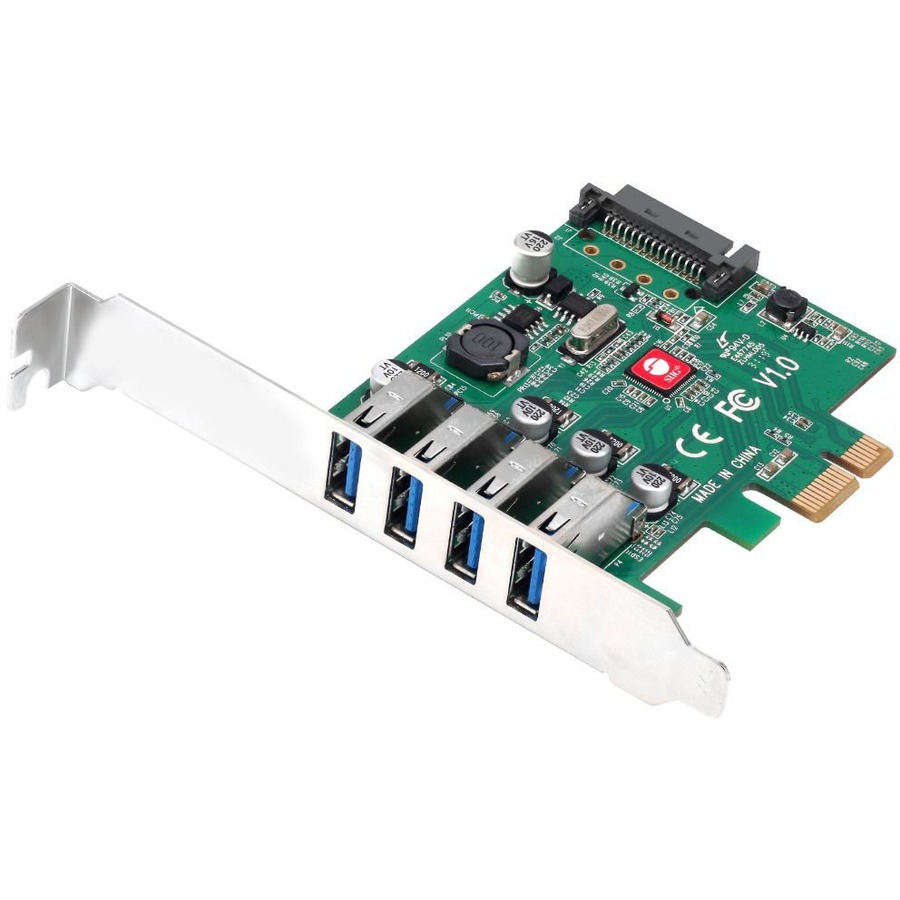

Adds four external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCIe enabled desktop computer
- Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system
- Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset
- Compliant with USB data transfer rates - Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps)
- Compliant with Intel's eXtensible Host Controller Interface (xHCI) Revision 1.0 specification
- Compliant with USB legacy and UASP mode (UASP requires Windows 10 and 8 native USB 3.0 host drivers only)
- PCI Bus Power Management Interface Specification Revision 1.2
- Dual-profile design installs into different system form factor chassis with the included full and low profile brackets
- Each USB port features over-current protection to protect your connected device from power surges
Technical Information
Media & Performance
UASP Support:
Yes
Interfaces/Ports
Total Number of USB Ports:
4
Number of USB 3.0 Ports:
4
Physical Characteristics
Product Color:
Green
Form Factor:
External
Height:
0.8"
Width:
2.7"
Length:
3.4"
Weight (Approximate):
2.40 oz
Miscellaneous
Package Contents:
- DP USB 3.0 4-Port PCIe Host Card
- Low Profile Bracket
- Driver CD
- Quick Start Guide
Additional Information:
- DP USB 3.0 4-Port PCIe Host Card
- Low profile bracket
- Driver CD
- Quick Start Guide
Platform Supported:
PC
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0662774042688
UPC:
662774042688
EAN:
0662774042688
UNSPSC:
43211609
