Host Interface:
PCI Express 3.0 x4
SIIG JU-P20A12-S1 Accessory
Part Number:
JU-P20A12-S1
Model:
Parts
SIIG Parts Products Model Overview
Products and parts from SIIG.

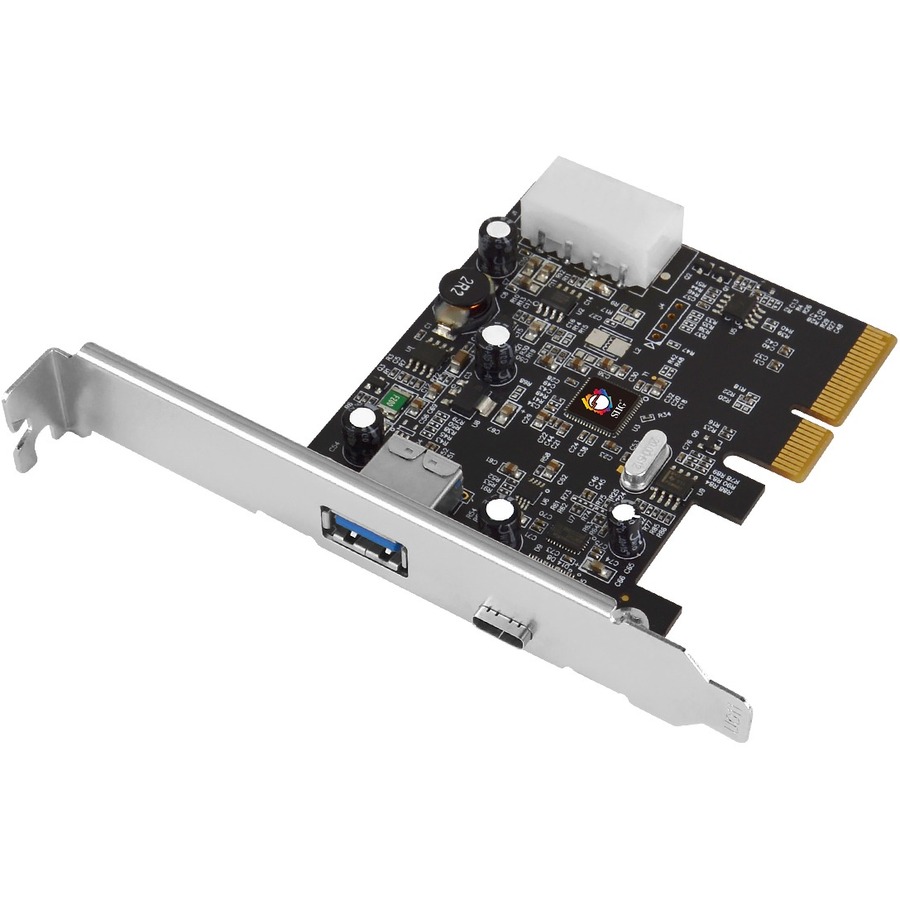

SIIG JU-P20A12-S1 Accessory Overview
SIIG's USB 3.1 2-Port PCIe Host Adapter Type-A/C enables you to enhance your desktop computer with the latest USB 3.1 technology, delivering up to 10Gb/s data transfer rates (two times faster than USB 3.0). It adds two USB 3.1 Gen 2 ports (one Type-A and one Type-C) to your desktop computer via an available 4x or larger PCI Express slot. Each USB 3.1 port supports independent over-current protection to protect the connected device and a built-in 4-pin power connector is available to ensure sufficient power is supplied when needed. It is an excellent adapter card to connect high-bandwidth USB devices such as external hard disks, high resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more.
Technical Information
Interfaces/Ports
Total Number of USB Ports:
2
Number of USB 3.1 Ports:
2
Physical Characteristics
Product Color:
Black
Form Factor:
Plug-in Card
Height:
3.5"
Width:
4.7"
Depth:
0.8"
Weight (Approximate):
1.60 oz
Miscellaneous
Package Contents:
- USB 3.1 2-Port PCIe Host Adapter - Type-A/C
- Spare Low Profile Bracket
- Installation Guide
Platform Supported:
- PC
- Linux
Country of Origin:
China
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0662774021942
UPC:
662774021942
EAN:
0662774021942
UNSPSC:
43211609
