Host Interface:
PCI Express 3.0 x4
SIIG JU-P20912-S2 Cables, Connectors, and Adapters
Part Number:
JU-P20912-S2
Model:
Parts
SIIG Parts Products Model Overview
Products and parts from SIIG.

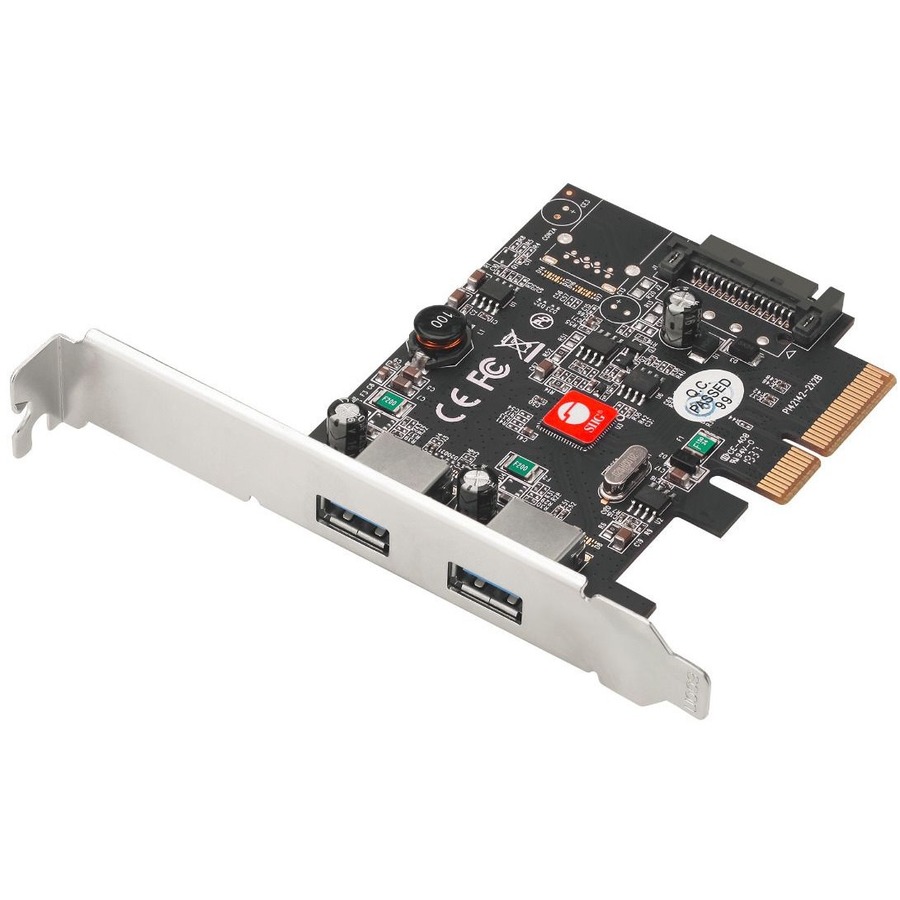

SIIG JU-P20912-S2 Cables, Connectors, and Adapters Overview
Adds two USB 3.1 Type-A ports to your desktop computer via an available PCI Express slot
- Complies with PCI-Express 3.0 standard
- Supports the latest USB generation 3.1 Gen 2 with data transfer rate up to 10Gb/s
- Supports plug-n-play, hot-swapping, and backwards compatible with USB 1.1 / 2.0 / 3.0
- Each USB port provides up to 900mA power output to better support the power consumption of your connected device
- Each USB port features independent over-current protection to further protect your device
- Built-in 15-pin SATA power connector connects to the system power supply, as needed, to ensure sufficient power is supplied to the USB ports
- Dual-profile design installs into different form factor system chassis with the included full and low profile brackets
Technical Information
Interfaces/Ports
Total Number of USB Ports:
2
Number of USB 3.1 Ports:
2
Physical Characteristics
Product Color:
Black
Form Factor:
Plug-in Card
Height:
0.8"
Width:
3.9"
Length:
4.7"
Weight (Approximate):
1.76 oz
Miscellaneous
Package Contents:
- USB 3.1 2-Port PCIe Host Adapter - Type-A
- Spare Low Profile Bracket
- Installation Guide
Platform Supported:
PC
Country of Origin:
Switzerland
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0662774044118
UPC:
662774044118
EAN:
0662774044118
UNSPSC:
43211609
