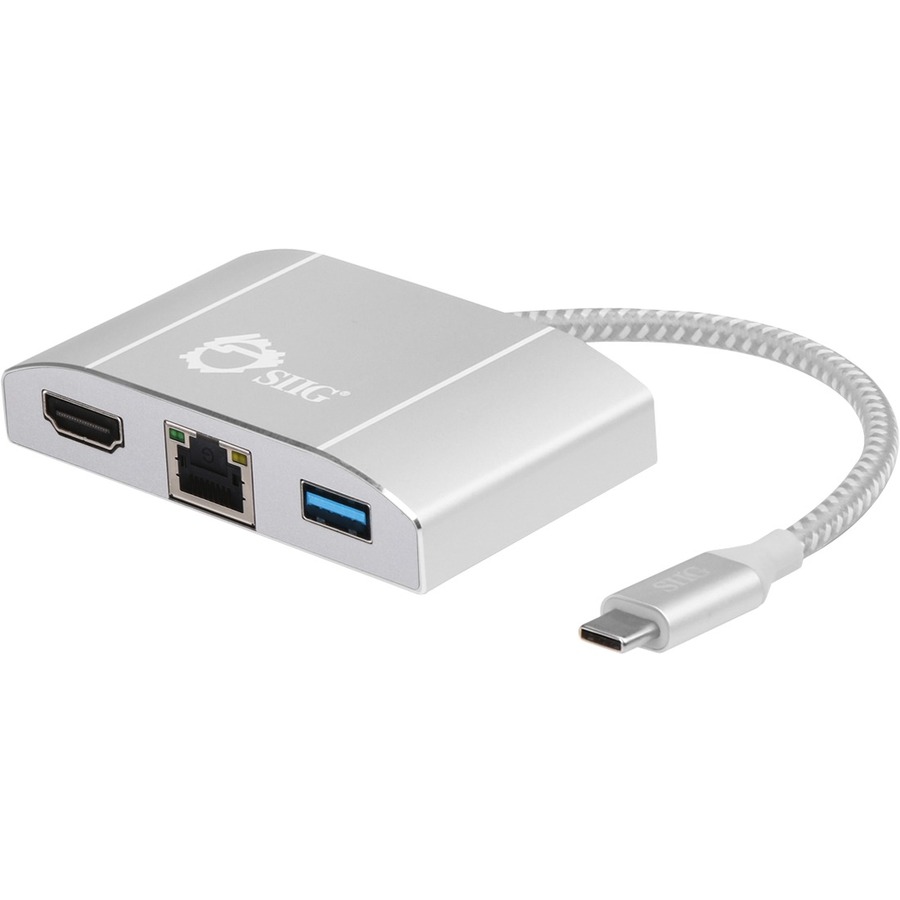

SIIG JU-H30712-S1 Cables, Connectors, and Adapters

Part Number: JU-H30712-S1
Model: Parts
Add to My Shopping List Add to Compare
$52.69

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connector Type on First End
USB 3.1 Type C - Male
Connector on First End Details
1 x USB 3.1 Type C - Male
Connector Type on Second End
HDMI Digital Audio/Video - FemaleRJ-45 Network - FemaleUSB 3.1 Type A - Female
Connector on Second End Details
1 x 19-pin HDMI Digital Audio/Video - Female1 x 8-pin RJ-45 Network - Female2 x 9-pin USB 3.1 Type A - Female

Product Description:

  SIIG USB 3.1 Type-C LAN Hub with HDMI Adapter- 4K ready, AV/Data Transfer Cable for Notebook, First End: 1 x USB 3.1 Type C, Male, Second End: 1 x 19-pin HDMI Digital Audio/Video, Female, 1 x 8-pin RJ-45 Network, 2 x 9-pin USB 3.1 Type A, 5 Gbit/s, Silver, 1
Explore all SIIG Parts Products
Add to Quote
SIIG JU-H30712-S1 Cables, Connectors, and Adapters
SIIG JU-H30712-S1 Cables, Connectors, and Adapters

SIIG Parts Products Model Overview

Products and parts from SIIG.
SIIG JU-H30712-S1 Cables, Connectors, and Adapters Overview
  • Instantly adds one HDMI port, Gigabit Ethernet port and two USB 3.0 ports through USB Type-C (DisplayPort signal enabled) connection to increase efficiency and productivity
  • Supports HDMI video/audio signal with maximum resolution up to 4Kx2K@30Hz
    Note: The USB-C source connection must contain DisplayPort video/audio signal, aka DisplayPort Alternate/DisplayPort Alt mode, in order for the audio and video signals to pass through the HDMI
  • Gigabit Ethernet delivers high speed data transfer rate up to 1000 Mbps through wired networking
  • USB 3.1 Gen 1 ports support data transfer rate up to 5Gbps for fast data delivery
  • Pocket size with no external power adapter required provides greater portability
  • Aluminum housing offers durability and excellent heat dissipation for long life and reliable performance
  • Plug-n-Play, no software installation required

More from the Manufacturer

Technical Information
Connector Type on First End:
USB 3.1 Type C - Male
Connector on First End Details:
1 x USB 3.1 Type C - Male
Connector Type on Second End:
  • HDMI Digital Audio/Video - Female
  • RJ-45 Network - Female
  • USB 3.1 Type A - Female
Connector on Second End Details:
  • 1 x 19-pin HDMI Digital Audio/Video - Female
  • 1 x 8-pin RJ-45 Network - Female
  • 2 x 9-pin USB 3.1 Type A - Female
Conductor:
Copper
Device Supported:
Notebook
Data Transfer Rate:
5 Gbit/s
Physical Characteristics
Product Color:
Silver
Height:
0.6"
Width:
3.1"
Weight (Approximate):
0.14 lb
Miscellaneous
Package Contents:
  • USB 3.1 Type-C LAN Hub with HDMI Adapter- 4K Ready
  • User Reference Guide
Additional Information:
  • Instantly adds one HDMI port, Gigabit Ethernet port and two USB 3.0 ports through USB Type-C (DisplayPort signal enabled) connection to increase efficiency and productivity
  • Supports HDMI video/audio signal with maximum resolution up to 4Kx2K@30Hz
  • Gigabit Ethernet delivers high speed data transfer rate up to 1000 Mbps through wired networking
  • USB 3.1 Gen 1 ports support data transfer rate up to 5Gbps for fast data delivery
  • Pocket size with no external power adapter required provides greater portability
  • Aluminum housing offers durability and excellent heat dissipation for long life and reliable performance
  • Plug-n-Play, no software installation required
System Requirements:
  • DisplayPort enabled USB Type-C port
OS Compatibility:
  • Win 10/8/7
  • Mac 10.14 to 10.12
Environmental conditions:
  • Operating temperature: 32 to 122 degrees F
  • Storage temperature: 14 to 140 degrees F
  • Relative humidity: 5% to 85% RH (non-condensing)
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774025834, 0818212494193
UPC: 662774025834, 818212494193
EAN: 0662774025834, 0818212494193
UNSPSC: 26121604
