Height:
1.6"
Width:
2.4"
Depth:
0.8"
Transmitter Weight (Approximate):
2.40 oz
Receiver Weight (Approximate):
2.56 oz
SIIG Parts Products Model Overview
Products and parts from SIIG.

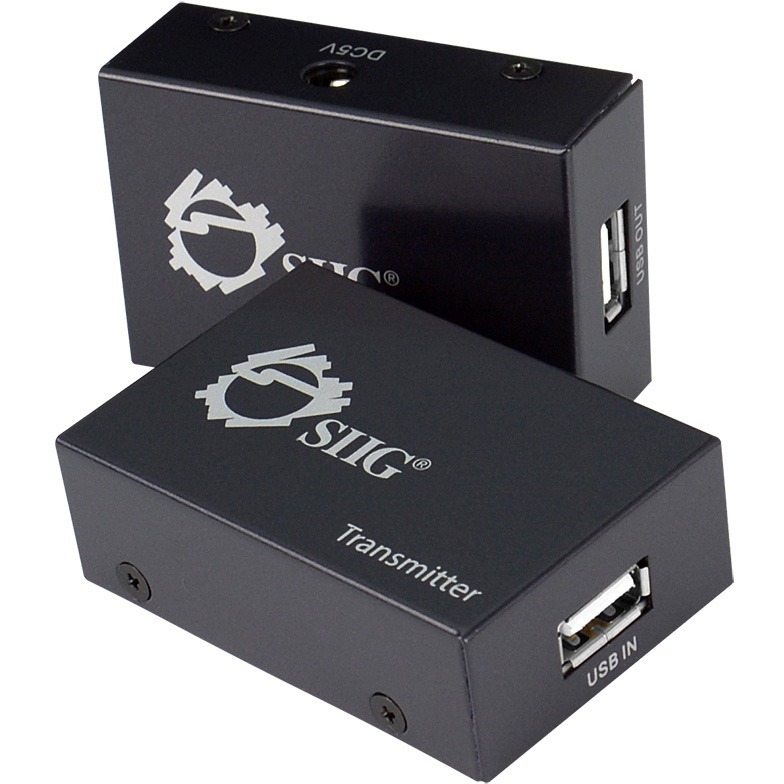

SIIG JU-EX0211-S1 Products Overview
- Extends USB signal up to 70 meters via one CAT5/5e/6 cable (not included)
- Supports data transfer rates up to 12Mb/s
- Plug and Play, no driver installation needed
- Metal housing for excellent RF shielding and heat dissipation
Physical Characteristics
Miscellaneous
Package Contents:
- Transmitting Unit
- Receiving Unit
- USB Cable
- Installation Guide
Additional Information:
- Compliant with USB 1.1 and compatible with USB 2.0
- Transmission distance:
- Up to 70 meters for devices such as keyboard, mouse, and printers
- Up to 25 meters for USB flash drives and hard disks
- Transmitting unit (Tx):
- Dimensions: 2.44"(W) x 1.61"(H) x 0.79"(D)
- Weight: 0.15 lbs
- Connectors:
- 4-pin, USB, Type A, Female, Input
- 8-pin, RJ45, Link, Output
- Color: Black
- Housing: Metal
- Receiving unit (Rx):
- Dimensions: 2.44"(W) x 1.61"(H) x 0.79"(D)
- Weight: 0.16 lbs
- Connectors:
- 8-pin, RJ45, Link, Input
- 4-pin, USB, Type A, Female, Output
- Power Jack (5.5mm OD, 2.5mm ID, 10mm L)
- Color: Black
- Housing: Metal
- USB 2.0 cable:
- Connectors: Type A (male) to Type A (male)
- Length: 1M
- Color: Black
- Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: -14 to 158 degrees F
- Relative humidity: 10% to 80% RH (non-condensing)
Certifications & Standards:
- CE
- FCC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
