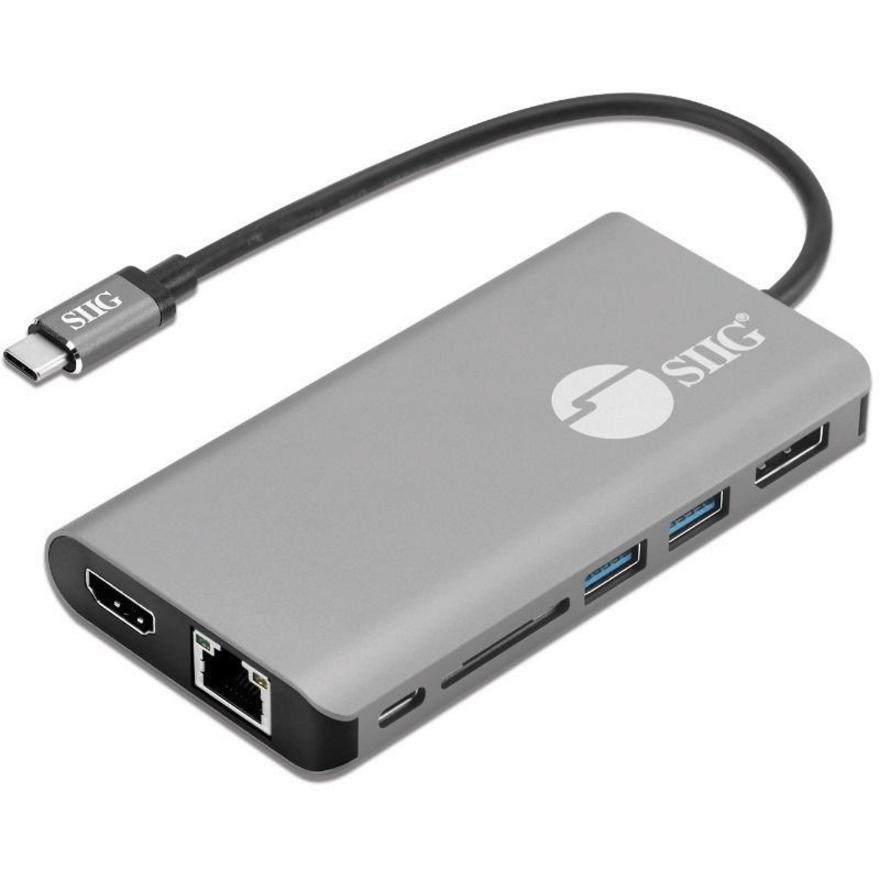

SIIG JU-DK0F11-S1 Accessory

SIIG - SIIG USB-C MST Video with Hub, LAN and PD 3.0 Docking, 7-in-1 MST Docking Station with 100W PD, MacOS for DP or HDMI Video, USB-C Multiport Adapter, DP+HDMI, Single 4K / Dual 1080p, 2x USB-A 5Gbps Hub, 100W Power Delivery, GbE /SD, USB-C Mini Dock, USB-C to dual 1080p video via Multi Stream Transport (MST) technology, 2x USB-A 3.2 Gen 1 5Gbps Hub, 100W PD Charging Passthrough, 7.87in cable, Type-C Mini dock, Win/Chrome for MST, MacOS for DP or HDMI Video output

Need a different version? See all SIIG Parts Products

$141.51

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

SIIG JU-DK0F11-S1 Accessory Overview

Transforms a single USB-C port, with DP Alt mode or Thunderbolt 3 technology, into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port, one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot
Supports Mirror mode with identical content displayed on each display, Extended mode with individual content displayed on each screen
DisplayPort Multi Stream Transport (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs
Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices
Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology
Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more
SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s
SD flash memory card slots support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer
Plug-n-play, no driver installation or power adapter required
Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Device Supported:

Notebook/Desktop PC

Interfaces/Ports

Host Interface:

USB Type C

Total Number of USB Ports:

Number of USB 3.0 Ports:

USB Type-C:

Yes

USB Type-C Detail:

for PD 3.0 charging & USB 3.0 data transmission

Network (RJ-45):

Yes

Number of DisplayPort Outputs:

DisplayPort:

Yes

Number of HDMI Outputs:

HDMI:

Yes

Power Description

Maximum Power Supply Wattage:

100 W

Physical Characteristics

Height:

0.63"

Width:

2.39"

Depth:

4.59"

Weight (Approximate):

4.16 oz

Miscellaneous

Package Contents:

USB-C MST Video with Hub, LAN and PD 3.0 Docking
User Reference Guide

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0662774042978, 0818270964720, 0818275429460, 0993245600732

UPC: 662774042978, 818270964720, 818275429460, 993245600732

EAN: 0662774042978, 0818270964720, 0818275429460, 0993245600732

UNSPSC: 43211602
