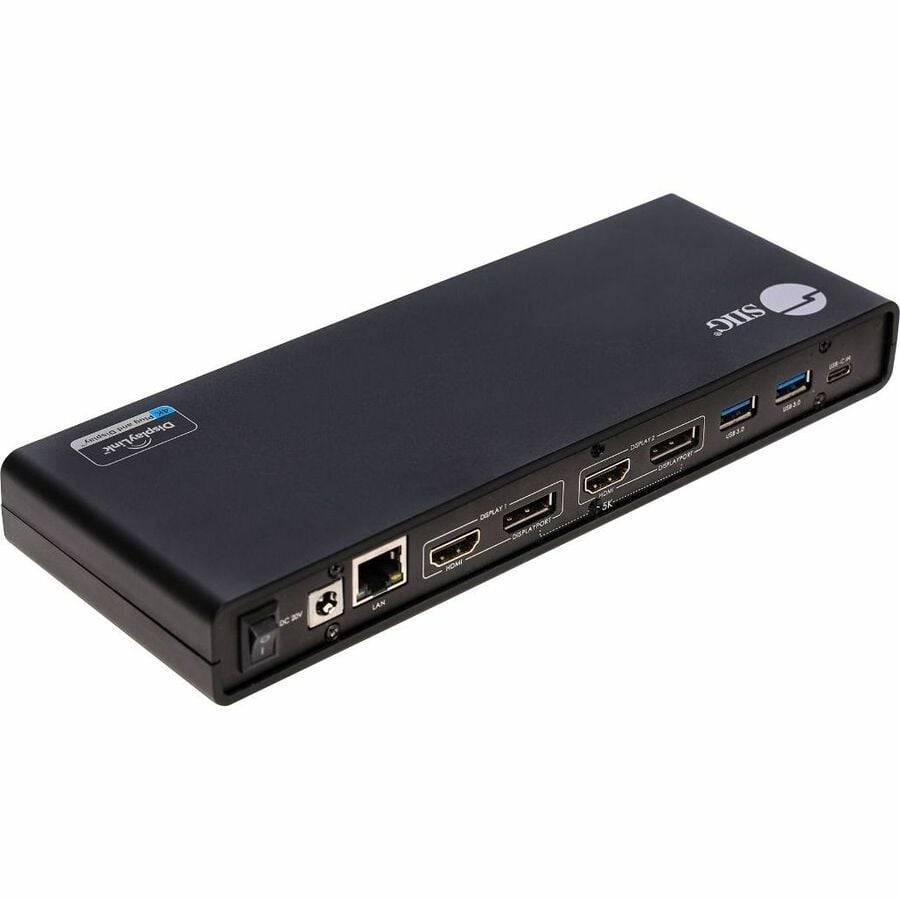

SIIG JU-DK0811-S1 Accessory

SIIG - USB 3.1 Type-C Dual 4K Docking Station with Power Delivery 60W - Thunderbolt 3 Compatible - 2x DisplayPort, HDMI, 4x USB 3.1, USB-C, Audio/Microphone and Gigabit Ethernet

Need a different version? See all SIIG Parts Products

$216.26
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
SIIG JU-DK0811-S1 Accessory
SIIG JU-DK0811-S1 Accessory
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG JU-DK0811-S1 Accessory Overview
Advanced docking station adds DisplayPort, HDMI, USB 3.1, USB-C, Audio/Microphone and Gigabit Ethernet connectivity and PD charging up to 60W to your USB-C or Thunderbolt 3 enabled laptop
  • Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer
  • Industry Recognized Display Technology from DisplayLink® - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
    Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor
  • Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
  • USB-C PD Charging - Supports up to 60W power output to charge your laptop
    Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
  • Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
  • Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
  • Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
  • Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
  • OS Compatibility - Supports various Windows and Mac computers
    Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier.
  • Enterprise Features: Wake on LAN, MAC Address Pass-Through and PXE Boot

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
Device Supported:
Notebook
Number of Displays Supported:
2
Screen Mode Supported:
  • 4K
  • 5K
Supported Resolutions:
3840 x 2160
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Host Interface:
USB 3.1 Type C
Audio Line In:
Yes
Audio Line Out:
Yes
Total Number of USB Ports:
7
Number of USB 3.2 Gen 1 Type-A Ports:
4
USB Type-C:
Yes
USB Type-C Detail:
2 x USB 3.2 Gen 1 Type-C, up to 5Gbps data transfer rate, 5V/900mA
Network (RJ-45):
Yes
Number of RJ-45 Ports:
1
Number of DisplayPorts:
2
DisplayPort:
Yes
Microphone:
Yes
Number of HDMI Ports:
2
HDMI:
Yes
Thunderbolt:
Yes
USB Power Delivery:
Type-C Up to 60W
Software
Operating System Supported:
  • Windows
  • macOS
Power Description
Maximum Power Supply Wattage:
100 W
Power Source Type:
AC
Physical Characteristics
Height:
1.02"
Width:
3.15"
Weight (Approximate):
12.32 oz
Miscellaneous
Package Contents:
  • USB 3.1 Type-C Dual 4K Docking Station with Power Delivery
  • Power Adapter (DC 20V/5A)
  • USB-C (M) to USB-C (M) Cable
  • Driver CD
  • User Reference Guide
Compatibility:
Windows Compatibilty:
  • 10
  • 8
  • 7

Mac Compatibilty:

  • 10.14
  • 10.13.3 to 10.7
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774041254, 0818249170015
UPC: 662774041254, 818249170015
EAN: 0662774041254, 0818249170015
UNSPSC: 43211602
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The SIIG JU-DK0811-S1 Accessory is also known as JU-DK0811-S1
