SIIG JJ-E20711-S1 Plastic ID Card

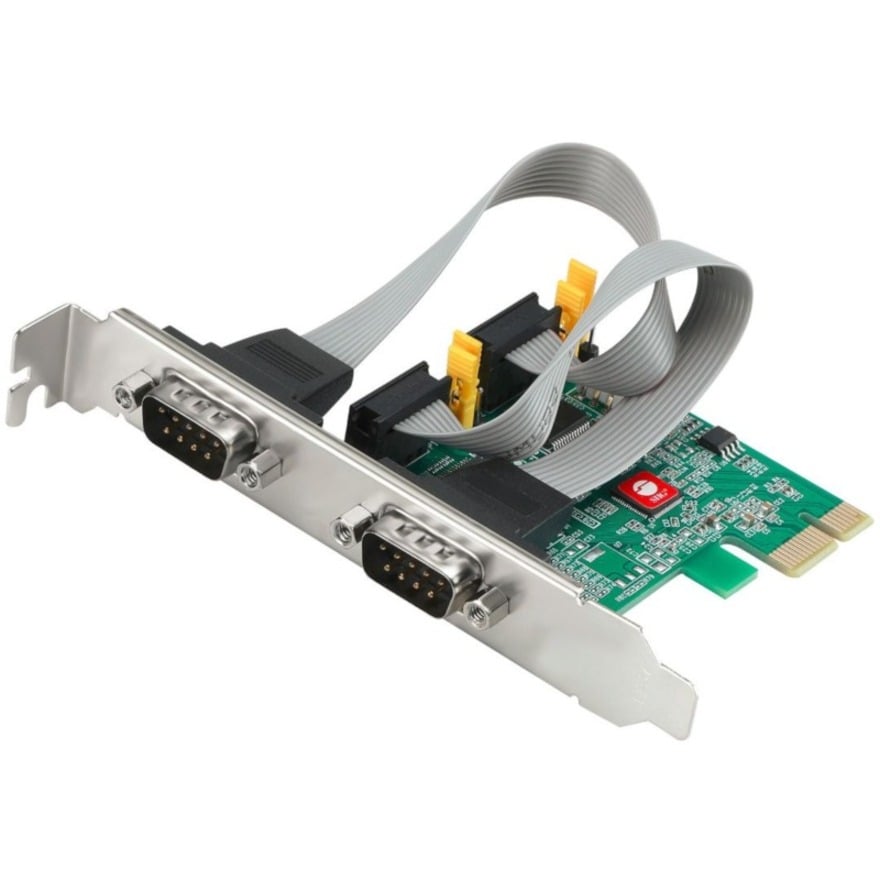

SIIG - DP CYBER 2S PCIE CARD
  • Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
  • Two 16C650 UART serial ports support data transfer rate up to 250Kbps
  • Compliant with PCI Express 2.0 Gen 1
  • Single-lane (x1) PCI Express End-point Controller with PHY integrated
  • Full serial modem control with hardware and software flow control
  • Supports 5, 6, 7, 8 and 9-bit serial formats
  • Supports Even, Odd, None, Space and Mark parity
  • On chip 256-byte FIFO buffers in transmit and receive path for each serial port
  • Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
  • Supports PCI Bus Power Management Interface Specification Revision 1.2
Read More
$49.99
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG JJ-E20711-S1 Plastic ID Card Overview

Add two 16650 RS232 ports to your PCI Express system

Features
  • Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
  • Two 16C650 UART serial ports support data transfer rate up to 250Kbps
  • Compliant with PCI Express 2.0 Gen 1
  • Single-lane (x1) PCI Express End-point Controller with PHY integrated
  • Full serial modem control with hardware and software flow control
  • Supports 5, 6, 7, 8 and 9-bit serial formats
  • Supports Even, Odd, None, Space and Mark parity
  • On chip 256-byte FIFO buffers in transmit and receive path for each serial port
  • Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
  • Supports PCI Bus Power Management Interface Specification Revision 1.2
  • Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
  • Installs into any PCI Express slot of any lane width
  • Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
Technical Information
Host Interface:
PCI Express 2.0 x1
Platform Supported:
PC
Interfaces/Ports
Number of Serial Ports (External):
2
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Full-height/Low-profile
Height:
0.7"
Width:
2.9"
Depth:
4.7"
Weight (Approximate):
1.92 oz
Miscellaneous
Package Contents:
  • DP Cyber 2S PCIe Card
  • Full Height Bracket
  • 2 x Low Profile Bracket
  • 1 x Y-Split Power Cable
  • 4 x Voltage Jumper
  • Software CD
  • User Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774044095
UPC: 662774044095
EAN: 0662774044095
UNSPSC: 43201559
