Host Interface:
PCI Express 2.0 x1
Platform Supported:
PC
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG JJ-E20611-S1 Plastic ID Card Overview

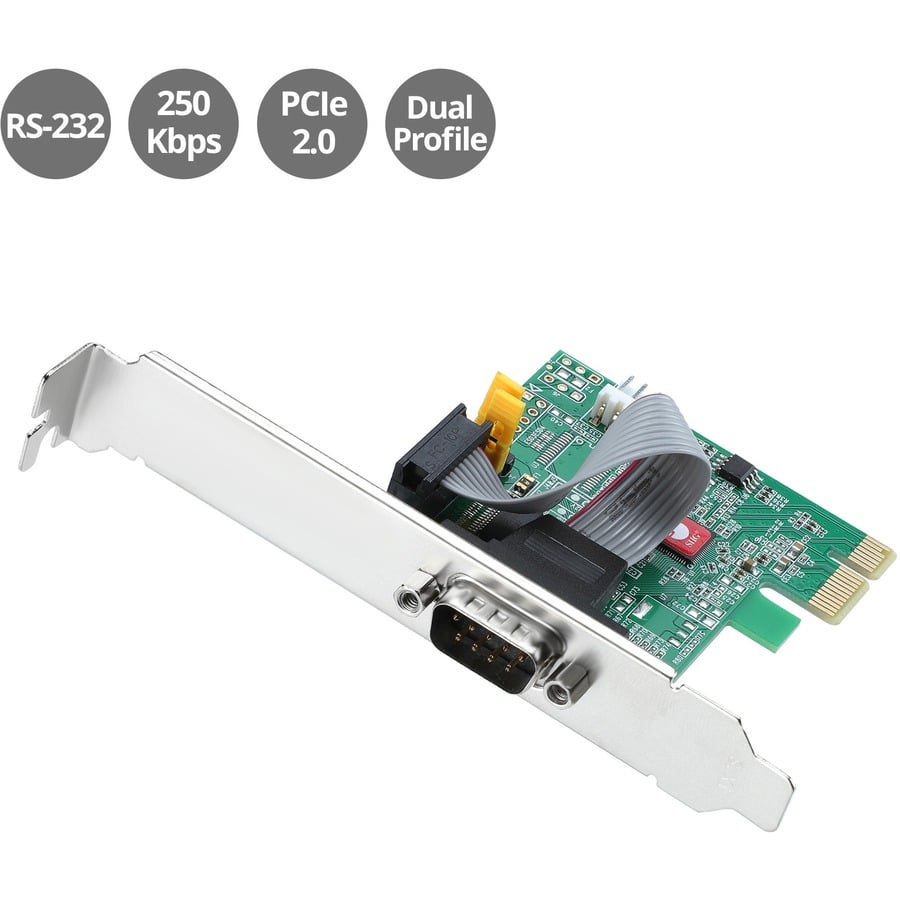

Add one 16650 RS232 port to your PCI Express system
Features- Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
- One 16C650 UART serial port supports data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- Supports on chip 256-byte FIFO buffers in transmit and receive path
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
- Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
Technical Information
Interfaces/Ports
Number of Serial Ports (External):
1
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Full-height/Low-profile
Height:
0.7"
Width:
2.9"
Depth:
4.7"
Weight (Approximate):
1.60 oz
Miscellaneous
Package Contents:
- DP Cyber 1S PCIe Card
- Full Height Bracket
- 1 x Low Profile Bracket
- 1 x Y-Split Power Cable
- 2 x Voltage Jumper
- Software CD
- User Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0662774044088
UPC:
662774044088
EAN:
0662774044088
UNSPSC:
43201559
