Host Interface:
PCI Express x1
Data Transfer Rate:
Up to 1.5MB/s
Parallel Port Modes:
- PS2
- SPP
- EPP
- ECP
Platform Supported:
PC
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG JJ-E02211-S1 Products Overview

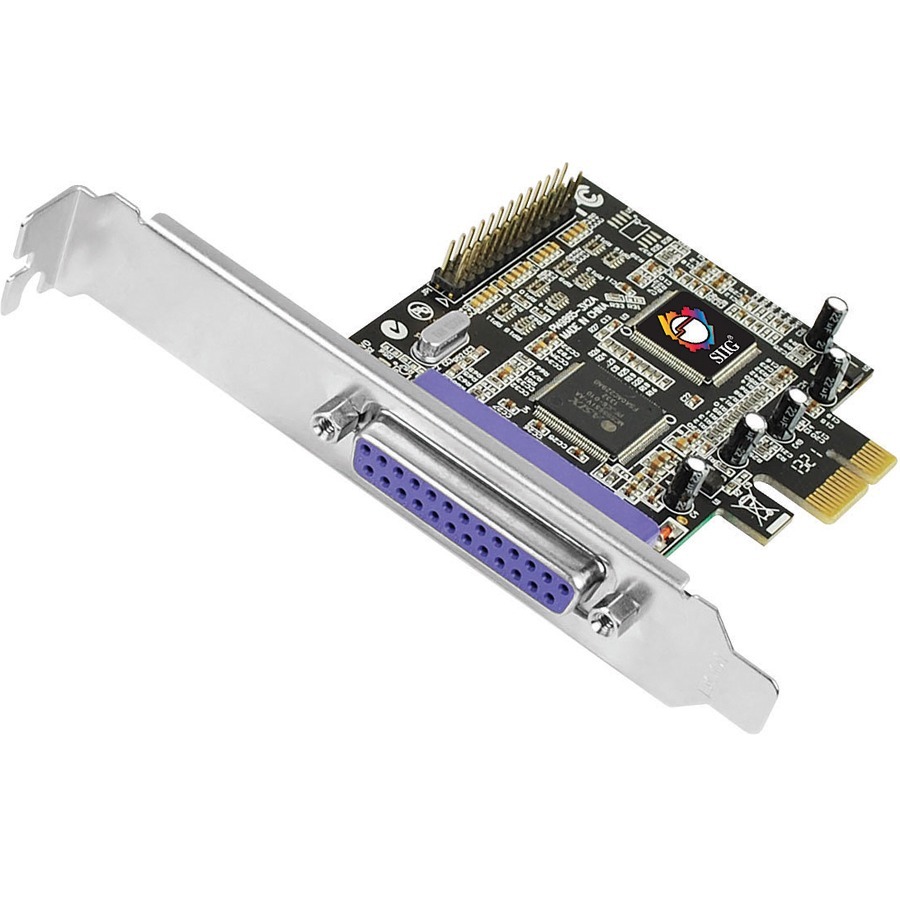

SIIG's DP CyberParallel Dual PCIe is designed to add two high-speed parallel ports (25-pin) to PCI Express-enabled desktop computer. It delivers data transfer rates of up to 1.5MB/s, supports ECP, EPP, PS2 and SPP parallel port modes, and works with PCI Express slots of different lane widths. With the included spare low-profile bracket, this dual-profile adapter can be installed into either standard height or low profile system chassis. It is a cost effective solution enabling you to add extra parallel ports for additional device connections.
Technical Information
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Low-profile
Height:
4.7"
Width:
3.6"
Depth:
0.8"
Weight (Approximate):
3.20 oz
Miscellaneous
Package Contents:
- DP CyberParallel Dual PCIe
- LP Bracket DB25 Ribbon Cable
- Spare Low Profile Bracket
- Driver CD
- Installation Guide
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0662774021201
UPC:
662774021201
EAN:
0662774021201
UNSPSC:
43201559
Get help from a Barcoding Expert!
The SIIG JJ-E02211-S1 Products is also known as
JJ-E02211-S1
