SIIG IC-710012-S2 Products

The SIIG IC-710012-S2 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

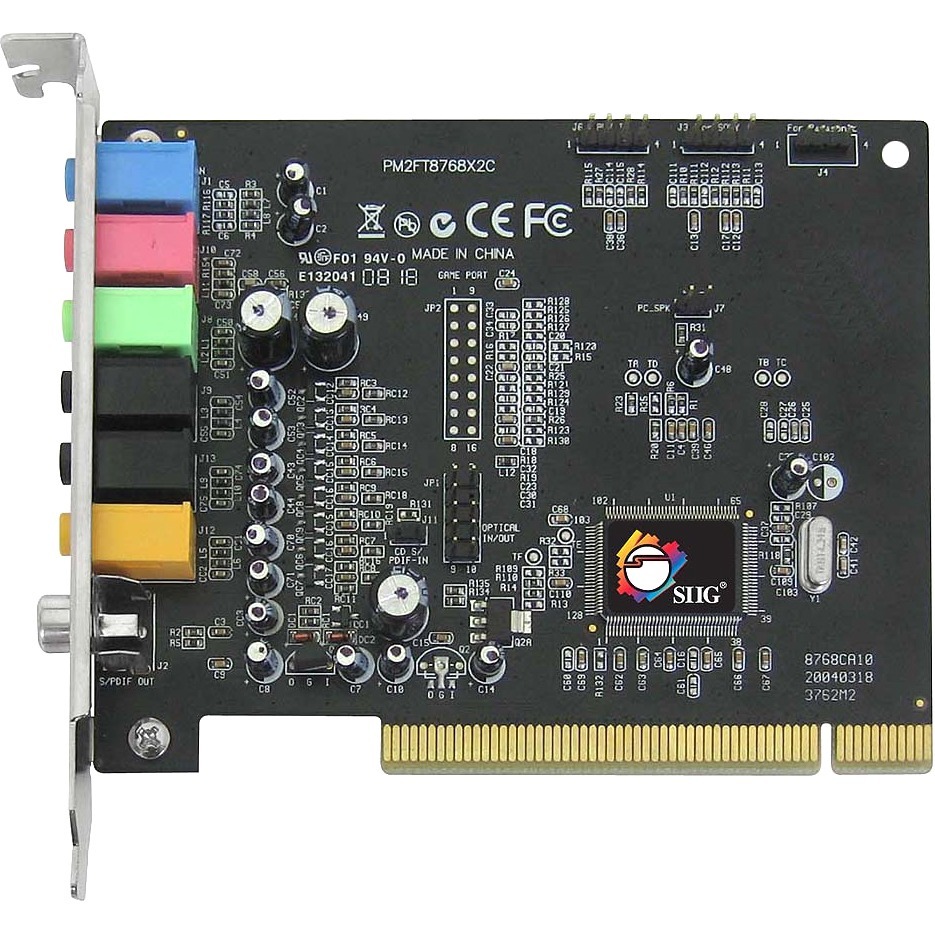

SIIG PC Card - SIIG SoundWave 7.1 PCI - CMI8768/PCI-8ch v2.0 - Internal
Discontinued Need Assistance?
Add to Quote
SIIG PC Card Products Model Overview
PCI, PCMCIA, and other cards for computers
SIIG IC-710012-S2 Products Overview

SIIG's SoundWave 7.1 PCI allows you to enjoy high-definition 7.1 surround sound from your desktop computer system. This brilliant PCI sound card supports 8-channel output (Dolby Digital EX and DTS ES 6.1/7.1CH DVD audio formats) and delivers a 24-bit/96KHz digital output audio quality. It features unique karaoke functionalities such as microphone echo, key shifting, and vocal cancellation, and allows user to utilize the power and surround sound of EAX audio technologies to customize internet audio properties.

The SoundWave 7.1 PCI sound card supports the latest in 3D audio technologies, including Sensaura EAX, A3D, DirectSound and most industrial standards of PC 3D sound for gaming. It conforms to PCI specification, revision 2.2 and PC99 specification. It is also FCC Class B (DoC) and CE regulatory approved, and RoHS compliant.

The SoundWave 7.1 PCI is fully compatible with a wide variety of Windows operating systems and backed by SIIG's 5-year warranty.

Technical Information
Audio Processor Manufacturer:
C-Media
Audio Processor Model:
CMI8768/PCI-8ch v2.0
Host Interface:
PCI
Signal to Noise Ratio (SNR):
100 dB
Minimum Frequency Response:
20 Hz
Maximum Frequency Response:
22 kHz
Sound Channels:
7.1
Platform Supported:
PC
Interfaces/Ports
S/PDIF Out:
Yes
Physical Characteristics
Form Factor:
Internal
Miscellaneous
Package Contents:
  • SoundWave 7.1 PCI sound card
  • Driver installation CD
  • Quick installation guide
Additional Information:
  • Conforms to PCI specification, revision 2.2 and PC99 specification
  • S/PDIF transmitter supports 44.1/48/96KHz sampling rate and 16-/24-bit resolution
  • Supports multi-channel output to 2, 4, 6 (5.1) or 8 (7.1) speaker systems
  • Provides Xear 3D 7.1 Virtual Speaker Shifter technology
  • HRTF-based 3D positional audio enhancement, supports DirectSound 3D, EAX v1.0 & v2.0, and A3D v1.0
  • Unique karaoke functionality: mic echo, key shifting, vocal cancellation
  • Supports most industrial standards of PC 3D sound for gaming
  • Supports 24-bit/96KHz audio quality
  • RoHS compliant
  • Frequency response: 20Hz to 22KHz
  • THD : 0.018%
  • THD+N: -70dB
  • S/N Ratio: ~ -100dB
  • Standard Warranty: 5 Year Limited Repair/Replace
System Requirements:
  • Pentium II 266 MHz (Pentium III 800 MHz recommended) or equivalent PC with an available PCI slot
  • Windows 98SE/ME/2000/XP/Server 2003
  • 64 MB system memory or above
  • Multi-channel 2/4/6/8 speaker system
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0662774005676, 0686727676096
UPC: 662774005676, 686727676096
EAN: 0662774005676, 0686727676096
UNSPSC: 43201502
