SIIG CE-VG0N11-S1

SIIG - VGA & Audio CAT5 Extender - 1 x 1, 1 - WUXGA - 1000 ft.
Please Call for Pricing
or to Purchase
Various audio/video extenders from SIIG.
SIIG CE-VG0N11-S1 Overview

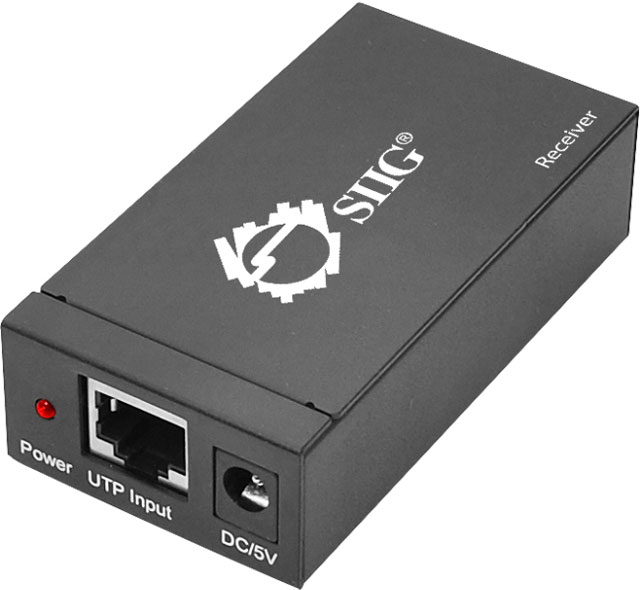

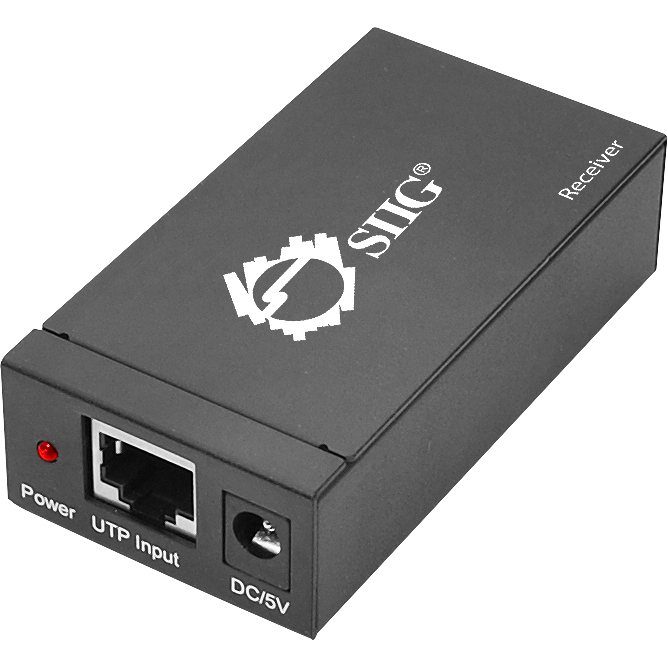

SIIG's VGA & Audio CAT5 Extender is designed to extend your VGA and stereo audio signals over one economical CAT5/5e/6/7 cable. It supports analog stereo audio and VGA transmission distances up to 1000ft (330 m) at WUXGA (1920x1200) resolution. It features an adjustable peak and gain control on the receiving (RX) unit for optimal video quality. The VGA & Audio CAT5 Extender provides long-range audio/video connections between devices such as HDTVs, DVD players/recorders (Blu-ray, HD-DVD, up-converting DVD), computer systems, gaming systems, digital cable/satellite boxes and AV receivers while maintaining signal strength and superior video quality enabling you to improve, enhance, and satisfy your audio and video enjoyment.

The VGA & Audio CAT5 Extender is RoHS compliant, FCC and CE regulatory approved, and is backed by SIIG's limited 3-year warranty.

Protect Your Product
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
2
Maximum Operating Distance:
1000 ft
Video
Graphics Modes:
WUXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
VGA In:
Yes
VGA Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of VGA Inputs:
1
Number of VGA Outputs:
2
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 7
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Material:
Metal
Receiver Height:
2.56"
Receiver Width:
3.94"
Receiver Depth:
1"
Miscellaneous
Package Contents:
  • VGA & Audio CAT5 Extender
  • Screw Kit
  • 2 x Metal Mounting Plates
  • 2 x Power Adapters
  • User's Manual
Certifications & Standards:
  • FCC PART 15, CLASS B
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0662774014074, 5293152994074
UPC: 662774014074
EAN: 0662774014074, 5293152994074
UNSPSC: 43222608


The SIIG CE-VG0N11-S1 is also known as CE-VG0N11-S1 or CEVG0N11S1 .
