Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
5
Maximum Operating Distance:
1080 ft
SIIG Parts Products Model Overview
Products and parts from SIIG.

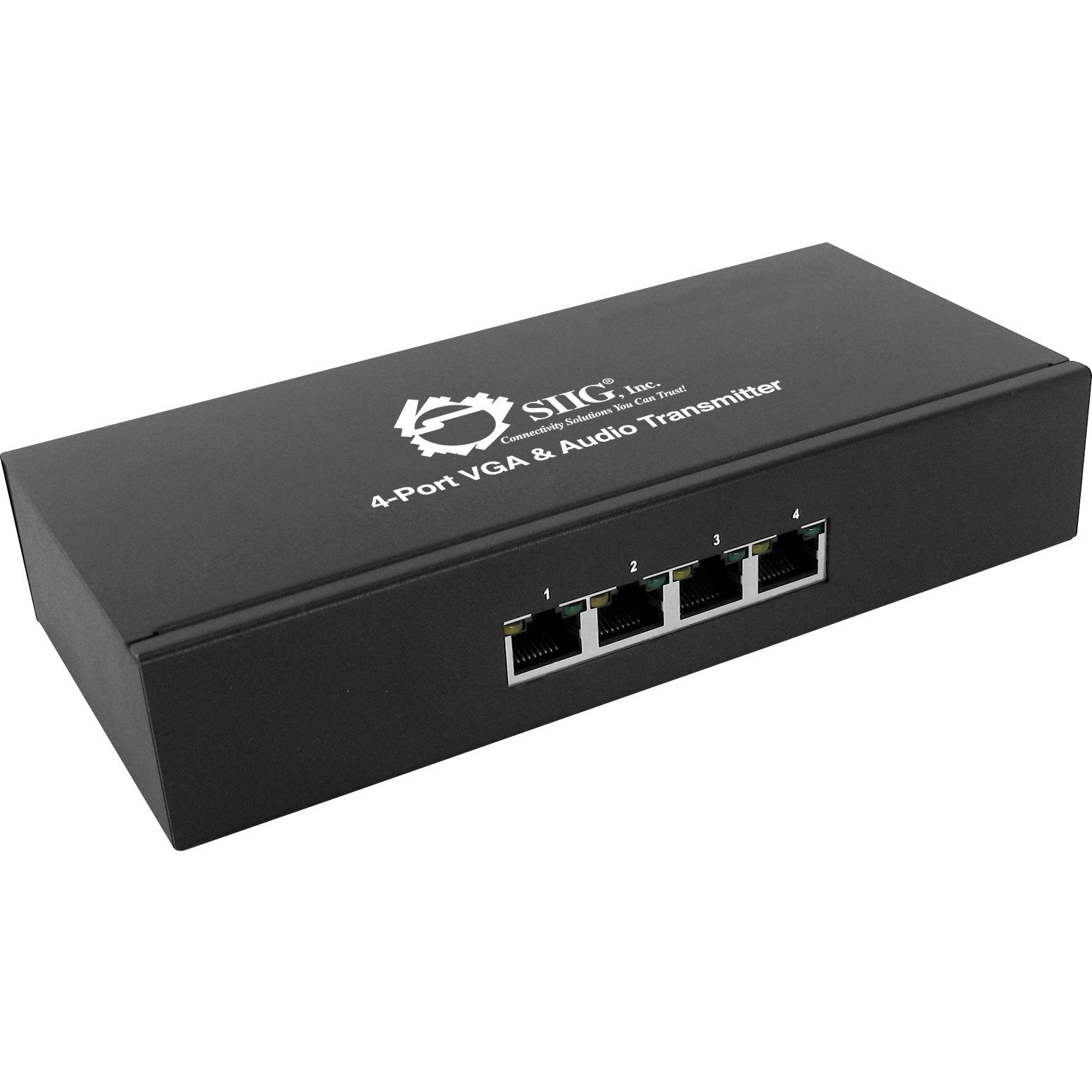

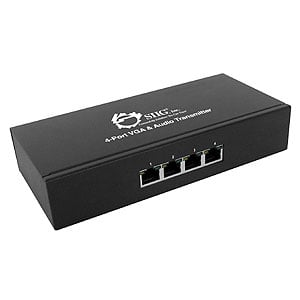

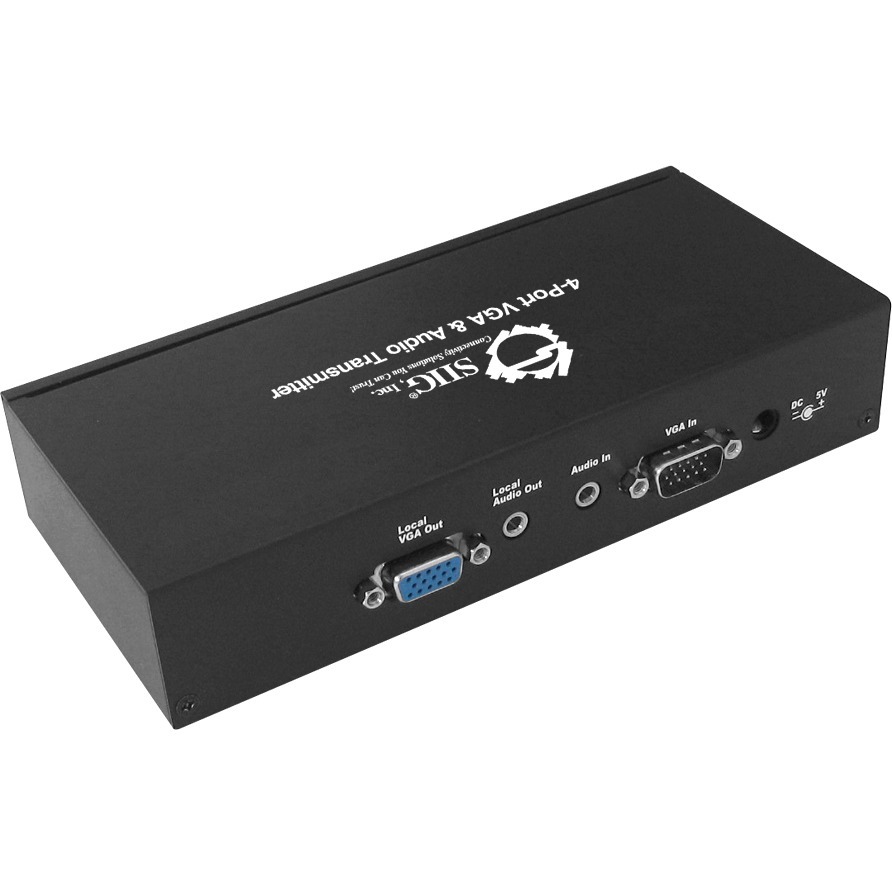

SIIG CE-VG0811-S1 Products Overview
SIIG's 4-Port VGA & Audio Transmitter is designed to extend VGA video and 2-channel stereo audio transmission to up to 4 remote displays over economical CAT5/5e/6 cables. It supports VGA video transmissions distance of up to 1080 feet at 800 x 600 resolution, and maintains high video resolution of 1920 x 1200 up to 246 feet. The 4-port VGA & Audio Transmitter supports VGA, SVGA, XGA, SXGA, and Multi-sync monitors and can be cascaded to expand your distribution points to connect more displays.
The 4-Port VGA & Audio Transmitter comes with a VGA cable (M-F), audio cable (M-M), high quality power adapter, and a comprehensive user's manual for quick and easy installation. This VGA & audio transmitter is FCC & CE approved, meets RoHS hazardous materials standards and is backed by SIIG's limited 3-year warranty.
Technical Information
Video
Graphics Modes:
- VGA
- SVGA
- XGA
- SXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
4
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Material:
Metal
Transmitter Height:
7.13"
Transmitter Width:
3.50"
Thickness:
1.4"
Transmitter Weight (Approximate):
15 oz
Miscellaneous
Package Contents:
- CCE-VG0811-S1 Audio/Video Transmitter
- VGA Cable
- 3.5mm Stereo Audio Cable
- Switching Power Adapter
- User's Manual
Certifications & Standards:
- CE
- FCC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0662774007809, 0995478360599, 7426900680617
UPC:
662774007809, 995478360599
EAN:
0662774007809, 0995478360599, 7426900680617
UNSPSC:
43222619
