Product Material:
Aluminum
SIIG Parts Products Model Overview
Products and parts from SIIG.

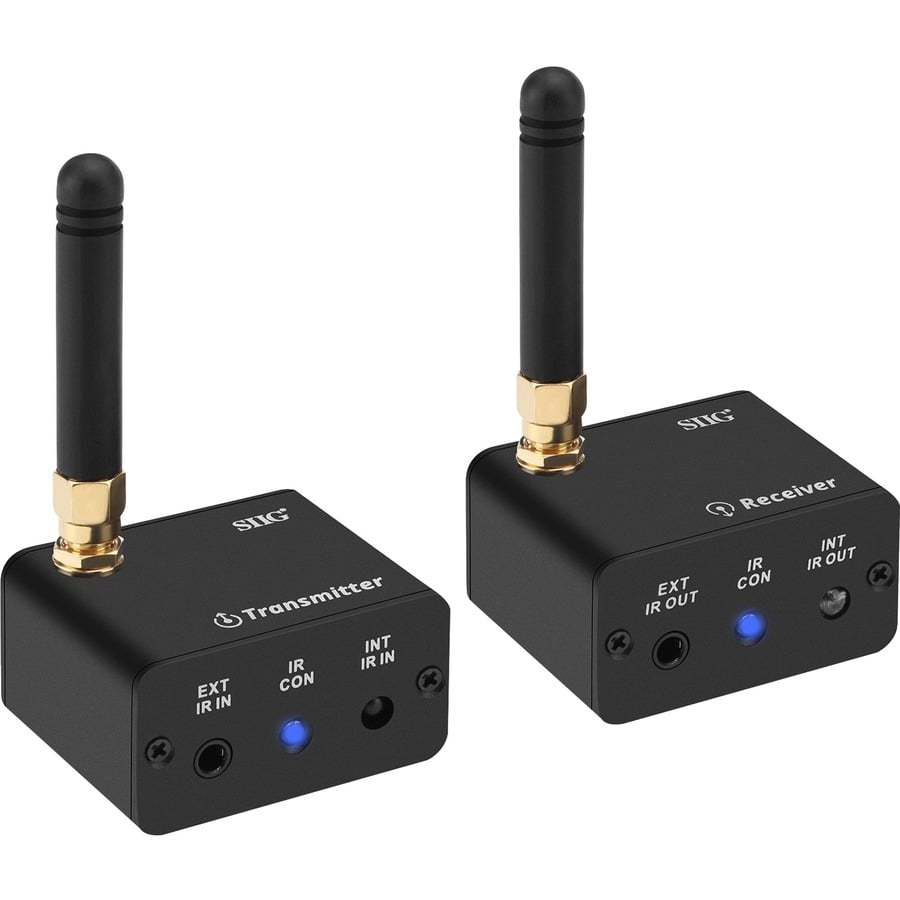

SIIG CE-RC0111-S1 Accessory Overview
Extends IR signals allows remote control of your device from long distance
- Wide coverage wireless signals penetrate walls and other obstructions allow you to move around freely and still have IR control of your A/V or other IR enabled equipment from remote locations up to 656ft (200m) away. Note: The wireless operating distance will vary depending on your building layout, surrounding obstructions, and electronic interference and may be less than the maximum distance
- Compatible with IR remote controls using frequency range between 20KHz - 60KHz
- High performance IR electronics provide real time signal transmission, virtually without delay, built-in LED indicator illuminates when the IR signal is received for easy status recognition
- Portable size with included IR Blaster and IR Receiver extension cables allows easy and flexible placement anywhere in a home or office environment
- Premium quality metal housing enhances heat dissipation and durability for dependable performance and long life
Physical Characteristics
Miscellaneous
Package Contents:
- Wireless IR Signal Extender Kit
- 2 x USB Power Cable
- IR Blaster Extension Cable
- IR Receiver Extension Cable
- User Reference Guide
Additional Information:
- Wireless transmission distance: up to 656ft (200m), line-of-sight
- Wireless frequency: 915MHz
- Power gain: 10dBm
- IR frequency: 20KHz - 60KHz
- Housing: Aluminum
- Transmitter unit (TX):
- Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)
- Weight: 0.09 lbs
- Connector:
- 1x, 3.5mm, IR Jack, Receiver
- 1x, DC Jack, USB power input
- 1x, IR Receiver sensor
- 1x, IR LED indicator
- 1x, Click button, lock ID
- Receiver unit (RX):
- Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)
- Weight: 0.09 lbs
- Connector:
- 1x 3.5mm, Emitter
- 1x DC Jack, USB power input
- 1x IR Emitter sensor
- 1x IR LED indicator
- 1x Click button, lock ID
- USB Power cable:
- Input: 4-Pin, USB Type-A, Power input
- Output: DC 5V output
- Power consumption: 300mW
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 140 degrees F
- Relative humidity: 10 to 90% RH (non-condensing)
Application/Usage:
A/V Equipment
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0662774041780, 0800100226061
UPC:
662774041780, 800100226061
EAN:
0662774041780, 0800100226061
UNSPSC:
43201500
