SIIG CE-KV0H11-S1 Network Switch

SIIG - SIIG 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch, 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch allows you to control 4 DP 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output to extend differnt content or mirror use the same contenct- 4 Computers input & 1 or 2 local output, DP 1.4 up to 8K@30Hz/32.4Gbps, 4 USB-A 5Gbps, 3.5mm Phone & Mic Jacks, Switch Button, Hotkeys- KVM Cable included-
  • Console four PC systems with DisplayPort 8K video via Keyboard-Mouse function and support to separate for dual head 4K60Hz DisplayPort via MST feature output
  • The DisplayPort KVM switch on the market to offer 32.4Gbps, Ultra-HD 8@30Hz, it features Auto-EDID detection which ensures visual workspaces and screen resolutions are easy to connect to a new system every time.
  • Easily to control via simple select buttons on the front panel or using programmable hot keys on USB keyboard
  • Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.2 Gen-1 ports, Connect multiple USB peripherals such as flash drives, printers and more devices simultaneously
  • Supports Dolby Digital, DTS-HD and Dolby True-HD audio; Includes 3.5mm jack for microphone input and stereo speakers/headphones
  • Supports screen auto scan between each display; Micro-USB firmware update for expanding compatibility
  • Plug-n-play, no driver installation
Read More
$660.85
In Stock
Add to Quote
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-KV0H11-S1 Network Switch Overview
4 port DisplayPort 8K MST Dual-Head KVM Switch, allows you to control 4 DisplayPort 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output, DP 1.4/8K@30, 32.4Gbps, 4 USB 3.2 Gen-1 ports, 3.5mm Phone & Mic Jacks, Switch Button, Hotkeys, Metal Housing, TAA Compliant

Features

Easily control/switch four DisplayPort 1.4 and USB computers with one set of keyboard & mouse to one 8K DisplayPort monitor or two 4K DisplayPort monitors and supports Multi-Stream Transport (MST) technology to enhance your productivity and efficiency

8K/4K Video Resolution

Supports Ultra HD video resolution up to a single 8K (7680x4320) @30Hz display and dual 4K (4096x2160) @60Hz displays YUV 4:4:4 8-bit, Deep color, and 3D

High Performance

Offers a true 32.4Gbps video bandwidth and supports 7.1ch surround sound

Effortlessly Switch

Switch freely between 4 computers/devices in different ways, such as front panel selection buttons and USB keyboard hotkeys

Multiple Connectivity Port

Comes with four DisplayPort 1.4 video input ports, four USB-B 3.2 Gen 1 ports (Host), two DisplayPort 1.4 MST output ports, four USB-A 3.2 Gen 1 ports, two USB-A 1.1 HID ports for connecting keyboard and mouse, five 3.5mm phone jack for stereo audio, five 3.5mm phone jack for microphone, one DIP Switch for Firmware control, one Micro USB for Firmware update, four PC1/PC2/PC3/PC4 switch buttons, and one DC power jack (12V/2A)

USB-A Data Transfer

Easily connect four USB-A 3.2 Gen 1 ports on the front or back with data transfer rate up to 5Gbps for Flash drive, Printer, Enclosure, and other USB peripheral devices, and two USB-A 1.1 HID ports with data transfer rate up to 12Mbps for independent HID keyboard and mouse

3.5mm Audio/Mic

Supports ten 3.5mm phone jacks for stereo audio and Microphone

Maximum Compatibility

Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
Supports Plug-n-play and no driver installation required. Auto-EDID detection to ensure visual workspaces and resolutions are easy to connect to a new system every time and auto-scan feature for quick browsing and system monitoring

ESD Protection

An ESD protection device protects a circuit used to an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

Metal Housing Design

Drop resistant and Anti-collision design enhances heat dissipation, providing better performance, stability, and safety

TAA Compliant

Completely manufactured in a TAA designated country
Technical Information
Number of Computers Supported:
4
Number of Local Users Supported:
2
Features:
Plug and Play
Video
Maximum Video Resolution:
7680 x 4320
Interfaces/Ports
USB:
Yes
DisplayPort:
Yes
Number of USB Ports:
10
Number of DisplayPorts:
6
Power Description
Input Voltage Range:
AC 100-240V
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Height:
1.4"
Width:
4.4"
Depth:
11.1"
Weight (Approximate):
2.15 lb
Miscellaneous
Package Contents:

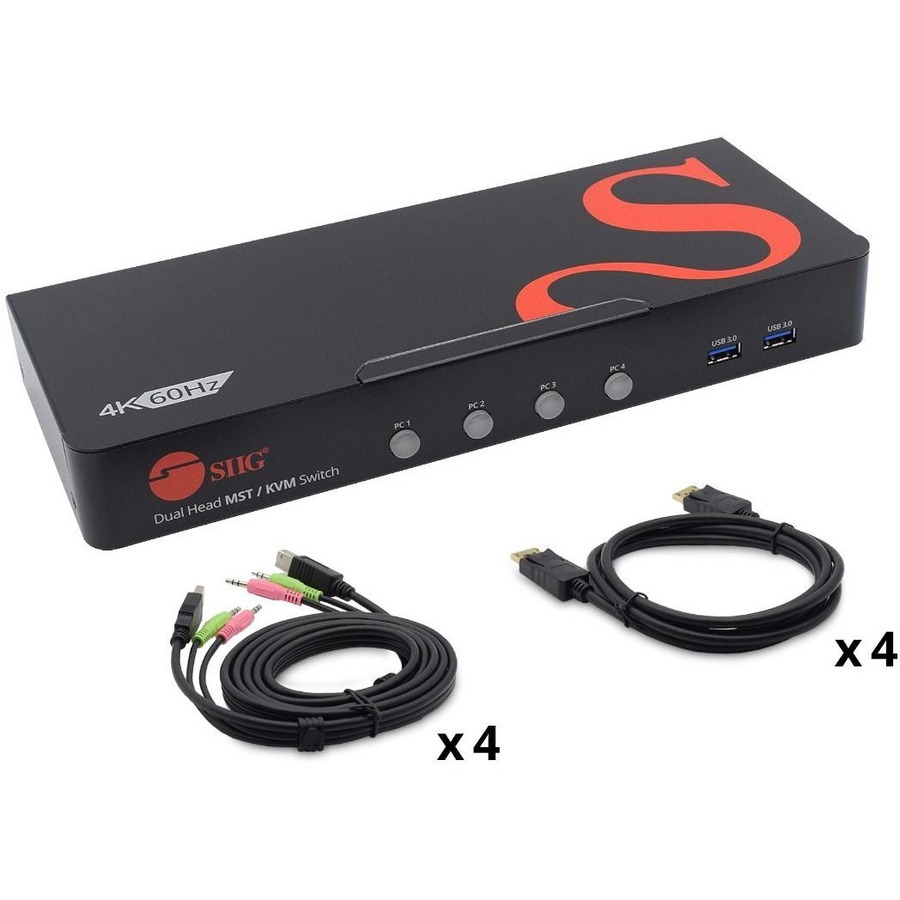

  • 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch
  • 4 x DisplayPort Cable
  • 4 x 3-in-1 Cable (USB-A 3.2 Gen 1 to USB-B+MIC+audio)
  • 1 x DC Power Adapter, 12V/2A
  • 1 x User Reference Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0662774045443
UPC: 662774045443
EAN: 0662774045443
UNSPSC: 43211601
